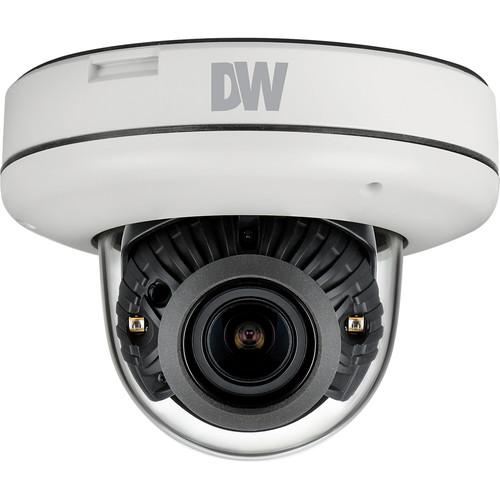

User Manual for Digital Watchdog MEGApix 4MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 4MP Vandal-Resistant Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix 4MP Vandal-Resistant Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the MEGApix 4MP Vandal-Resistant Outdoor Network Dome Camera from Digital Watchdog. This camera features a 1/3" CMOS sensor for 2560 x 1440 resolution video at 30 fps. The 2.8-12mm varifocal lens is equipped with Smart IR to deliver up to 100' of night vision. Additionally, the lens has a wide 87-32° field of view. The built-in microSD/SDHC/SDXC class 10 slot supports cards up to 128GB, which are available for purchase separately. PoE technology simplifies connectivity by transferring power and data through one cable.This device is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. The camera's enclosure is IP66- and IK10-rated making it suitable for outdoor use in areas at high risk of vandalism. - True wide dynamic range, auto white balance, backlight compensation, 3D-DNR, and true day/night modes help improve image quality and visibility
- Programmable privacy zones enable you to select up to 4 areas you don't want recorded
- Smart IR with intelligent camera sync delivers night vision up to 100'
- H.264 and MJPEG dual-streaming
- Alarm notifications are sent via email, FTP server, SMTP, or microSD card recording when event triggers occur
- CleanView hydrophobic dome coating repels water, dust, and grease
- IP66- and IK10-rated aluminum die-cast enclosure that is suitable for outdoor use in areas at high risk of vandalism
UPC: 813379018596 In the Box Digital Watchdog MEGApix 4MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision Torx Wrench Test Monitor Cable Mount Plate 2 x Mount Bolts & Nuts Template Sheet for Installing by Plate Template Sheet for Installing by Bolt & Nut 3 x Screws & Plastic Anchors Waterproof Cap & Gasket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 4MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Sensor | 4 MP 1/3" CMOS | | Effective Pixels (H x V) | 2688 x 1520 | | Resolution | 2560 x 1440 | | Minimum Illumination | Color: f/1.4 (30 IRE): 0.2 lux
B&W: f/1.4 (30 IRE): 0.0 lux | | | | Focal Length | 2.8-12mm, f/1.4 | | Lens Type | P-iris remote auto focus | | IR Range | 100' (30.4 m) Smart IR | | Field of View | 87-32° | | Optical Zoom | 4.2x | | | | Shutter Modes | Auto, manual, anti-flickering | | Shutter Speed | 1/15 to 1/32,000 sec | | 3D-DNR | 0-11 | | Wide Dynamic Range | Off, 2x, 3x | | AGC (Automatic Gain Control) | Yes | | Day and Night | Auto, day (color), night (B&W) | | Programmable Privacy Zones | 4 | | Motion Detection | Yes | | Alarm Notifications | Notifications via email, FTP server, SMTP, or microSD card recording | | Reset Button | Yes | | | | LAN | 1 x 802.3 compliance 10/100 LAN | | Video Compression | H.264, MJPEG | | Resolution | 2560 x 1440 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps | | Frame Rate | Up to 30 fps at all resolutions | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4, IPv6 | | Protocol | ONVIF, TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) | | Security | Password authentication, multi-level user configuration HTTPS (SSL), IP filtering, 802.1x, digest authentication (ID/PW) | | Maximum User Access | 5 | | ONVIF Conformance | Profile S | | Web Viewer | OS: Windows, Mac OS, Linux
Browser: Internet Explorer, Chrome, Firefox, Safari | | Video Management Software | DW Spectrum IPVMS | | Memory Card Slot | 1 x microSD/SDHC/SDXC Class 10 up to 128 GB | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | IK Rating | IK10 | | Certifications | CE, FCC, ROHS | | Power Requirements | 12 VDC, PoE IEEE 802.3af Class 3 | | Power Consumption | AF Working: Max 7.5 W, 625 mA
LED On: 5 W, 416 mA
LED Off: 3.4 W, 283 mA | | Construction Material | Aluminum die-casting | | Dimensions | 4.9 x 3.6" (125 x 92 mm) | | Weight | 1.87 lb (0.85 kg) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 7.4 x 7.3 x 6.9" |
