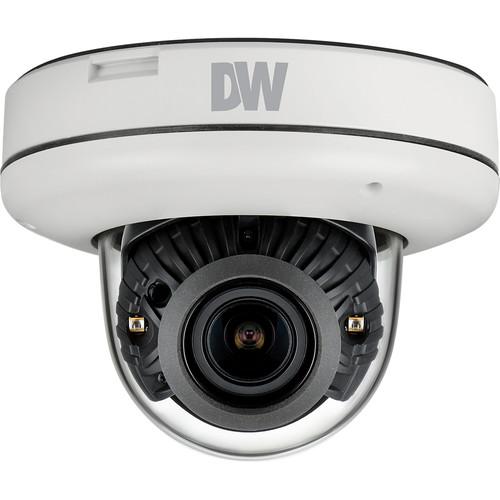

User Manual for Digital Watchdog MEGApix 5MP Outdoor Surface Mount Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 5MP Outdoor Surface
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix 5MP Outdoor Surface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix 5MP Outdoor Surface Mount Network Dome Camera from Digital Watchdog features a 1/1.8" CMOS sensor and 3.6-10mm P-Iris remote auto focus lens for capturing videos at a maximum resolution of 2549 x 1944. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter and built-in IR LEDs with a range of up to100'. Enclosed in an IP66-rated housing, the camera can be used for both indoor and outdoor applications. - 1/1.8" 5MP CMOS image sensor (2549 x 1944, 30 fps)
- 3.6-10mm remote auto focus P-Iris lens
- DWDR (Digital Wide Dynamic Range)
- Triple codecs (H.265, H.264, and MJPEG) with simultaneous dual-streaming function
- Smart IR with Intelligent camera synchronization
- CleanView Hydrophobic dome coating repels water, dust, and grease
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- BLC (Backlight Compensation)
- microSD/SDHC Class 10 card slot for event and continuous recording (card sold separately)
- ONVIF certified, Profile S
- IP66-certified weather-resistant housing
UPC: 813379018565 In the Box Digital Watchdog MEGApix 5MP Outdoor Surface Mount Network Dome Camera with Night Vision Mount Plate Test Monitor Cable Water-Resistant Cap and Gasket Template Sheet for Installing by Bolt and Nut Template Sheet for Installing by Plate Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 5MP Outdoor Surface Mount Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Image Sensor | 1/1.8", 5 MP CMOS sensor | | Total Pixels | H x V: 2592 x 1944 | | Minimum Illumination | Color: 0.14 lux at f/1.5 (30 IRE)
B&W: 0.0 lux at f/1.5 (30 IRE) | | IR Distance | 100' (30.48 m) IR Range | | | | Focal Length | 3.6-10mm, f/1.5 | | Lens Type | P-Iris remote auto focus | | Field of View | 86 to 35° | | Optical Zoom | 2.7x | | | | Shutter Modes | Auto, Manual, Anti-flickering | | Shutter Speed | 1/30 (25) to 1/60,000 sec | | Digital Noise Reduction | Smart DNR, 0 to 11 | | Automatic Gain Control | Auto | | Digital Wide Dynamic (D-WDR) | On, Off | | Day and Night | Auto, Day (color), Night (B&W) | | Alarm Notifications | Notifications via email, FTP server or SD card recording | | | | LAN | 802.3 Compliance 10/100 LAN | | Video Compression | H.265, H.264, MJPEG | | Resolution | 2592 x 1944 / 2592 x 1520 / 2048 x 1536 /1080p / 720p / 1024 x 576 / 640 x 360 / D1 / 4CIF / VGA / CIF / QVGA / QCIF | | Frame Rate | Up to 30 fps at all resolutions | | Streaming Capability | Dual-Stream at different rates and resolutions | | IP | IPv4 | | Protocol | TCP, UDP, IP, HTTP, DHCP, DNS, ICMP, ARP, IPv4 / IPv6 DDNS, NTP, SNMP, Syslog, UPnP, Bonjure, ZeroConf RTP/RTSP, ONVIF Profile S, and Genetec Protocol | | Security | Password authentication and multi-level user configuration | | Maximum User Access | 5 | | Web Viewer | OS (Operating System): Windows, Mac, and Linux
Browser: Internet Explorer, Chrome, Firefox, and Safari | | Video Management Software | DW Spectrum IPVMS | | Memory Slots | microSD/SDHC/SDXC card (card sold separately) | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | Certifications | CE, FCC, RoHS | | | | Power Requirement | 12 VDC, PoE (IEEE 802.3af Class 3) | | Power Consumption | AF Working: Maximum 7.5 W, 625 mA
LED On: 7.2 W, 600 mA
LED Off: 5 W, 416 mA | | | | Material | Aluminum die-casting | | Dimensions | 4.9 x 3.6" (125 x 92 mm) | | Weight | 1.87 lb (0.85 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 7.4 x 7.4 x 6.9" |
