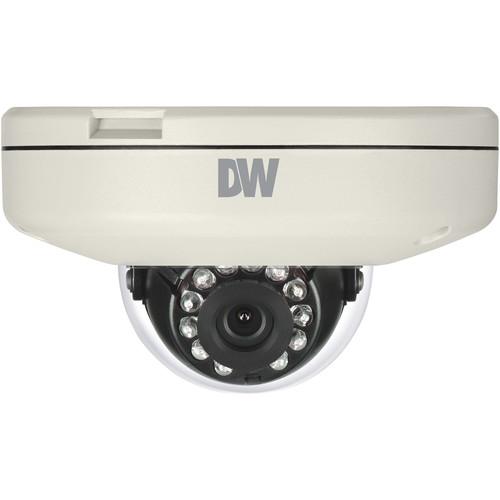

User Manual for Digital Watchdog MEGApix CaaS DWC-MF4WI6C6 4MP Outdoor Network Dome Camera with 64GB Storage & Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix CaaS DWC-MF4WI6C6 4MP
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix CaaS DWC-MF4WI6C6 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix CaaS DWC-MF4WI6C6 4MP Outdoor Network Dome Camera with 64GB Storage & Night Vision from Digital Watchdog has a 4MP 1/3" CMOS image sensor to capture 2560 x 1440 resolution video at up to 30 fps. Its 6mm fixed lens delivers a 51° field of view. Smart IR technology provides up to 50' of night vision. A 64GB microSD card is integrated into the camera for local recording. Additionally, the camera is pre-loaded with a DW Spectrum IPVMS video management software license, allowing the device to function without requiring additional server hardware. PoE technology simplifies installation by transferring power and data over a single cable.
This camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for use in outdoor areas at risk of vandalism. - No server hardware required
- DW Spectrum IPVMS video management software license included
- Automatic installation and licensing with first power on
- Supports up to 12 MEGApix CaaS cameras
- PoE and VDC power, DC power adapter available separately
- H.264 and MJPEG codecs with simultaneous dual stream
- Multi streaming CBR/VBR at H.264
- Mechanical IR cut filter enables true day and night functionality
- Smart IR with intelligent camera sync provides an IR range up to 50'
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- 120 dB wide dynamic range
- Shutter modes include auto, manual, anti-flicker, and slow shutter
- 100 kb/s to 10 Mb/s video bit rate
- Dual recording option with Digital Watchdog's Blackjack NAS, available separately
- Compatible with Windows, Mac OS X, Linux, Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- IP66- and IK10-rated enclosure that is suitable for use in outdoor areas at risk of vandalism
- CE, FCC, and RoHS certified
UPC: 813379019951 In the Box Digital Watchdog MEGApix CaaS DWC-MF4WI6C6 4MP Outdoor Network Dome Camera with 64GB Storage & Night Vision Torx Wrench Template Sheet for Installing by Bolt & Nut Template Sheet for Installing by Plate Test Monitor Cable 2 x Mount Bolts & Nuts Mount Plate 3 x Screws & Plastic Anchors Waterproof Cap & Gasket Moisture Absorber & Absorber Guide Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix CaaS DWC-MF4WI6C6 4MP Outdoor Network Dome Camera with 64GB Storage & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix CaaS Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 6mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 51° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.41 Lux
B&W: 0 Lux | | Shutter Speed | 1/32000 to 1/30 Seconds | | | | Streaming Resolution | 2560 x 1440 at 30 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps
800 x 600 at 30 fps
768 x 432 at 30 fps
704 x 480 at 30 fps
640 x 480 at 30 fps
352 x 240 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IPv4/v6, NTP, ONVIF Profile S, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, Zero Configuration | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | Linux OS Support | Yes | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 50' / 15.24 m | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | 64 GB | | External Storage Options | Cloud, NAS | | Power Source | DC, PoE 802.3af (15 W) DC power adapter not included | | Power Consumption | 5.6 W
7.4 W 12 VDC: Max 5.6 W
PoE: Max 7.4 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
