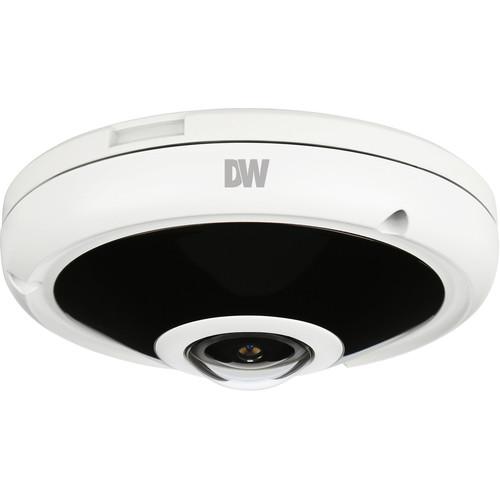

User Manual for Digital Watchdog MEGApix CaaS DWC-PVF5M1TIRC1 5MP Outdoor Network Fisheye Dome Camera with 128GB Storage & Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix CaaS DWC-PVF5M1TIRC1 5MP
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix CaaS DWC-PVF5M1TIRC1 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix CaaS DWC-PVF5M1TIRC1 5MP Outdoor Network Fisheye Dome Camera with 128GB Storage & Night Vision from Digital Watchdog has a 5MP 1/1.8" CMOS image sensor to capture 2592 x 1944 resolution video at up to 30 fps. Its 1.55mm fixed lens delivers a 360° hemispheric fisheye field of view and a 180° panoramic view. Smart IR technology provides up to 55' of night vision. A 128GB microSD card is integrated into the camera for local recording. Additionally, the camera is pre-loaded with a DW Spectrum IPVMS video management software license, allowing the device to function without requiring additional server hardware. PoE technology simplifies installation by transferring power and data over a single cable.
This camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for use in outdoor areas at risk of vandalism. - Offers 360° hemispheric fisheye and 180° panoramic views with edge-to-edge image clarity
- No server hardware required
- DW Spectrum IPVMS video management software license included
- Automatic installation and licensing with first power on
- Supports up to 12 MEGApix CaaS cameras
- Offers dewarping functionality
- PoE and VDC power, DC power adapter available separately
- Mechanical IR cut filter enables true day and night functionality
- H.264 and MJPEG codecs with simultaneous dual streams
- Multi streaming CBR/VBR at H.264
- Smart IR with intelligent camera sync provides an IR range up to 55'
- Programmable privacy zones enable you to select up to 4 areas you don't want recorded
- Digital wide dynamic range
- Shutter modes include auto, manual, and anti-flicker
- 100 kb/s to 10 Mb/s video bit rate
- Dual recording option with Digital Watchdog's Blackjack NAS, available separately
- Compatible with Windows, Mac OS X, Linux, Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- IP66- and IK10-rated enclosure that is suitable for use in outdoor areas at risk of vandalism
- CE, FCC, and RoHS certified
UPC: 813379010057 In the Box Digital Watchdog MEGApix CaaS DWC-PVF5M1TIRC1 5MP Outdoor Network Fisheye Dome Camera with 128GB Storage & Night Vision Torx Wrench 3 x Screws & Plastic Anchors 2 x Mount Bolts & Nuts Mount Plate Template Sheet for Installing by Bolt & Nut Template Sheet for Installing by Plate Waterproof Cap & Gasket Moisture Absorber & Installation Guide Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix CaaS DWC-PVF5M1TIRC1 5MP Outdoor Network Fisheye Dome Camera with 128GB Storage & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix CaaS Specs | | | Sensor | 5 MP 1/1.8" CMOS | | Focal Length | 1.55mm | | Maximum Aperture | f/2.5 | | Lens Field of View | Horizontal: 360° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.369 Lux
B&W: 0 Lux | | Shutter Speed | 1/32000 to 1/30 Seconds | | | | Streaming Resolution | 2592 x 1944 at 30 fps
640 x 480 at 30 fps
320 x 240 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IPv4/v6, NTP, ONVIF Profile S, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, Zero Configuration | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | Linux OS Support | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 55' / 16.76 m | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | 128 GB | | External Storage Options | Cloud, NAS | | Power Source | DC, PoE 802.3af (15 W) DC power adapter not included | | Power Consumption | 6.5 W
3.6 W LED On: 6.5 W
LED Off: 3.6 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | H: 1.9 x W: 4.9" / H: 48.3 x W: 124.5 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.615 lb | | Box Dimensions (LxWxH) | 6.65 x 6.65 x 5.25" |
