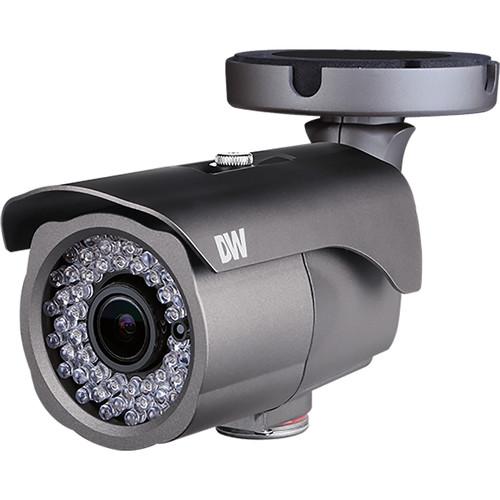

User Manual for Digital Watchdog MEGApix DWC-MB44WIA 4MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix DWC-MB44WIA 4MP Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix DWC-MB44WIA 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix DWC-MB44WI from Digital Watchdog uses a 1/3" CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. Smart IR provides up to 120' of night vision. The 2.8-12mm motorized varifocal lens delivers an 87-32° field of view to cover a wide area. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot supports microSD/SDHC/SDXC cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies installation by transferring power and data over a single cable.
This bullet camera is ONVIF-compliant for profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated tamper-resistant aluminum enclosure that is suitable for outdoor use. - 2.8-12mm motorized varifocal precise iris lens
- Mechanical IR cut filter enables true day and night functionality
- 120' Smart IR with intelligent camera sync
- H.265, H.264, and MJPEG video compression with simultaneous dual streaming
- Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
- 120 dB wide dynamic range
- Shutter modes include auto, manual, anti-flicker, and slow shutter
- Programmable privacy zones allow you to select up to 16 areas you don't want recorded
- PoE and 12 VDC power (DC power adapter available separately)
- Audio input port and output port
- Alarm sensor input and relay output
- Alarm notifications via email, FTP server, alarm output activation, or microSD card recording
- DW Spectrum IPVMS video management software
- Compatible with Windows XP, Vista, 7 & 2000, Mac OS, Linux, Internet Explorer, Chrome, Firefox, and Safari
- IP66-rated enclosure that is suitable for outdoor use
- CE, FCC, and RoHS certified
UPC: 813379018664 In the Box Digital Watchdog MEGApix DWC-MB44WIA 4MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Varifocal Lens 4 x Screws 4 x Plastic Anchors Torx Wrench Test Monitor Cable Template Sheet Waterproof Cap & Gasket Sunshield Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix DWC-MB44WIA 4MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.2x | | Lens Field of View | Horizontal: 87 to 32° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.2 Lux
B&W: 0 Lux | | Shutter Speed | 1/32,000 to 1/15 Seconds | | | | Streaming Resolution | 2560 x 1440 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711 | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, Zero Configuration | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, Vista, 7, 2000 | | Linux OS Support | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 120' / 36.58 m | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 11 W
PoE: 12.9 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | Dimensions | H: 3.8 x W: 3.8 x L: 8.9" / H: 96.7 x W: 96.7 x L: 225.3 mm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 12.3 x 5.5 x 5.1" |
