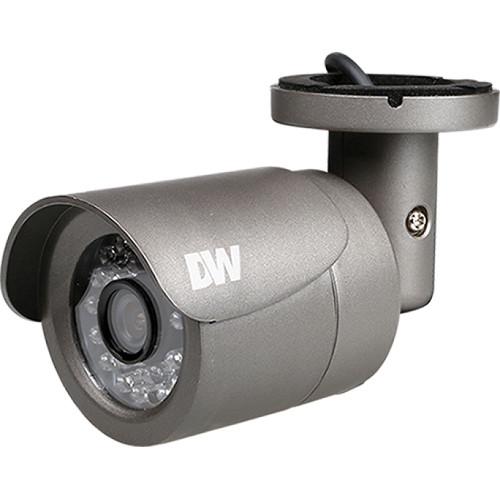

User Manual for Digital Watchdog MEGApix DWC-MB721M4TIR 2.1MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix DWC-MB721M4TIR 2.1MP Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix DWC-MB721M4TIR 2.1MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix DWC-MB721M4TIR 2.1MP Outdoor Network Bullet Camera from Digital Watchdog uses a 1/2.7" CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Smart IR provides up to 60' of night vision. The camera's 4mm fixed lens delivers an 88° field of view. An onboard memory card slot supports microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera is compliant with ONVIF profile S, making it compatible with a wide range of surveillance devices. Its tamper-resistant aluminum housing is rated IP66 for outdoor use. - Mechanical IR cut filter enables true day and night functionality
- 60' Smart IR with intelligent camera sync
- Shutter modes include auto, manual, anti-flicker, and slow shutter
- H.264 and MJPEG video compression with simultaneous streaming
- True wide dynamic range (120 dB)
- 16 programmable privacy masks
- Alarm notifications via email, FTP server, or microSD card recording
- Compatible with Windows, Mac OS, Linux, iOS, Android, Internet Explorer, Chrome, Firefox, and Safari
- PoE and 12 VDC power (DC power adapter available separately)
- CE, FCC, and RoHS certified
UPC: 813379013324 In the Box Digital Watchdog MEGApix DWC-MB721M4TIR 2.1MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens Limited 5-Year Warranty Brochure PDF 498.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix DWC-MB721M4TIR 2.1MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MB721M4TIR Specs | | | Sensor | 2.1 MP 1/2.7" CMOS | | Focal Length | 4mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 88° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.41 Lux
B&W: 0 Lux | | Shutter Speed | 1/8000 to 1/30 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps (10 Mb/s H.264) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | Linux OS Support | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 60' / 18.29 m | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | PoE: 7.3 W
DC: 5.6 W | | Material of Construction | Aluminum | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions | H: 2.7L: 6.4" / H: 67.5L: 163.0 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.32 lb | | Box Dimensions (LxWxH) | 7.95 x 4.25 x 3.25" |
