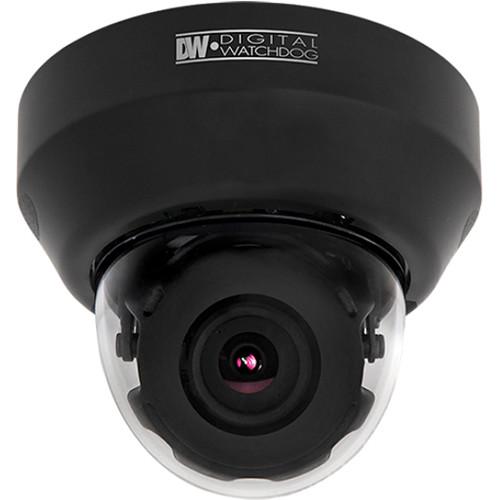

User Manual for Digital Watchdog MEGApix DWC-MD421D 2.1MP Snapit Triple Codec Indoor IP Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix DWC-MD421D 2.1MP Snapit
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix DWC-MD421D 2.1MP Snapit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The black MEGApix DWC-MD421D 2.1MP Snapit Triple Codec Indoor IP Dome Camera (NTSC) from Digital Watchdog provides 1080p resolution images at 30 frames per second. The camera’s advanced technologies like Electronic Day and Night, 3D-DNR, and Double Shutter WDR delivers high-quality images in various environments. Its Power over Ethernet, combined with the Snapit Housing, allows you to view and control the camera from other locations. - Compliant with ONVIF standards for increased flexibility and reduced total cost
- Provides clear 1080p HD resolution video images at 30 frames per second
- Triple codecs (H.264, MJPEG, MPEG4) with dual-stream
- 3.0 to 10.5mm auto focus P-Iris lens
- 8x digital zoom, 3x optical zoom
- Electronic Day and Night automatically switches to night mode when light diminishes below 0.01 lux to provide high-quality B&W video images
- Class 3 Power over Ethernet (PoE) switch simplifies installation by connecting both power and network through a single cable
- Wide View covers wide range of view (81°) and minimizes blind spots
- Local SDHC card remote backup
- Double Shutter WDR (Wide Dynamic Range)
- 3D-DNR (3D Digital Noise Reduction)
- Programmable privacy zones (30) & Motion Detection
UPC: 813379012365 In the Box Digital Watchdog MEGApix DWC-MD421D 2.1MP Snapit Triple Codec Indoor IP Dome Camera (NTSC, Black) Limited 2-Year Warranty Brochure PDF 424.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix DWC-MD421D 2.1MP Snapit Triple Codec Indoor IP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MD421DB Specs | | | Image Sensor | 1/2.8" CMOS Sensor | | Minimum Illumination | F1.6 (30IRE): 0.5 lux (color)
F1.6 (30IRE): 0.01 lux [B&W] | | Resolution | 2.1 MP, 1080p (1920 x 1080) | | Total Pixels (H x V) | 2,016 X 1,108 | | | | Focal Length | 3.0 to 10.5 mm | | Digital Zoom | 8x | | Optical Zoom | 5x | | Lens Type | Auto Focus | | | | Frame Rate | Up to 30 frames per second at all resolutions on all streams | | LAN | 802.3 Compliance 10/100 LAN | | Number of Simultaneous Users | 4 (maximum) | | Maximum User Access | 20 users | | ONVIF Conformance | Profile S | | Protocols | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast | | SD Card | Up to 24 hours to Micro SD Card (4 to 32 GB) for network loss emergency recording only (card not included) | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4, IPv6 | | Video Compression Format | H.264, MPEG4, MJPEG (Super fine to low) | | Video Management Software | DW Spectrum, Pivot CMS, DW's VMS | | Web Viewer | OS: Windows XP / Vista / 7, MAC OS
Browser: Internet Explorer, Chrome, Firefox, and Safari | | | | Brightness | 0 to 19 | | AGC (Automatic Gain Control) | 0 to 20 | | Shutter Modes | Auto/ Manual | | Digital Slow Shutter | Off/ 2x / 3x / 4x | | DNR | Off/ low / middle / high | | BLC | Off, On | | Wide Dynamic Range | Off / On / Level 0 to 9 | | Day & Night | Auto, Day (Color), Night (B&W) | | Lens | Manual / DC | | Chroma | 0t o 20 (Color Quality: Hue, & saturation settings) | | Sharpness | 0 to 10 | | Flip / Mirror | Off/ On | | Alarm Notification | Notifications via E-mail | | Privacy Zone | Off/ On (30 programmable zones) | | Motion Detection | Low/ Middle/ High | | Sensor | 1 Input/ 1 Output | | Resolution | 1920 x 1080 (16:9) to 320 x 240 (4:3) | | | | Operating Humidity | < 90% (non-condensing) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -20.2 to 131°F (-29 to 55°C) | | Other Specifications | CE, FCC, RoHS | | | | Power Requirement | 12 VDC, PoE (IEEE802.3af Class 2) | | Power Consumption | 7.2 W, 600 mA | | | | Housing Material | Plastic dome | | Housing Type | Snapit Indoor Dome | | Dimensions | 4.2 x 3.8" (10.8 x 9.7 cm) | | Weight | 8.2 oz (232.5 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.3 x 7.2 x 5.7" |
