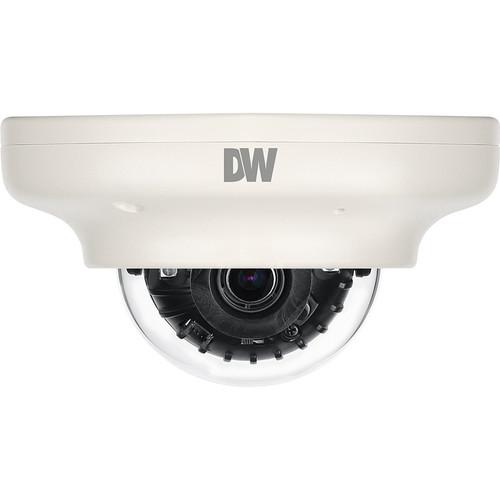

User Manual for Digital Watchdog MEGApix DWC-MV72i28V 1080p Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix DWC-MV72i28V 1080p Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix DWC-MV72i28V 1080p Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix DWC-MV72i28V 1080p Outdoor Network Dome Camera from Digital Watchdog uses a 1/2.7" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Smart IR provides up to 50' of night vision. The camera's 2.8mm fixed lens delivers a 109° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera is compliant with ONVIF profile S, making it compatible with a wide range of surveillance devices. The camera's aluminum enclosure is IP67 rated for outdoor use. - Mechanical IR cut filter enables true day and night functionality
- 50' Smart IR with intelligent camera sync
- H.264 and MJPEG video compressions with simultaneous streaming
- Automatic gain control (64 dB max)
- White balance modes include auto indoor, auto outdoor, push, manual, and hold
- Compatible with Windows 7 or higher, Internet Explorer, Chrome, and Firefox
- CE, FCC, and RoHS certified
UPC: 813379017261 In the Box Digital Watchdog MEGApix DWC-MV72i28V 1080p Outdoor Network Dome Camera with Night Vision Torx Wrench 2 x Mount Bolts and Nuts Template Sheet for Installing by Bolt and Nut 2 x Screws and Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix DWC-MV72i28V 1080p Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Sensor | 2.1 MP 1/2.7" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 109° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 1.4 Lux
B&W: 0 Lux | | Shutter Speed | 1/10,000 to 1/30 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Supported Protocols | DDNS, DHCP, DNS, HTTP, IPv4/v6, NTP, RTP, RTSP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8, 8.1, 10 | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 50' / 15.24 m | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 3 W | | Material of Construction | Aluminum | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP67 | | Dimensions |
