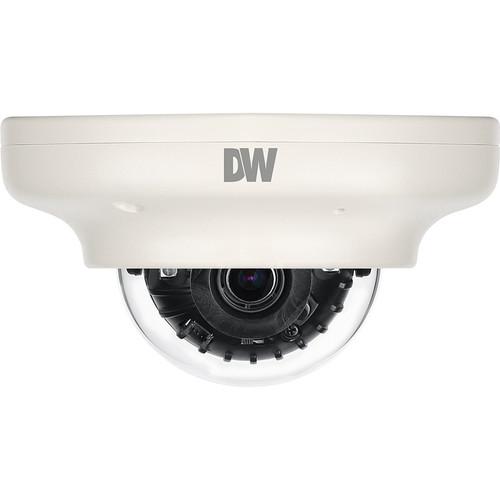

User Manual for Digital Watchdog MEGApix DWC-MV72WI4A 2.1MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix DWC-MV72WI4A 2.1MP Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix DWC-MV72WI4A 2.1MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Keep a watchful eye on your property with the MEGApix DWC-MV72WI4A 2.1MP Outdoor Network Dome Camera with Night Vision from Digital Watchdog. This camera has a 2.1 MP 1/2.7" CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Its 4mm fixed lens features Smart IR LEDs that deliver up to 50' of night vision, and a wide 88° field of view. Audio recording is possible thanks to a built-in microphone. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. This device is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. Its enclosure is IP64- and IK10-rated for outdoor use in areas at high risk of vandalism. - True wide dynamic range, backlight compensation, 3D-DNR, and auto white balance help improve image quality and visibility
- Smart IR with intelligent camera sync delivers an IR range of up to 50'
- Mechanical IR cut filter for true day and night functionality
- Programmable privacy zones enable you to select up to 4 areas you don't want recorded
- H.264 and MJPEG dual streaming
- Security features include password authentication, multi-level user configuration HTTPS (SSL), IP filtering, 802.1x, and digest authentication (ID/PW)
- Alarm notifications via email or FTP server
- Compatible with Windows, Mac OS X, and Linux
- IP64- and IK10-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism
UPC: 813379019296 In the Box Digital Watchdog MEGApix DWC-MV72WI4A 2.1MP Outdoor Network Dome Camera with Night Vision Mount Bolt & Nut Torx Wrench Waterproof Cap & Gasket Template Sheet for Installing by Bolt & Nut 2 x Screws & Plastic Anchors Test Monitor Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix DWC-MV72WI4A 2.1MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MV72WI4A Specs | | | Image Sensor | 2.1 MP 1/2.7" CMOS | | Effective Pixels (H x V) | 1928 x 1088 | | Minimum Illumination | Color: f/2.6 (30 IRE): 0.39 lux
B&W: f/2.6 (30 IRE): 0 lux | | | | Focal Length | 4mm, f/2.6 | | Lens Type | Fixed | | Smart IR | Yes | | IR Range | 50' (15.2 m) | | Field of View | 88° | | | | Input | Built-in microphone | | Compression | G.711 | | | | Shutter Modes | Auto, manual, anti-flickering | | Shutter Speed | 1/15 to 1/32,000 seconds | | Slow Shutter | Off, 2x, 3x, 5x, 6x, 7.5x, 10x | | Motion Detection | Yes | | 3D-DNR | 0 to 11 | | AGC (Automatic Gain Control) | 0 to 44 dB | | Auto White Balance | Yes | | Wide Dynamic Range | 120 dB: Off, 2x | | Backlight Compensation | Yes | | Mechanical IR Cut Filter | Yes | | Day and Night | Auto, day (color), night (B&W) | | Programmable Privacy Zones | 4 | | Alarm Notifications | Notifications via email or FTP server | | | | LAN | 802.3 10/100Base-T | | Video Compression Format | H.264, MJPEG | | Resolution | 1920 x 1080 to 352 x 240 at 30 fps | | Frame Rate | Up to 30 fps at all resolutions | | Video Bit Rate | 100 kbps to 10 Mbps
Multi-rate for preview and recording | | Bit Rate Control | Multi streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | | Streaming Capability | Dual stream at different rates and resolutions | | IP | IPv4 | | Protocols | ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/ v3(MIB-2) | | Security | Password authentication, multi-level user configuration HTTPS (SSL), IP filtering, 802.1x, digest authentication (ID/PW) | | Maximum User Access | 10 users | | ONVIF Conformance | Profile S | | Supported Operating Systems | Windows, Mac OS X, Linux | | Supported Web Browsers | Internet Explorer, Chrome, Firefox, Safari | | Video Management Software | DW Spectrum IPVMS | | | | Power Requirement | PoE IEEE 802.3af Class 2 | | Power Consumption | 5 W max | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP64 | | IK Rating | IK10 | | Certifications | CE, FCC, RoHS | | Construction Material | Aluminum die casting | | Dimensions | 4.13 x 2.38" (105 x 60.7 mm) | | Weight | 0.95 lb (350 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.3 x 5.3 x 4.9" |
