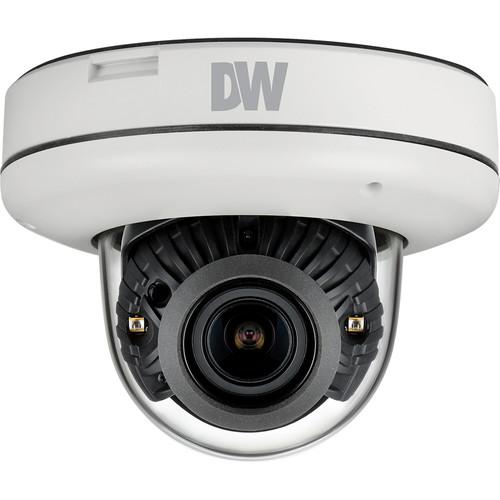

User Manual for Digital Watchdog MEGApix DWC-MV82WiA 2.1MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix DWC-MV82WiA 2.1MP Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix DWC-MV82WiA 2.1MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix DWC-MV82WiA 2.1MP Outdoor Network Dome Camera with Night Vision from Digital Watchdog captures 1080p video at up to 30 fps thanks to its 2.1MP 1/2.7" CMOS sensor. It features a mechanical IR cut filter with Smart IR technology and IR LEDs to produce clear images of objects up to 70' away in the dark. The camera's 2.8-12mm varifocal lens provides a 4.2x optical zoom and a wide 102-32° field of view to monitor large areas, depending on placement. Autofocus helps the lens quickly adjust to objects at varied distances.
Its CleanView hydrophobic dome coating helps to repel water, dust, and grease to provide clearer images and accurate video. PoE technology (Power-over-Ethernet) simplifies installation by providing both power and network connection through a single Ethernet cable. This camera is ONVIF-compliant for a wide range of compatibile devices and is IP66-rated for outdoor use. - 2.1MP 1/2.7" CMOS sensor capture 1920 x 1080 resolution video at up to 30 fps
- H.264 and MJPEG compression codes with simultaneous streaming
- 2.8-12mm varifocal lens with autofocus provides a 106-32° field of view
- IR LEDs for night vision up to 70'
- Mechanical IR cut filter with Smart IR technology
- AGC (Auto Gain Control), BLC (Back Light Compensation), AWB (Auto White Balance), and motion detection
- ONVIF Profile S compliant
UPC: 813379018039 In the Box Digital Watchdog MEGApix DWC-MV82WiA 2.1MP Outdoor Network Dome Camera with Night Vision Mounting Plate Torx Wrench Mounting Templates Mounting Hardware Limited 5-Year Warranty Guides & Manuals rtyawyxqeuezaduyzx Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix DWC-MV82WiA 2.1MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Digital Watchdog MEGApix DWC-MV82WiA 2.1MP Outdoor Network Dome Camera with Night Vision can be downloaded in PDF format at the link stated below.
Technical parametersDigital Watchdog DWC-MV82WIA Specs | | | Image Sensor | 2.1 MP 1/2.7" CMOS sensor | | Total Pixels | 1928 x 1088 | | Minimum Illumination | Color: 0.12 lux, f/1.4 (30 IRE)
B&W: 0 lux, f/1.4 (30 IRE) | | | | Lens | 2.8-12mm varifocal lens | | Control | P-iris remote autofocus | | Aperture | f/1.4 | | IR Range | 70' (21.3 m) | | Field of View | 106-32° | | Zoom | 4.2x optical zoom | | | | Shutter Modes | Auto, manual, anti-flickering | | Shutter Speed | 1/15 to 1/32000 sec | | Digital Noise Reduction | 3D-DNR (0-11) | | AGC (Automatic Gain Control) | Auto | | Gamma | User, 0.45-1.00 | | Wide Dynamic Range | On, off | | Day and Night | Auto, day (color), night (B&W) | | Privacy Zone | 4 programmable | | Alarm Notifications | Notifications via email, FTP server, or SD card recording | | Recording Schedule | Schedule, event rules, continuous | | | | LAN | 802.3 10/100base-T | | Video Compression | H.264 and MJPEG | | Resolution | H.264: 1920 x 1080 to CIF
MJPEG: 1280 x 720 to CIF | | Frame Rate | Up to 30 fps at all resolutions | | Streaming Capability | Dual streaming at different frame rates and resolutions | | IP | IPv4 | | Protocol | ONVIF, TCP/IP, UDP, RTP/RTSP (TCP/UDP), NTP, HTTP, DNS, DDNS, DHCP, FTP, SMTP, ICMP | | Security | Password authentication, multi-level user configuration | | Maximum User Access | 5 users | | ONVIF Conformance | ONVIF Profile S | | Web Viewer | OS: Windows, Mac, Linux
Browser: Internet Explorer, Google Chrome, Firefox, Safari | | Video Management Software | DW Spectrum IPVMS, Pivot CMS | | microSD Card Slot | Supports microSD/SDHC/SDXC up to 128 GB (available separately) | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | Certifications | CE, FCC, RoHS | | | | Power Requirements | 12 VDC, PoE IEEE 802.3af Class 3 | | Power Consumption | Autofocus Working: 7.5 W, 625 mA
LED Off: 2.5 W, 208 mA
LED On: 4.2 W, 350 mA | | | | Material | Aluminum die-casting | | Dimensions | 4.9 x 3.6" (125 x 92 cm) | | Weight | 1.87 lb (0.85 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 7.3 x 7.3 x 6.7" |
