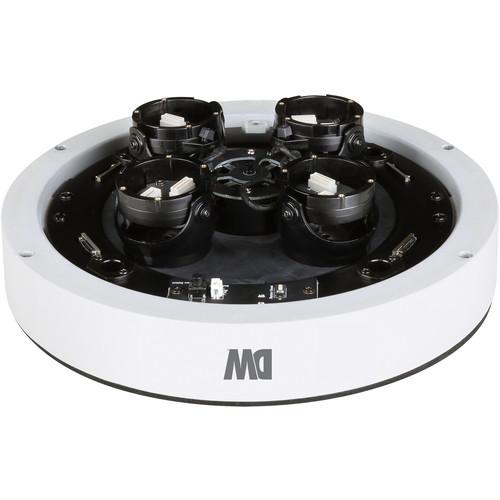

User Manual for Digital Watchdog MEGApix Flex DWC-PVX16W 16MP Multi-Sensor Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix Flex DWC-PVX16W 16MP
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix Flex DWC-PVX16W 16MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The DWC-PVX16W from Digital Watchdog uses four 1/3" 4MP CMOS sensors to capture 16MP resolution video in total at 30 fps. A mechanical IR cut filter enables day and night functionality. Two-way audio communication is possible thanks to audio I/O ports. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB. microSD cards are available for purchase separately. PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This multi-sensor camera is ONVIF-compliant for profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated, tamper-resistant enclosure suitable for outdoor use. - Flexible sensor positioning with magnets
- Lens modules (maximum 4, available separately) of varying focal lengths can be used together
- 3-axis gimbal tilt and rotation for adjusting field of view with endless rotation and up to 60° tilting per sensor
- 360 and 180° panoramic views
- Image alignment and stitching
- Mechanical IR cut filter for day and night modes
- H.264 and MJPEG video compression with simultaneous dual streaming
- Triple streaming at different rates and resolutions
- 120 dB wide dynamic range
- 16 programmable privacy masks
- Gigabit Ethernet interface
- Alarm sensor input and relay output
- Compatible with Windows, Mac OS, Linux, Internet Explorer, Chrome, Firefox, and Safari
- DW Spectrum IPVMS video management system
- IP66-rated enclosure suitable for outdoor use
- FCC, CE, and RoHS certified
UPC: 813379014109 In the Box Digital Watchdog MEGApix Flex DWC-PVX16W 16MP Multi-Sensor Outdoor Network Dome Camera (No Lens) PoE Injector Template Sheet Torx Wrench Waterproof Cap & Gasket 2 x Moisture Absorber Absorber Guide Test Video Cable 4 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix Flex DWC-PVX16W 16MP Multi-Sensor Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Flex Specs | | | Sensor | 4 x 4 MP 1/3" CMOS | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.41 Lux | | Shutter Speed | 1/32,000 to 1/15 Seconds | | | | Streaming Resolution | 2560 x 1440 at 30 fps (10 Mb/s ) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711 | | Built-In Mic | No | | External Audio Input | RCA | | Built-In Speaker | No | | External Audio Output | RCA | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | None | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | 18 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | Dimensions |
