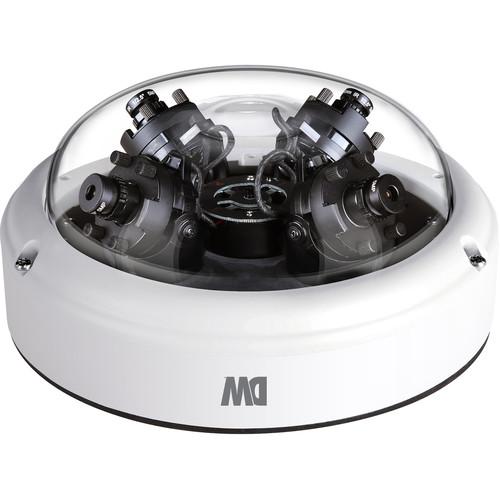

Product description The DWC-PVX16W4 from Digital Watchdog uses four 1/3" 4MP CMOS sensors to capture 16MP resolution video in total at 30 fps. A mechanical IR cut filter enables day and night functionality. Four 4mm fixed lenses deliver an 81° horizontal field of view. Two-way audio communication is possible thanks to audio I/O ports. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB. microSD cards are available for purchase separately. PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

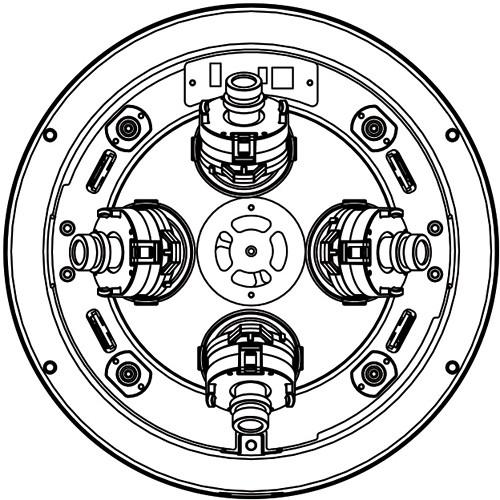

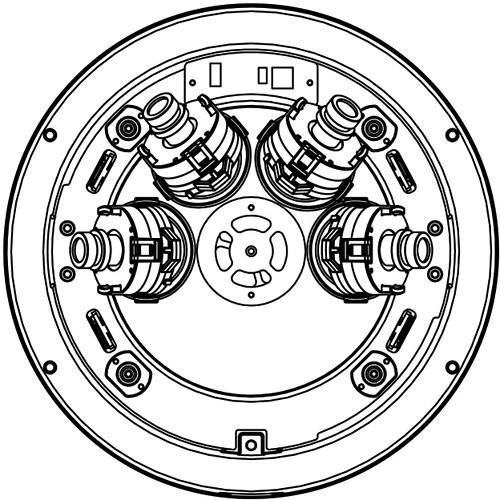

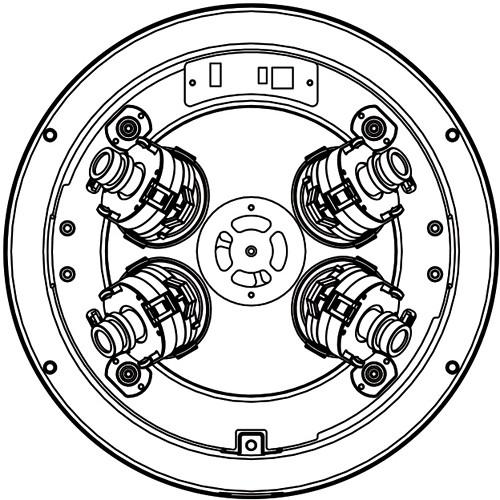

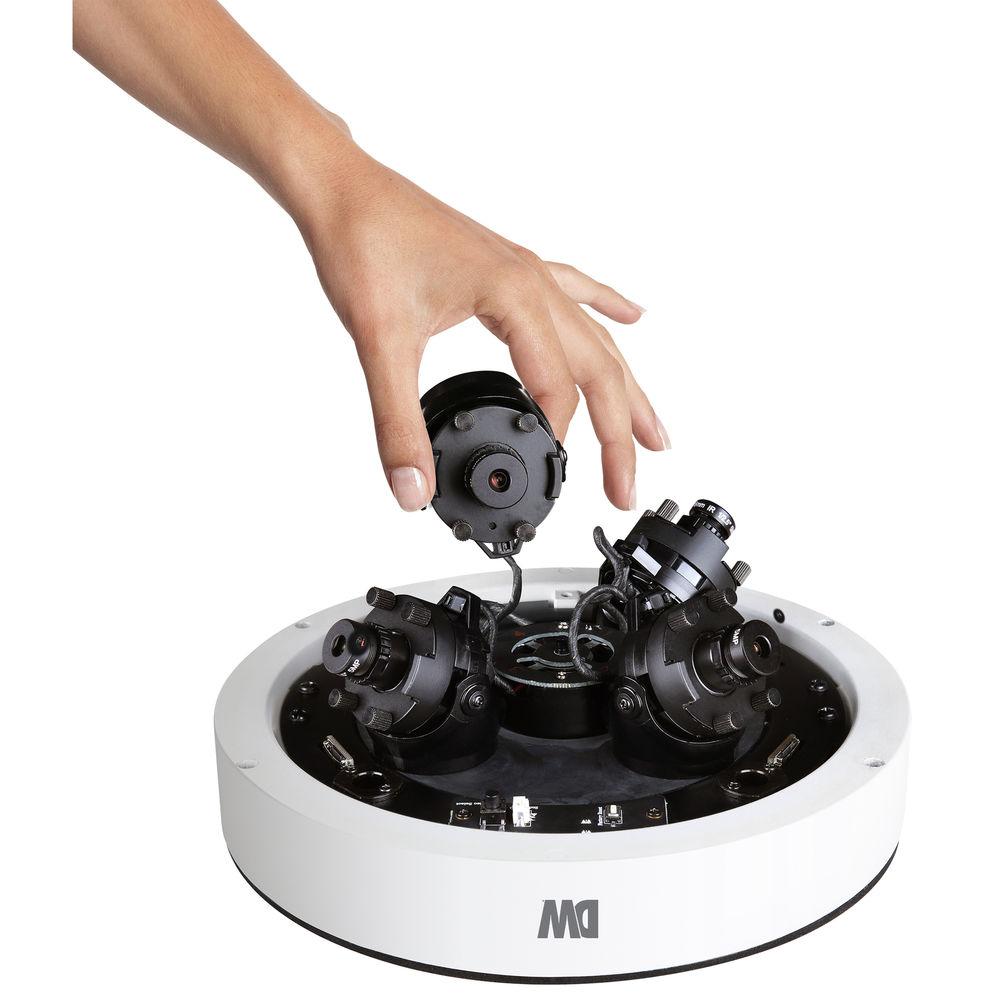

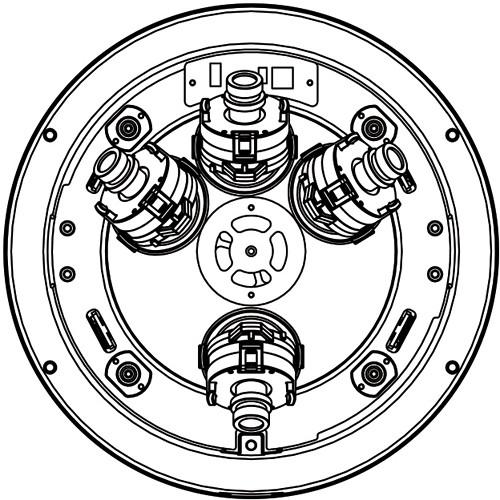

This multi-sensor camera is ONVIF-compliant for profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated, tamper-resistant enclosure suitable for outdoor use. - Flexible sensor positioning with magnets

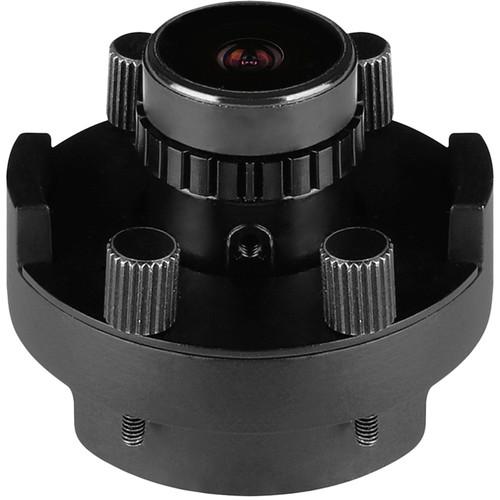

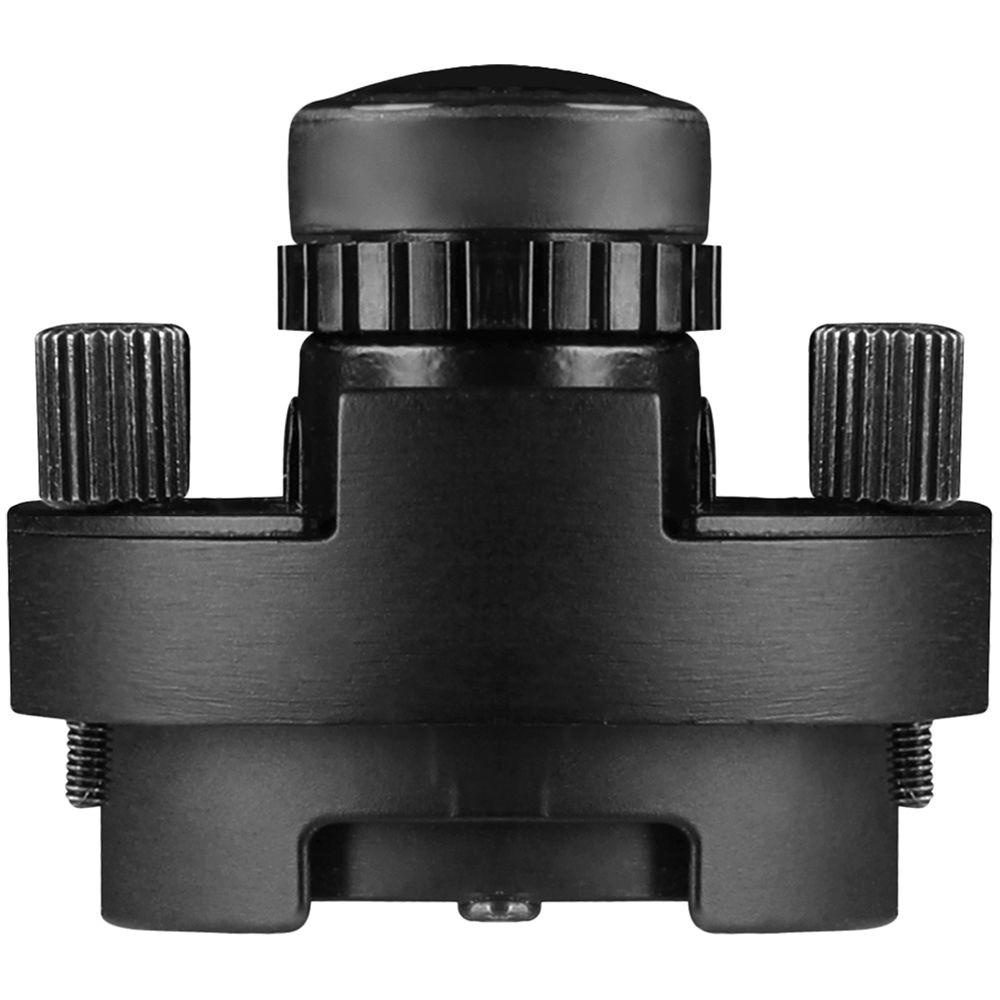

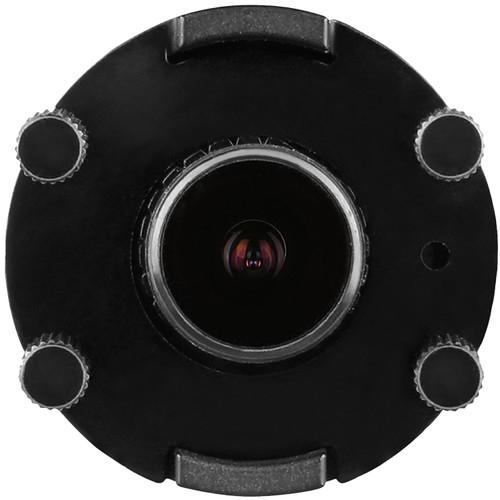

- Lens modules (maximum 4, available separately) of varying focal lengths can be used together
- 3-axis gimbal tilt and rotation for adjusting field of view with endless rotation and up to 60° tilting per sensor

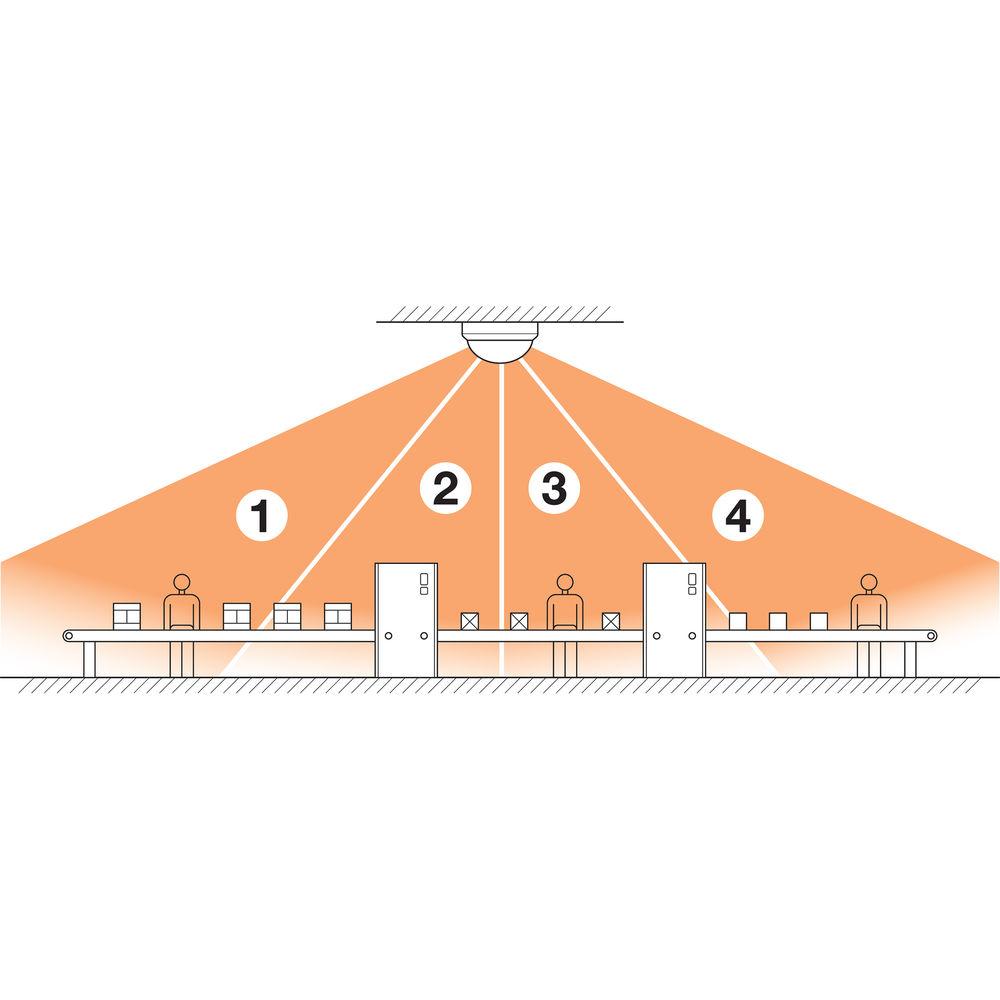

- 360 and 180° panoramic views
- Image alignment and stitching
- Mechanical IR cut filter for day and night modes
- H.264 and MJPEG video compression with simultaneous dual streaming
- Triple streaming at different rates and resolutions
- 120 dB wide dynamic range
- 16 programmable privacy masks
- Gigabit Ethernet interface
- Alarm sensor input and relay output
- Compatible with Windows, Mac OS, Linux, Internet Explorer, Chrome, Firefox, and Safari
- DW Spectrum IPVMS video management system
- IP66-rated enclosure suitable for outdoor use
- FCC, CE, and RoHS certified
UPC: 813379011177 In the Box Digital Watchdog MEGApix Flex DWC-PVX16W4 16MP Multi-Sensor Outdoor Network Dome Camera with 4 x 4mm Lenses PoE Injector Template Sheet Torx Wrench Waterproof Cap & Gasket 2 x Moisture Absorber Absorber Guide Test Video Cable 4 x Screws & Plastic Anchors 4 x 4mm Lens Modules Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix Flex DWC-PVX16W4 16MP Multi-Sensor Outdoor Network Dome Camera with 4 x 4mm Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Flex Specs | | | Sensor | 4 x 4 MP 1/3" CMOS | | Focal Length | 4mm | | Lens Field of View | Horizontal: 81° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.41 Lux | | Shutter Speed | 1/32,000 to 1/15 Seconds | | | | Streaming Resolution | 2560 x 1440 at 30 fps (10 Mb/s ) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711 | | Built-In Mic | No | | External Audio Input | RCA | | Built-In Speaker | No | | External Audio Output | RCA | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | None | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | 18 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | Dimensions |
