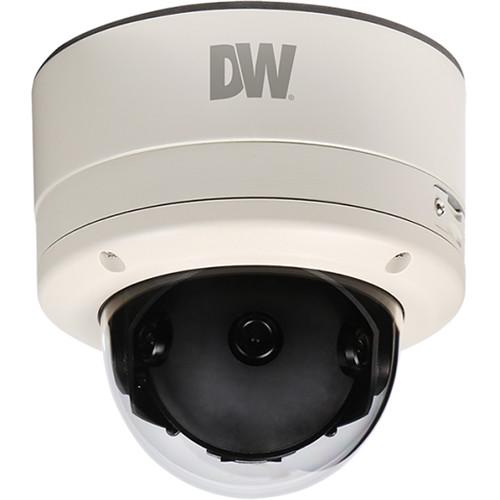

User Manual for Digital Watchdog MEGApix PANO 2MP Multi-Sensor Panoramic Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix PANO 2MP Multi-Sensor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix PANO 2MP Multi-Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix PANO 2MP Multi-Sensor Panoramic Network Dome Camera from Digital Watchdog has three 2.1 1/2.8" Sony sensors to capture 1920 x 1080 resolution video at up to 30 fps. Three 4.9mm lenses each have a 70° field of view, and when combined produce a 180° panoramic field of view. The IR cut filter and Smart 3D-DNR help to capture accurate images in varying lighting conditions. The lenses are adjustable via the EasyAdjust external pan and tilt control. PoE support simplifies installation by providing both power and network connection over a single Ethernet cable. A microSD card slot supports up to 16GB of local storage. - Three 2.1MP 1/2.8" Sony sensors capture 1920 x 1080 resolution video at up to 30 fps
- Mechanical IR cut filter for low-light recording
- 180° combined field of view
- EasyAdjust external pan and tilt control
- CleanView hydrophobic dome coating repels liquid and dust to produce clearer images
- Auto gain control and auto white balance for accurate images
- Two-way audio communication
- microSD card slot supports up to 16GB
- IP66-rated enclosure for outdoor use
UPC: 813379014352 In the Box Digital Watchdog MEGApix PANO 2MP Multi-Sensor Panoramic Network Dome Camera Mounting Template Test Monitor Cable Mounting Hardware Torx Wrench 6-Angle Wrench T-Wrench Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix PANO 2MP Multi-Sensor Panoramic Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Digital Watchdog MEGApix PANO 2MP Multi-Sensor Panoramic Network Dome Camera can be downloaded in PDF format at the link stated below.
Technical parametersDigital Watchdog DWC-PV2M4T Specs | | | Image Sensor | 3 x 2.1 MP 1/2.8" Sony sensors | | Active Pixels | 3 x 1920 x 1080 | | Resolution | 3 x 1080p at up to 30 fps | | Minimum Illumination | Color: 0.5 lux at f/2.5, 30 IRE
B&W: 0.27 lux at f/2.5, 30 IRE | | | | Focal Length | 3 x 4.9mm | | Lens Type | Fixed | | Field of View | Each: 70°
Combined: 180° | | | | AGC (Automatic Gain Control) | Up to 41 dB | | Auto White Balance | Auto, auto-ext, indoor, outdoor, manual, preset | | Alarm Notifications | Email and remote monitoring, software notifications, FTP, alarm out, JPEG recording on microSD card | | Brightness | 0-20 | | Day/Night | Mechanical IR cut filter
Auto, day, night | | Digital Slow Shutter | Off, 2-8x | | Shutter | Auto, manual | | Digital Noise Reduction | Off, low, middle, high | | Sharpness | 0-10 | | Defog | On, off | | Flip / Mirror | On, off | | Alarm | 1 x input | | Sensor | 1 x output | | | | LAN | 802.3af 10/100BaseT
1 x RJ45 connector | | Video Compression | H.264, MJPEG | | Resolution | H.264/MJPEG: 1920 x 1080, 720 x 480, 640 x 480, 352 x 240, 176 x 120 at 25 or 30 fps | | Streaming Capability | Multi-streaming CBR/VBR (controllable frame rate and bandwidth) | | Protocol | IPv4, IPv6, ONVIF, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP v1/v2c/v3 (MIB-2) | | Maximum User Access | 10 users | | ONVIF Conformance | Profile S | | Web Viewer | Browser: Microsoft Internet Explorer
OS: Microsoft Windows 7, Vista, XP, 2000 | | Video Management Software | DW Spectrum IPVMS | | Memory Card Support | microSD slot supports 4-16 GB card (available separately) | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | Certifications | FCC, CE, RoHS | | IP Rating | IP66 | | | | Power Requirements | 12 VDC, IEEE 802.3at PoE+ and PoE Class 3 | | Power Consumption | 12 VDC without IR Cut Filter: 6.3 W, 525 mA
12 VDC with IR Cut Filter: 8.8 W, 733 mA
PoE without IR Cut Filter: 7 W, 583 mA
PoE with IR Cut Filter: 9.3 W, 775 mA | | | | Material | Aluminum die-casting | | Dimensions | 5.9 x 5.7" (150 x 145 mm) | | Weight | 4.4 lb (2 kg) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 8.4 x 7.9 x 7.7" |
