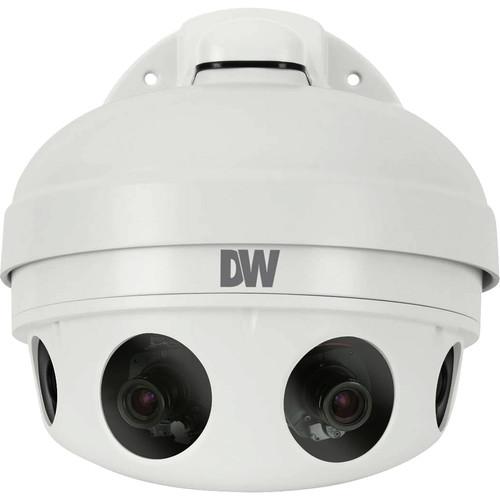

User Manual for Digital Watchdog MEGApix PANO 48MP Outdoor Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix PANO 48MP Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix PANO 48MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix PANO 48MP Outdoor Dome Camera from Digital Watchdog uses four 12MP 1/2.3" CMOS sensors and four 7.2mm fixed lenses to produce 180° views at up to 15 fps at 48MP and 30 fps at 32MP resolution. The camera comes in an IP66-rated weather-resistant enclosure with anti-reflective glass and Cleanview Self Cleaning technology. The camera can be aligned remotely and its field of view can be adjusted. In addition, it can be powered via a single PoE Plus connection or a 12 VDC power supply. The Smart DNR 3D Digital Noise Reduction increases the camera's clarity in very low light environments by using a unique algorithm to clean electronic noise signals that can reduce the camera's visibility and trigger false motion detection events. It also enables the camera to produce clearer images in both color and black & white in low light without creating lag or ghost effects in the image. The camera's CleanView dome enclosure repels water and the hydrophobic coating alleviates spotting and smudges. During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low-light environments, the cut filter is mechanically removed from the front of the lens to enable the camera to capture the infrared light and produce clearer images even in complete darkness. - 48MP 180° panoramic camera with four 12MP 1/2.3" CMOS sensors
- Four 7.2mm auto focus fixed lenses
- Zero distortion anti-reflective glass
- CleanView hydrophobic self-cleaning glass coating
- Easy image alignment and stitching
- Smart DNR 3D digital noise reduction
- Mechanical IR cut filter for night vision
- 1.0 GHz dual-core video processor
- Dual codecs with simultaneous dual-stream
- AGC (Auto Gain Control), BLC (Backlight Compensation), and AWB (Auto White Balance)
- Can be powered via PoE Plus connection or 12 VDC power supply
- IP66-rated weather-resistant housing
UPC: 813379016233 In the Box Digital Watchdog MEGApix PANO 48MP Outdoor Dome Camera Torx Wrench Mounting Hardware Template Sheet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix PANO 48MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-PZV2M72T Specs | | | Total Pixels (H x V) | 4000 x 3000 (per sensor) | | Image Sensor | 4 x 12 MP 1/2.3" CMOS sensors | | Minimum Illumination | f/2.4 (30 IRE): 0.5 lux (Color)
f/2.4 (30 IRE): 0.1 lux (B&W) | | Resolution | Up to 16000 x 3000, 48 MP (4 x 12 MP) | | | | Type | Fixed | | Focal Length | 4 x 7.2mm, 180° panoramic view | | Horizontal Field-of-View | 48 MP Mode: 48° HFOV per image, 185° total HFOV
32 MP Mode: 46° HFOV per image, 180° total HFOV | | | | LAN | 802.3at compliance 10/100/1000 LAN | | Frame Rate | 48 MP: 15 fps per sensor
32 MP: 30 fps per sensor | | Simultaneous User Access | Maximum: 2 simultaneous users | | Protocols | TCP/IP, DHCP, UDP, RTSP, NTP, RTP, Zeroconf, UpnP, Telnet | | Streaming Capability | 1 main high resolution, 1 low resolution streams | | Compression Type | Video: H.264, MJPEG | | Video Management Software | DW Spectrum IPVMS | | Web Viewer | Browser: IE, Chrome, Firefox
OS: Windows 7, Windows 8, Windows 10, Vista, XP, 2000 | | | | AGC | Maximum 42 dB | | AWB | Auto / Indoor / Outdoor / Manual | | Brightness | -255 to 255 (default value: 0) | | Day & Night | Auto/ Day (Color)/ Night (B&W) | | Sharpness | 0 to 10 | | Digital Noise Reduction | Smart DNR 3D: OFF / LOW / MIDDLE / HIGH | | Shutter Modes | Auto/ 1/25 to 1/10000 s | | BLC | On, Off | | ONVIF Conformance | Yes, Profile S | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | Less than 80% (non-condensing) | | IP Rating | IP66 certified (weather-resistant) | | | | Power Requirement | 12 VDC, PoE+ (IEEE802.3at,PoE+ switch/ PoE+ injector) | | Power Consumption | 12 VDC: 22.5 W
PoE+: 25.5 W | | | | Housing Material | Aluminum die-cast | | Housing Type | Panoramic outdoor dome | | Dimensions | 7.5 x 4.25" (191 x 108 mm) | | Weight | 4.4 lb (2 kg) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 10.6 x 10.2 x 7.4" |
