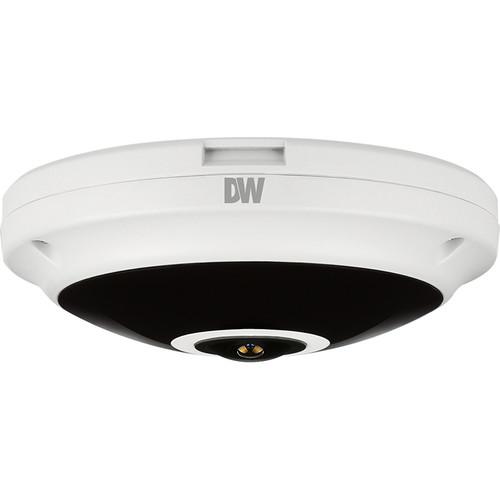

User Manual for Digital Watchdog MEGApix PANO 5MP Panoramic Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix PANO 5MP Panoramic
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix PANO 5MP Panoramic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix PANO 5MP Panoramic Network Dome Camera from Digital Watchdog features a 1/1.8" Sony IMX178 sensor to capture 2592 x 1944 resolution video at up to 30 fps. Its 1.55mm fisheye lens has a 360° hemispheric field of view or a 180 or 360° panoramic field of view to monitor an entire indoor area. A mechanical IR cut filter, Smart IR, and 3D digital noise reduction all help the camera capture accurate images in varying lighting conditions. PoE support simplifies installation by providing both power and network connection over a single Ethernet cable. A microSDHC/XC card slot supports up to 128GB for local storage. - 5MP 1/1.8" Sony IMX178 sensor captures 2592 x 1944 resolution video at up to 30 fps
- Mechanical IR cut filter and 3D-DNR for low-light recording
- 360° hemispheric, or 180 or 360° panoramic field of view
- H.265, H.264, and MJPEG dual streaming compression
- Auto gain control and auto white balance for accurate images
- microSDHC/XC card slot supports up to 128GB
- PoE and 12 VDC power options
- ONVIF-compliant for compatibility
UPC: 813379013010 In the Box Digital Watchdog MEGApix PANO 5MP Panoramic Network Dome Camera Mounting Plate Mounting Hardware Torx Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix PANO 5MP Panoramic Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-PF5M1TIR Specs | | | Image Sensor | 5 MP 1/1.8" Sony IMX178 sensor (ExmorR, SRAVIS) | | Total Pixels (H x V) | 3096 x 2094 | | Minimum Illumination | Color: 0.2 lux at f/2.5, 30 IRE
B&W: 0.2 lux at f/2.5, 30 IRE, IR LEDs on | | | | Focal Length | 1.55mm | | Lens Type | Fisheye lens | | IR Range | 32' (9.7 m) | | Field of View | Horizontal: 185 x 185 x 185° | | | | Shutter Speed | 1/30 (25) to 1/12,000 sec | | Digital Noise Reduction | Off, low, middle, high | | AGC (Automatic Gain Control) | Up to 51 dB | | Day/Night | Mechanical IR cut filter
Auto/day (color) and night (B&W) | | Sharpness | On/off | | Backlight Compensation | On/off | | | | LAN | IEEE 802.3af, 10/100BaseT
1 x RJ45 connector | | Video Compression | H.265, H.264, MJPEG | | Resolution | 2592 x 1944 at 30 fps | | Streaming Capability | H.265 dual stream or simultaneous H.265, H.264, and MJPEG | | Protocol | IPv4, IPv6, TCP, UDP, IP, HTTP, DHCP, DNS, ICMP, ARP, DDNS, NTP, SNMP, Syslog, UPnP, Bonjour, ZeroConf RTP/RTSP, ONVIF, Genetec Protocol | | Maximum User Access | 10 users | | Web Viewer | Browser: Internet Explorer 8 and later
OS: Windows 7, 8, 10, Vista, XP, 2000 | | Video Management Software | DW Spectrum IPVMS | | Memory Card Support | microSDHC/XC supports 4-128 GB card (available separately) | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | Less than 80% (non-condensing) | | Certifications | FCC, CE, RoHS | | | | Power Requirements | 12 VDC, PoE IEEE 802.3at, Class 3 | | Power Consumption | 12 VDC: 6 W (LED on)
PoE: 7 W | | | | Material | Aluminum die-casting | | Dimensions (W x H) | 4.9 x 1.7" (125 x 43.2 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.693 x 6.614 x 5.276" |
