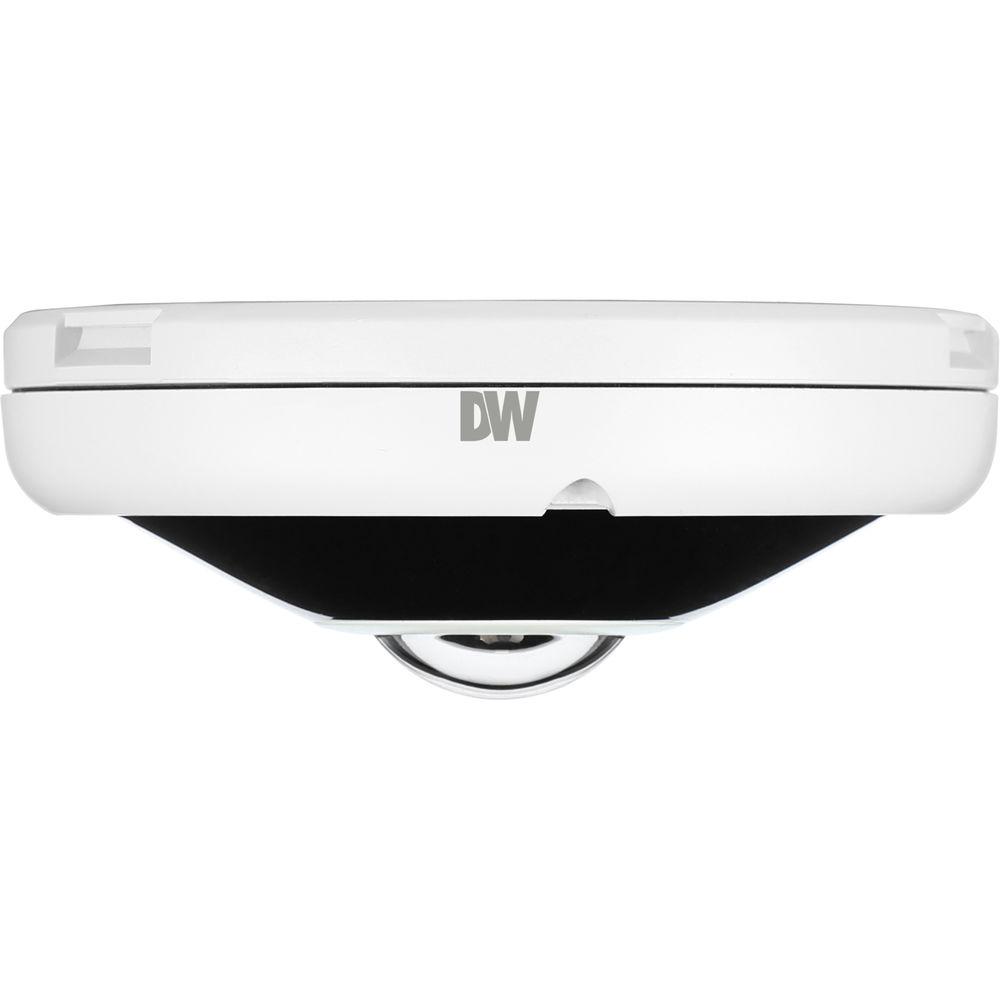

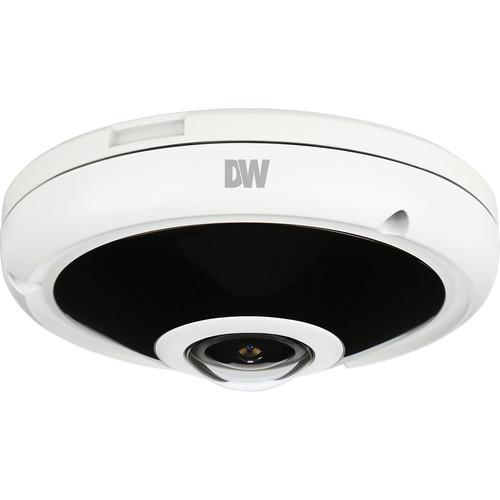

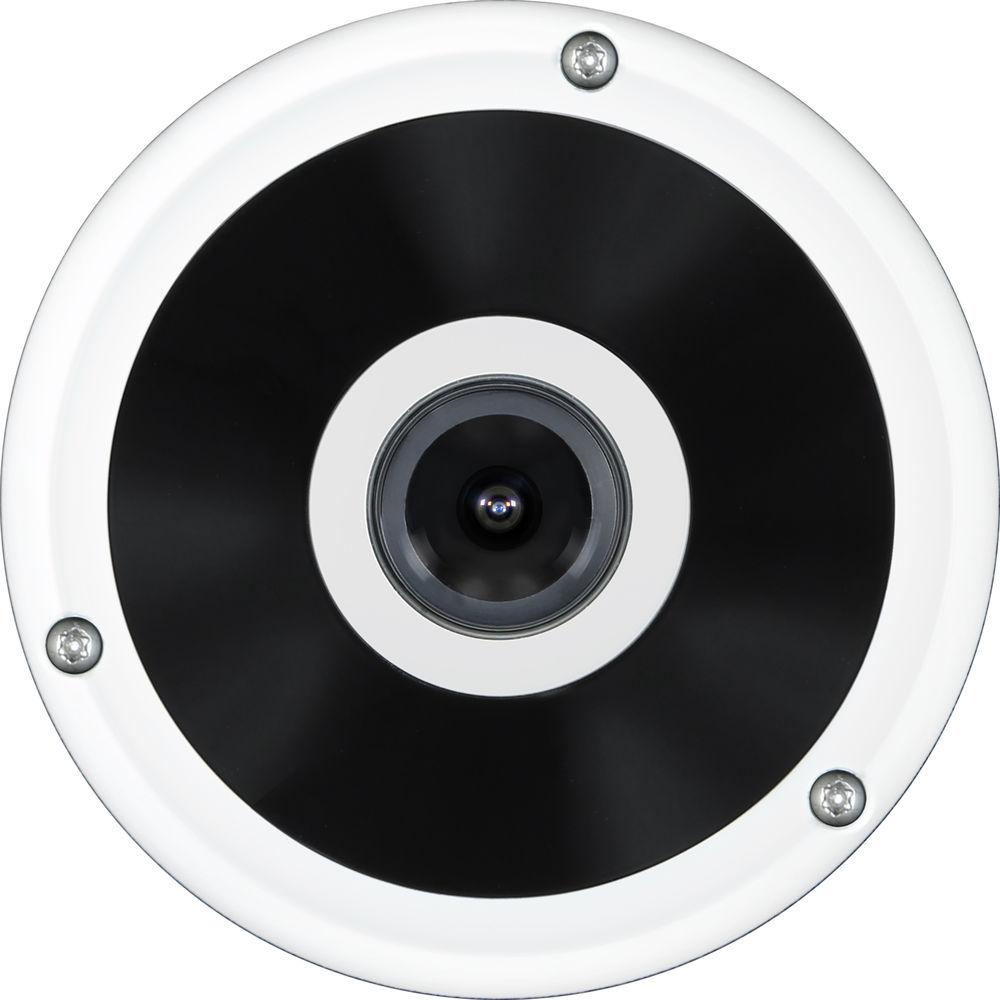

Product description The MEGApix PANO 5MP Panoramic Outdoor Network Dome Camera with Night Vision from Digital Watchdog features a 1/1.8" CMOS sensor to capture 2592 x 1944 resolution video at up to 30 fps. Its 1.55mm fisheye lens has a 360° hemispheric field of view or a 180° panoramic field of view to monitor a large outdoor area. A mechanical IR cut filter, Smart IR LEDs, and 3D digital noise reduction all help the camera capture accurate images of subjects in varying lighting conditions, even in complete darkness from up to 55' away. PoE support simplifies installation by providing both power and network connection over a single Ethernet cable. A microSDHC/XC card slot supports up to 128GB memory cards for local storage. The camera is housed in an IP66-rated enclosure for protection against dust and water, making it suitable for outdoor use. - 5MP 1/1.8" CMOS sensor captures 2592 x 1944 resolution video at up to 30 fps
- Mechanical IR cut filter and IR LEDs for night vision up to 55'
- 360° hemispheric or 180° panoramic field of view
- H.264 and MJPEG dual streaming compression
- Auto gain control and auto white balance for accurate images
- microSDHC/XC card slot supports up to 128GB
- PoE and 12 VDC power options
- ONVIF-compliant for compatibility
- IP66-rated enclosure for outdoor use
UPC: 813379018954 In the Box Digital Watchdog MEGApix PANO 5MP Panoramic Outdoor Network Dome Camera with Night Vision Mounting Plate Mounting Hardware Mounting Template Waterproof Cap and Gasket Torx Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix PANO 5MP Panoramic Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Image Sensor | 5 MP 1/1.8" CMOS sensor | | Total Pixels (H x V) | 3096 x 2094 | | Minimum Illumination | Color: 0.39 lux at f/2.5, 30 IRE
B&W: 0 lux at f/2.5, 30 IRE | | | | Focal Length | 1.55mm | | Aperture | f/2.5 | | Lens Type | Fisheye lens | | IR Range | 55' (16.8 m) | | Field of View | Horizontal: 360° | | | | AGC (Automatic Gain Control) | Auto | | Privacy Zone | 4 x programmable privacy masks | | Day/Night | Mechanical IR cut filter
Auto/day (color) and night (B&W) | | Slow Shutter | Auto, manual, anti-flicker | | Shutter Speed | 1/30 to 1/32,000 sec | | Digital Noise Reduction | Smart DNR: 0-11 | | Backlight Compensation | On/off | | | | Resolution | 2592 x 1944 at 30 fps | | LAN | 10/100BaseT
1 x RJ45 connector | | Maximum User Access | 5 simultaneous users | | Protocol | Zero config (auto IP), ONVIF, TCP/IP, UDP, RTP (UDP, TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) | | Streaming Capability | Dual-stream at different rates and resolutions | | Video Compression | H.264, MJPEG | | Video Management Software | DW Spectrum IPVMS | | Web Browser Support | Microsoft Internet Explorer, Google Chrome, Mozilla Firefox, Apple Safari | | OS Compatibility | Windows, Mac, Linux | | Memory Card Support | microSDHC/XC supports 4-128 GB card (available separately) | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | <90% (non-condensing) | | Certifications | FCC, CE, RoHS | | | | Power Requirements | 12 VDC, PoE IEEE 802.3at, Class 3 | | Power Consumption | LED Off: 3.6 W, 300 mA
LED On: 6.5 W, 541 mA | | | | Material | Aluminum die-casting | | Dimensions | 4.9 x 1.9" (125 x 48 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 12.4 x 10.1 x 7.7" |
