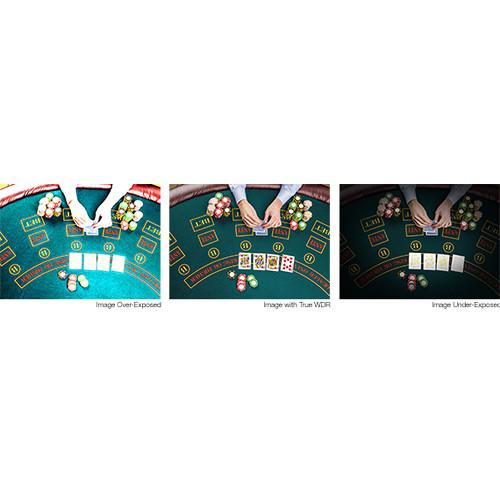

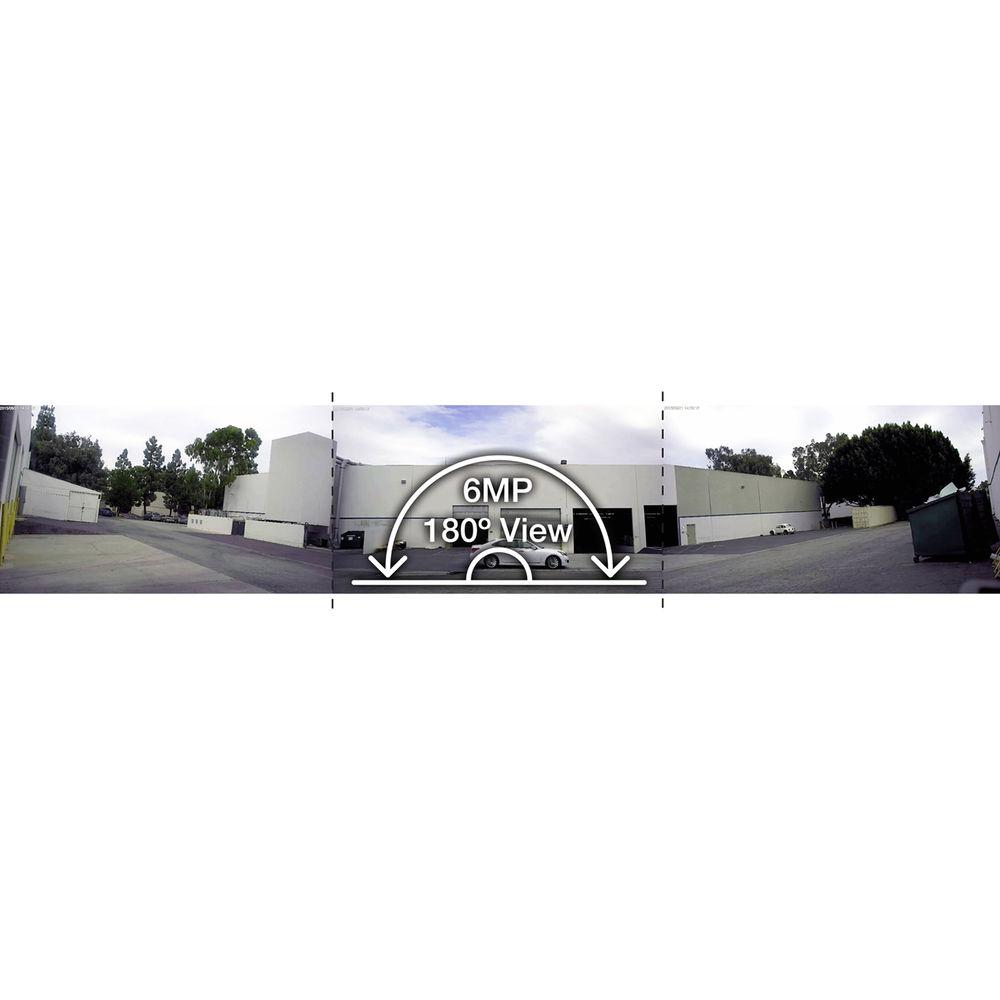

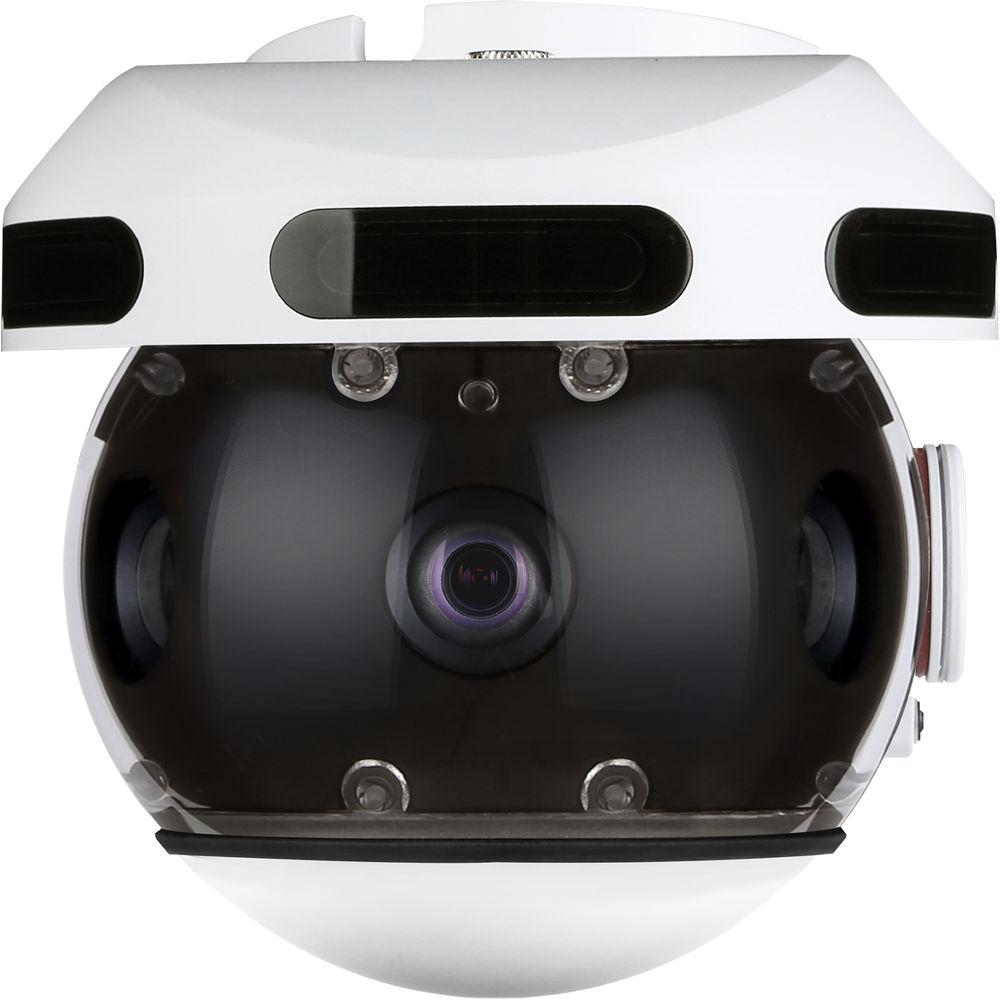

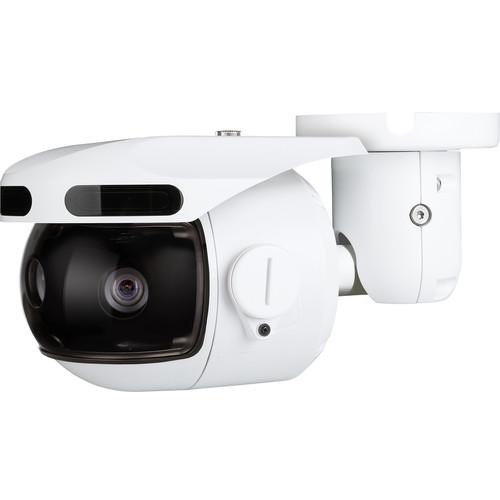

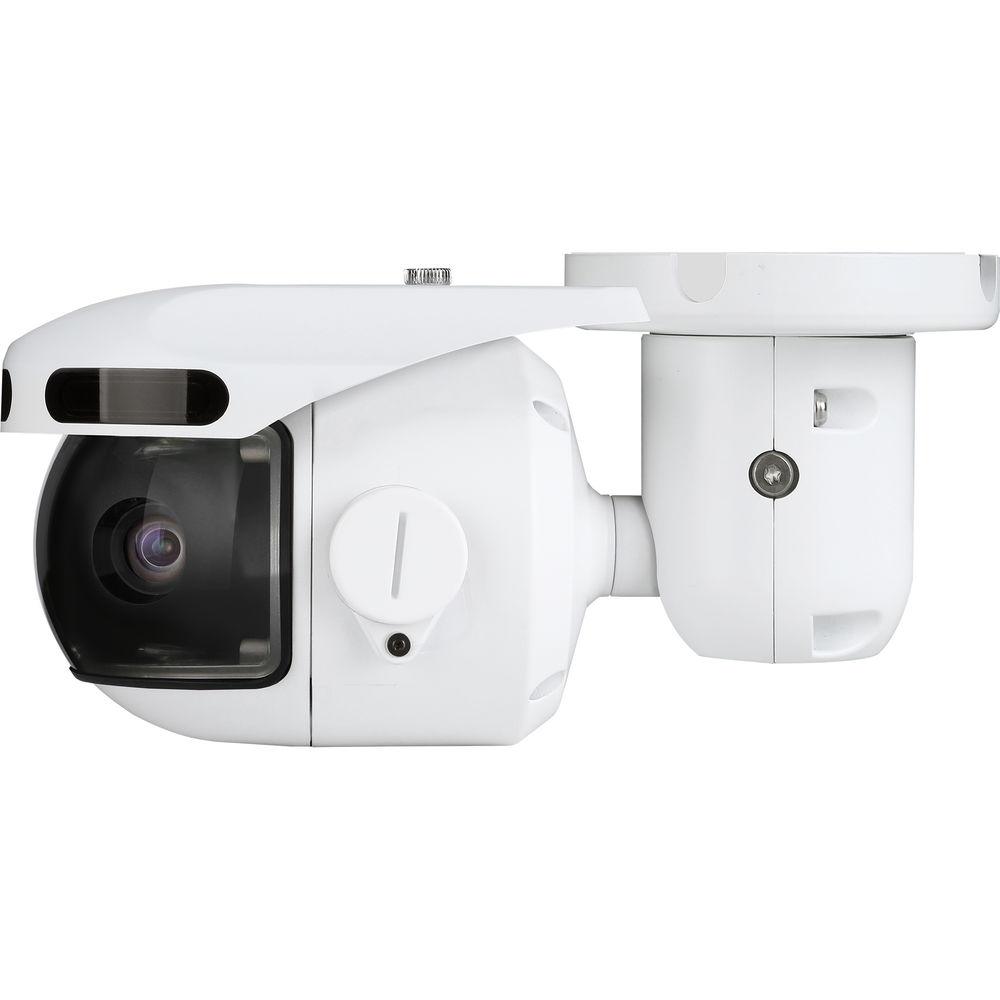

Product description Monitor an outdoor area with the MEGApix PANO 6MP Outdoor Panoramic Network Bullet Camera from Digital Watchdog. The camera features three 1/3" 2.1MP CMOS sensors to capture combined 5760 x 1080 resolution video at up to 20 fps. The 4.3mm lenses deliver a 180° panoramic field of view to monitor a wide area. The mechanical IR cut filter, 3D digital noise reduction, wide dynamic range, and backlight compensation ensure that the camera captures accurate images in varying lighting conditions. PoE support simplifies installation by providing both power and network connection over a single Ethernet cable. A microSD/SDHC slot supports cards up to 64GB, which are available for purchase separately. The camera is ONVIF-compliant, with Profile S support for interoperability between network video products. It is housed in an IP66-rated aluminum enclosure for outdoor use. - Mechanical IR cut filter and 3D-DNR for low-light recording
- H.265, H.264, and MJPEG dual-streaming compression
- AGC (auto gain control) up to 41 dB
- Digital zoom and pan control
- Image alignment and stitching
- IP66-rated aluminum enclosure for outdoor use
UPC: 813379018961 In the Box Digital Watchdog MEGApix PANO 6MP Outdoor Panoramic Network Bullet Camera Sunshield Sunshield Screws 4 x Screws & Plastic Anchors Template Sheet T-Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix PANO 6MP Outdoor Panoramic Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-PB6M4T Specs | | | Sensor | 3 x 1/3" 2.1 MP CMOS | | Total Pixels (H x V) | 5760 x 1080 (3x 1920 x 1080) | | Resolution | 6.0 MP (3 x 2.1 MP) | | Minimum Illumination | f/2.0 (30 IRE): 0.06 lux (Color)
f/2.0 (30 IRE): 0.01 lux (B&W)
| | S/N Ratio | 50 dB | | Alarm Input / Output | 1/1 | | Audio Input / Output | 1/1 | | Audio Compression | G.726, G.711, u-low (bi-directional) | | | | Focal Length | 3 x 4.3mm, f/2.0 | | Lens Type | Fixed | | Field of View | 180° (3 x 62°) | | | | Shutter Speed | 1/30 to 1/30,000 | | Shutter Modes | Auto, manual | | Wide Dynamic Range | Off, on | | Backlight Compensation | Yes | | 3D-DNR | Off, low, middle, high | | Day and Night | Day (color), night (B&W), auto | | Mechanical IR Cut Filter | Yes | | AGC (Automatic Gain Control) | 41 dB max | | Event Notification | Notifications via email or SD card recording | | | | LAN | 802.3 compliance 10/100 LAN | | Video Compression | H.265, H.264, MJPEG | | Resolution | 1920 x 1080 (each sensor) | | Frame Rate | 5760 x 1080 at 20 fps | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4, IPv6 | | Protocol | TCP, UDP, IP, HTTP, DHCP, DNS, ICMP, ARP, DDNS, NTP, SNMP, Syslog, UPnP, Bonjure, ZeroConf, RTP/RTSP, ONVIF, Genetec Protocol | | Security | Digest authentication (ID/PW) | | Maximum User Access | 5 users | | ONVIF Conformance | Profile S | | Web Viewer | OS: Windows, Mac OS, Linux
Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari
| | Video Management Software | DW Spectrum IPVMS | | Memory Slots | microSD/SDHC card support up to 64 GB (available separately) | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 90% RH (non-condensing) | | IP Rating | IP66 | | Certifications | FCC, CE, ROHS | | Power Requirements | 12 VDC, PoE (802.3af/Class 3) | | Power Consumption | With TDN: 10.1 W Max
Without TDN: 7.7 W
| | Construction Material | Aluminum | | Dimensions | 4.56 x 9.66" / 116 x 245.5 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 4.665 lb | | Box Dimensions (LxWxH) | 12.7 x 8.5 x 7.25" |
