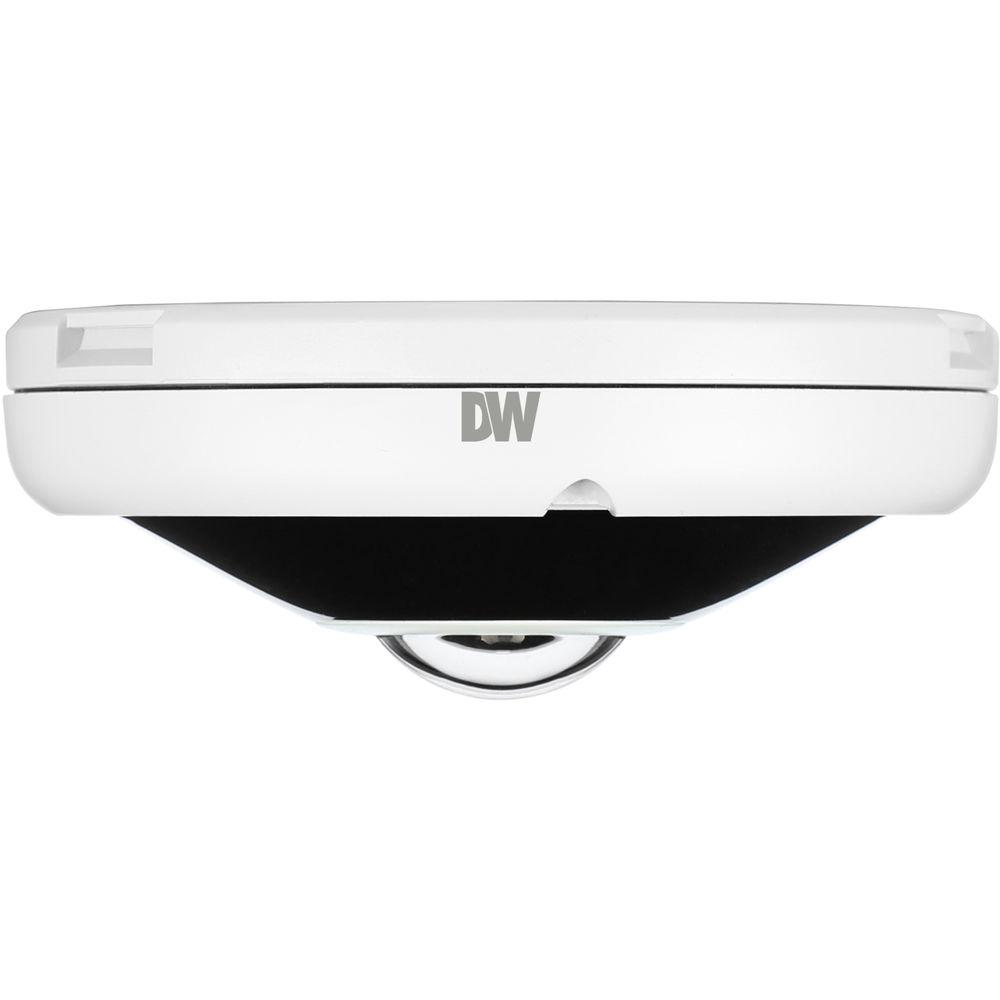

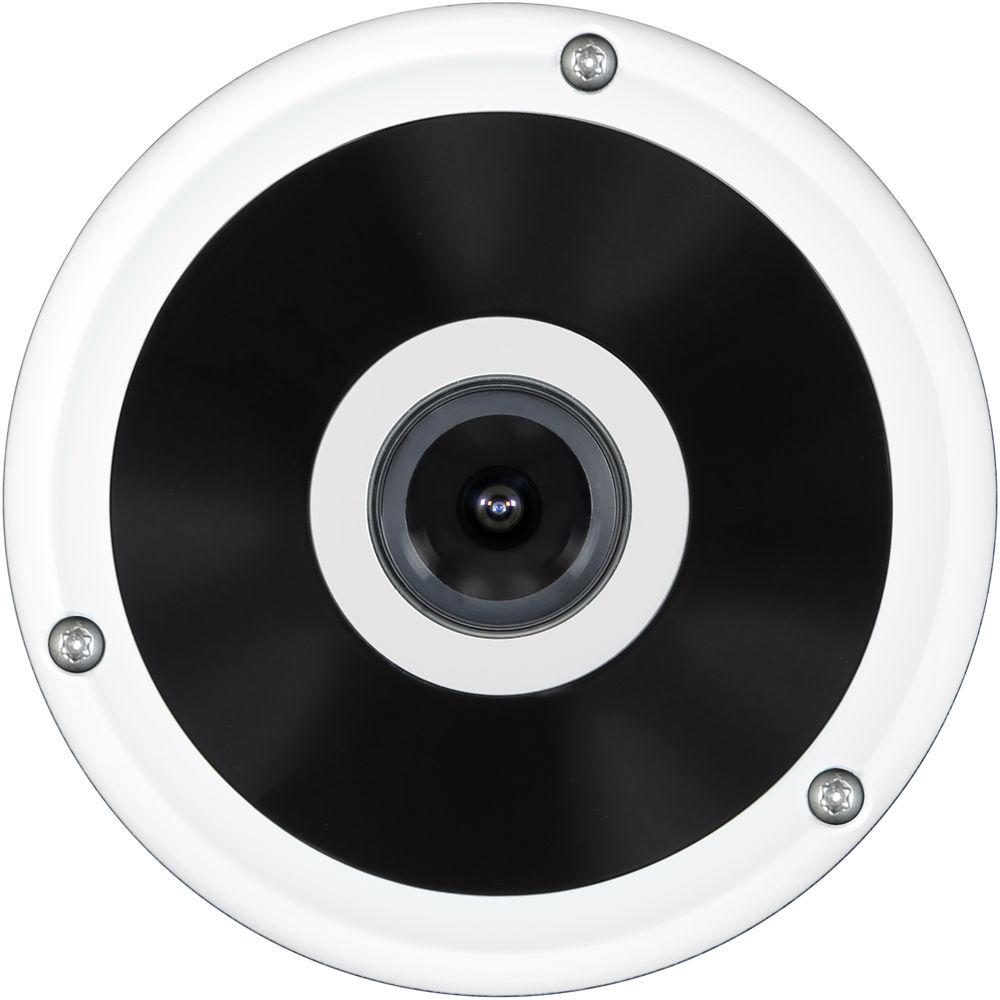

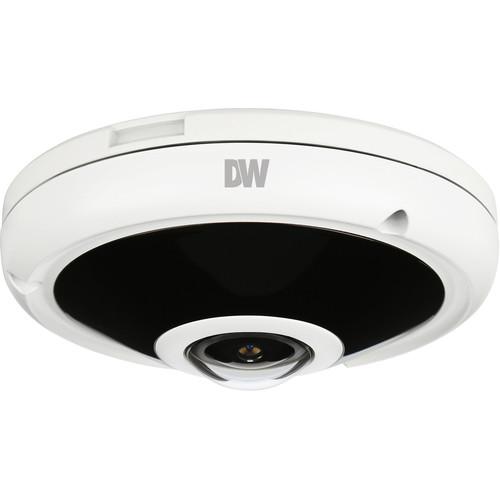

User Manual for Digital Watchdog MEGApix PANO DWC-PVF9M2TIR 9MP Outdoor Fisheye Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix PANO DWC-PVF9M2TIR 9MP
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
 |
User manual for the Digital Watchdog MEGApix PANO DWC-PVF9M2TIR 9MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix PANO DWC-PVF9M2TIR from Digital Watchdog uses a 9MP 1/1.7" CMOS sensor to capture 3000 x 3000 resolution video at 30 fps. Smart IR provides up to 55' of night vision. The 2.1mm fisheye fixed lens delivers a 360° hemispheric or 180 and 90° panoramic views with edge-to-edge image clarity. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot supports microSD/SDHC cards up to 32GB. microSD cards are available separately. Integrated PoE technology simplifies installation by transferring power and data over a single cable.
This camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated and tamper-resistant enclosure that is suitable for outdoor use. - Offers 360° hemispheric fisheye or 180 and 90° panoramic views with edge-to-edge image clarity
- Mechanical IR cut filter enables true day and night functionality
- Smart IR with intelligent camera sync provides an IR range up to 55'
- H.265, H.264, and MJPEG video compression with simultaneous dual streaming
- Multi streaming CBR/VBR at H.264/H.265
- 20 kb/s to 20 Mb/s video bit rate
- Digital wide dynamic range
- Auto and manual shutter control
- Auto and manual white balance
- PoE and 12 VDC power (DC power adapter available separately)
- Alarm sensor input and relay output
- Alarm notifications via microSD card recording
- Supports iptable packet filtering
- DW Spectrum IPVMS video management software
- Compatible with Internet Explorer 8 or above, Windows 7, 8, 10, Vista, XP, and 2000
- IP66-rated enclosure that is suitable for outdoor use
- FCC, CE, and RoHS certified
UPC: 813379014093 In the Box Digital Watchdog MEGApix PANO DWC-PVF9M2TIR 9MP Outdoor Fisheye Network Dome Camera with Night Vision 2 x Template Sheets Torx Wrench 2 x Mount Bolts & Nuts Mount Plate 3 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix PANO DWC-PVF9M2TIR 9MP Outdoor Fisheye Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-PVF9M2TIR Specs | | | Sensor | 9 MP 1/1.7" CMOS | | Focal Length | 2.1mm | | Maximum Aperture | f/2.2 | | Lens Field of View | Horizontal: 360° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.2 Lux
B&W: 0 Lux | | Shutter Speed | 1/12,000 to 1/30 Seconds | | | | Streaming Resolution | 3000 x 3000 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | | | Security | Packet Filtering, Password Protection | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SNMP v1/v2c/v3 (MIB-II), syslog, TCP, UDP, UPnP, Zero Configuration | | | | Application Programming Interface (API) | ONVIF Profile S, Genetec Protocol | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, Vista, 7, 8, 10, 2000 | | | | Recording Media | microSD (Up to 32 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 55' / 16.76 m | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 7 W
PoE: 7.8 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions |
