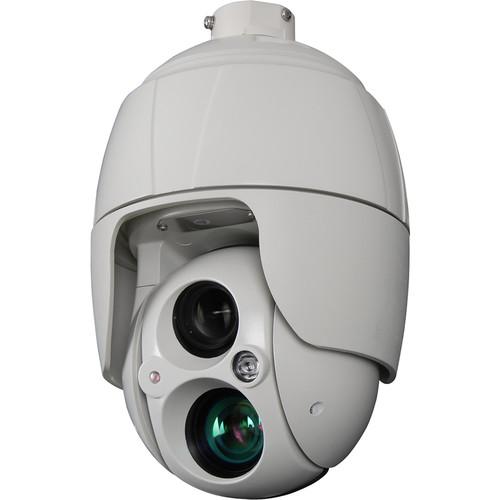

User Manual for Digital Watchdog MEGApix Series 2.1MP Outdoor 30x PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix Series 2.1MP Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix Series 2.1MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix Series 2.1MP Outdoor 30x PTZ Network Dome Camera from Digital Watchdog features a 1/2.8" Sony STARVIS CMOS sensor and 4.3-129mm varifocal lens for capturing video at a maximum resolution of 1920 x 1080 at 30 fps. It offers up to 30x optical zoom, 16x digital zoom, and 0 to 360° endless pan. Enclosed in an IP66-rated housing, the camera can be used for both indoor and outdoor applications. This day/night camera provides 24-hour surveillance thanks to the removable IR cut filter and built-in IR LEDs with a range of up to 1300'. - Multiple codecs (H.264, MJPEG) with simultaneous dual-stream
- 4.3-129mm remote auto focus lens
- Smart IR with Intelligent Camera Sync offers a range of up to 1300'
- Smart DNR 3D Digital Noise Reduction
- True day/night function with mechanical IR cut filter
- Digital Image Stabilizer (DIS)
- Backlight Compensation (BLC)
- Programmable privacy zones (16 masks)
- 0 to 360° endless pan and 380°/s pan speed
- 256 Preset positions, 8 patterns, and 8 tours
- microSD/SDHC/SDXC Class 10 card slot for emergency backup (up to 32GB, card not included)
- Alarm sensor input and relay output
- Can be powered via the included 55W PoE injector and 12 VDC power supply
- Meets ONVIF Profile S standards
- IP66-rated weather-resistant housing
UPC: 813379018787 In the Box Digital Watchdog MEGApix Series 2.1MP Outdoor 30x PTZ Network Dome Camera with Night Vision 55W PoE Injector Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix Series 2.1MP Outdoor 30x PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Image Sensor | 1/2.8" Sony STARVIS CMOS Sensor | | Total Pixels (H x V) | 1945 x 1097 | | Minimum Illumination | Color: 0.35 lux 50IRE
B&W: 0.013 lux | | | | Focal Length | 4.3-129mm, f/1.6 | | Lens Type | Remote auto focus lens | | IR Range | 1300' (396 m) | | Angle of View | 65.1 to 2.23° | | Digital Zoom | 16x | | Optical Zoom | 30x | | | | Audio Input/Output | 1/1, two-way audio | | Audio Compression | G.711 | | Alarm I/O | 4/1 | | | | Shutter Speed | 25/30 fps: Auto (1/30,000 to x8 sec), manual
50/60 fps: Auto (1/50,000 to x8 sec), manual | | Day and Night | Auto, Day (Color), Night (B&W) | | Programmable Privacy Zones | 16 | | Alarm Notifications | Email, FTP, Notification Server, XML Notification, Audio Alert, AIHM, SD card | | | | Pan Range | 360˚ endless | | Pan Speed | Maximum 380˚/s (preset) | | Tilt Range | -10 to 190˚ | | Tilt Speed | Maximum 380˚/s (preset) | | Preset | 256 | | Tour | 8 | | Pattern | 8 | | Auto Home Function | Yes | | | | LAN | 802.3 compliance 10/100 LAN | | Video Compression | H.264, MJPEG | | Resolution | 1920 x 1080 at 30 fps | | Frame Rate | Up to 30 fps at all resolutions | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4, IPv6 | | Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour | | Security | Password authentication, Multi User Authority, IP Filtering, HTTPS (SSL) | | Maximum User Access | Live: 10 users
Playback: 3 users | | Compliance | ONVIF Profile S | | Web Viewer | OS: Windows, Mac OS, Linux | | Memory Slots | microSD/SDHC/SDXC slot
Up to 32 GB cards supported (card not included) | | | | Operating Temperature | -22 to 149°F (-30 to 65°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | Certifications | CE, FCC, RoHS | | | | Power Requirement | 12 VDC, PoE (802.3at POE+, 55 W PoE injector included) | | Power Consumption | Auto Focus Working: Maximum 28 W, 2330 mA | | | | Material | Aluminum die-cast | | Dimensions | 7.95 x 12.3" (201.8 x 313 mm) | | Weight | 10.8 lb (4.9 kg) |
