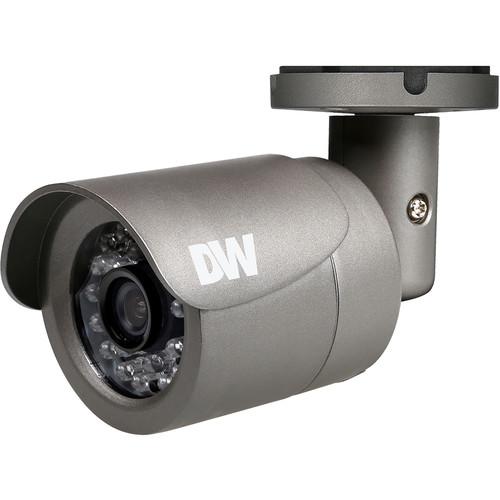

User Manual for Digital Watchdog MEGApix Series 4MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix Series 4MP Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix Series 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix Series 4MP Outdoor Network Bullet Camera from Digital Watchdogfeatures a 1/3" CMOS sensor and 4mm fixed lens for capturing video at a maximum resolution of 2560 x 1440 at 30 fps. Enclosed in an IP66-rated housing, the camera can be used for both indoor and outdoor applications. This day/night camera provides 24-hour surveillance thanks to the removable IR cut filter and built-in IR LEDs with a range of up to 60'. - Dual codecs (H.264, MJPEG) with simultaneous streaming
- Smart IR with Intelligent Camera Sync offers a range of up to 60'
- Smart DNR 3D Digital Noise Reduction
- True day/night function with mechanical IR cut filter
- Backlight Compensation (BLC)
- Programmable privacy zones (4 masks)
- microSD/SDHC/SDXC Class 10 card slot for event and continuous recording (card not included)
- Can be powered via PoE and 12 VDC power supply
- Meets ONVIF Profile S standards
- IP66-rated weather-resistant housing
UPC: 813379018749 In the Box Digital Watchdog MEGApix Series 4MP Outdoor Network Bullet Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix Series 4MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Image Sensor | 1/3" 4 MP CMOS | | Total Pixels (H x V) | 2688 x 1520 | | Minimum Illumination | Color: 0.41 lux f/2.0 (30IRE)
B&W: 0 lux | | | | Focal Length | 4mm, f/2.0 | | Lens Type | Fixed lens | | IR Range | 60' (18.2 m) | | Angle of View | 80° | | | | Shutter Modes | Auto, Manual, Anti-Flicker | | Shutter Speed | 1/30 to 1/32,000 sec | | AGC (Automatic Gain Control) | Auto | | Day and Night | Auto, Day (Color), Night (B&W) | | Digital Noise Reduction (DNR) | Smart DNR, 0 to 11 | | Wide Dynamic Range | Off, WDR2x, WDR3X | | Programmable Privacy Zones | 4 | | Alarm Notifications | Notifications via email, FTP server or SD card recording | | | | LAN | 802.3 compliance 10/100 LAN | | Video Compression | H.264, MJPEG | | Resolution | 2560 x 1440 at 30 fps
800 x 600 at 30 fps
480p at 30 fps | | Frame Rate | Up to 30 fps at all resolutions | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4 | | Protocols | ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) | | Security | Password authentication, multi-level user configuration | | Maximum User Access | 5 users | | Compliance | ONVIF Profile S | | Web Viewer | OS: Windows, Mac OS, Linux
Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari | | Video Management Software | DW Spectrum IPVMS | | Memory Slots | microSD/SDHC/SDXC slot (card not included) | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | Certifications | CE, FCC, RoHS | | | | Power Requirement | 12 VDC, PoE (IEEE 802.3af) | | Power Consumption | LED On: 6.5 W, 541 mA
LED Off: 3.5 W, 291 mA | | | | Material | Aluminum housing | | Dimensions | 6.36 x 2.65" (161.7 x 67.5 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.9 x 4.2 x 3.3" |
