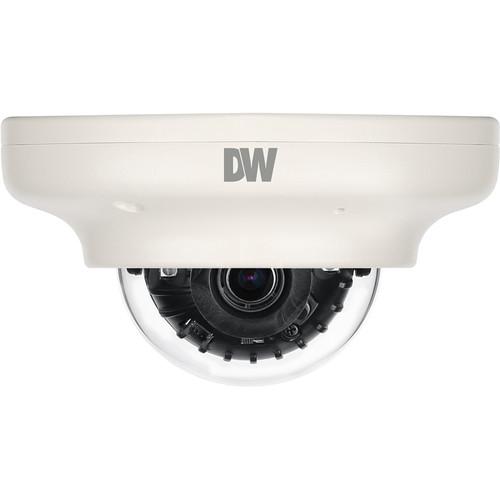

User Manual for Digital Watchdog MEGApix Series DWC-MV72I4V 2.1 MP 1080p Network Outdoor Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix Series DWC-MV72I4V 2.1
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix Series DWC-MV72I4V 2.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix Series MV72I4V 2.1MP 1080p Network Surface Mount Outdoor Dome Camera from Digital Watchdog is a dual codec (H.264 & MJPEG) network camera that records video in 1080p resolution at a full frame rate of 30 fps. The camera has Smart IR LEDs that provide night vision up to 50’ and a 4mm fixed lens. A built-in web server and user-friendly interface are included to make the camera easy to use. Power-over-Ethernet (PoE) simplifies installation as a separate power cable installation is not required. The camera is ONVIF-conformant, assuring integration with other open platform video surveillance products. The camera is housed in a dome enclosure with MEGApix technology. - Real-time 2.1MP resolution 1080p @ 30fps
- Dual codecs (H.264 & MJPEG) with simultaneous streaming
- Smart IR with intelligent camera sync with a 50' range
- True day/night with mechanical IR cut filter
- BLC (Back Light Compensation)
- ONVIF-compliant, Profile S
UPC: 813379015885 In the Box Digital Watchdog MEGApix Series DWC-MV72I4V 2.1 MP 1080p Network Outdoor Dome Camera with Night Vision Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix Series DWC-MV72I4V 2.1 MP 1080p Network Outdoor Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Digital Watchdog MEGApix Series DWC-MV72I4V 2.1 MP 1080p Network Outdoor Dome Camera with Night Vision can be downloaded in PDF format at the link stated below.
Technical parametersDigital Watchdog DWC-MV72I4V Specs | | | Image Sensor | 1/2.7" 2.1 MP CMOS | | Total Pixels | 1930 x 1088 | | Minimum Illumination | f/2.0 (30 IRE): 1.4 lux (Color)
f/2.0 (30 IRE): 0.00 lux (B&W) | | | | Focal Length | 4mm lens | | Lens Type | Fixed lens | | IR Distance | 50' (15 m) Smart IR | | Angle of View | 82° | | | | Shutter Modes | Auto | | Shutter Speed | 1/30 (25) to 1/10,000 sec | | White Balance | Auto Indoor/Auto Outdoor/Push/Manual/Hold | | AGC (Automatic Gain Control) | Maximum 64 dB | | Day and Night | Auto, Day, Night, Schedule | | | | LAN | 802.3 compliance 10/100 base T LAN | | Video Compression | H.264, MJPEG | | Resolution | 1080p / D1 / VGA / CIF / QVGA | | Frame Rate | 1 to 30 fps | | Streaming Capability | Multi streaming CBR/VBR (controllable frame rate and bandwidth) | | IP | IPv4, IPv6 | | Protocol | ONVIF, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DNS, DDNS, DHCP | | Maximum User Access | 4 users | | ONVIF Conformance | OVIF Profile S | | Web Viewer | Browser: Internet Explorer, Google Chrome, Firefox
OS: Windows 7 | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP67 | | Certifications | FCC, CE, ROHS | | | | Power Requirements | 12 VDC, POE IEEE 802.3af Class 2 | | Power Consumption | LED Off: 1.9 W, 155 mA
LED Off: 3 W, 250 mA | | | | Material | Aluminum die-casting | | Dimensions | 4.1 x 2.4" (10.5 x 6.1 cm) | | Weight | 0.95 lb (0.35 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.4 x 5.3 x 4.12" |
