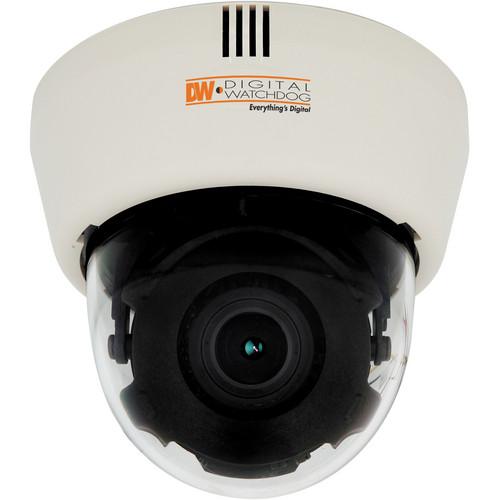

User Manual for Digital Watchdog Snapit 2.1MP Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog Snapit 2.1MP Dome Camera
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog Snapit 2.1MP Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Featuring a 1/2.8" CMOS sensor, the Snapit 2.1MP Dome Camera from Digital Watchdog captures high-definition and accurate images with the help of built-in WDR technology. The 2.8-12mm varifocal lens captures a wide area and can zoom in on a specific area for clear images of faraway subjects. This dome camera captures resolutions up to 1080p at 30 fps to enable high-quality playback and has the ability to compress video using H.264, MJPEG, or MPEG-4 codecs to fit your needs. You can also stream up to two different codecs at once.
Electronic night vision allows the camera to compensate for low-light conditions in order to produce images at night. In addition, Smart DNR 3D technology further improves images in low light by cleaning electronic noise signals to generate a clearer, sharper image.
The camera can be powered with an Ethernet cable thanks to PoE technology and is ONVIF-compliant for a wide range of compatibility with ONVIF devices. Video can be stored on a locally on a microSD card up to 32GB (available separately). - Up to 2.1MP (1920 x 1080 @ 30 fps)
- H.264, MJPEG, and MPEG-4 video compression with simultaneous dual-stream
- 2.8-12mm varifocal P-iris remote autofocus lens with 4.5x optical zoom and 8x digital zoom
- Smart DNR 3D (Digital Noise Reduction)
- Backlight Compensation (BLC)
- Up to 30 programmable privacy zones
- Snapit easy installation housing with two-screw installation
- microSD SDHC Class 10 card slot for emergency backup
UPC: 813379011801 In the Box Digital Watchdog Snapit 2.1MP Dome Camera Test Video Cable Template Sheet 2 x Screws 2 x Plastic Anchors Limited 5-Year Warranty Brochure PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Snapit 2.1MP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MD421D Specs | | | Sensor | 1/2.8" CMOS | | Minimum Illumination | Color: 0.5 lux at f/1.6 (30 IRE)
B&W: 0.01 lux at f/1.6 (30 IRE) | | Shutter Speed | 1/30, 1/60, 1/120 | | Shutter | Digital Slow Shutter: Off, 2x, 3x, 4x | | Lens | 2.8-12mm at f/1.6 | | Zoom | Optical: 4.5x
Digital: 8x | | Day & Night | Electronic day/night | | | | Video | H.264, MJPEG, and MPEG-4 | | Dual Streaming | Supported at different rates and resolutions | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | Up to 30 frames per second at all resolutions on all streams | | DNR | 3D Digital Noise Reduction: Off, low, middle, high | | Wide Dynamic Range | Mechanical WDR | | Backlight Compensation | Supported, on/off | | Brightness | Adjustable from 0 to 20 | | Chroma | Adjustable from 0 to 20 | | AGC (Automatic Gain Control) | Adjustable from 0 to 20 | | Auto White Balance | Auto, auto high, auto low, Preset, and manual | | Gamma | Adjustable from 0.45 to 1.00 | | Sharpness | Adjustable from 0 to 10 | | Flip / Mirror | On/off | | Privacy Zone | Up to 30 programmable privacy masks | | | | LAN | 802.3 10/100 | | ONVIF Conformance | Yes, Profile S | | Protocols | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast | | Maximum User Access | 4 simultaneous users | | Backup | Up to 24 hours to microSD card for network loss emergency recording only (microSD card available separately) | | Web Viewer | Windows XP, Vista, 7
Mac OS
Internet Explorer, Chrome, Firefox, Safari | | Video Management Software | Digital Watchdog Spectrum and VMS, Pivot CMS | | | | Communication | RJ45 Ethernet port | | On-board Storage | Built-in microSD slot supports up to 32 GB | | Audio | Two-way audio | | Alarm Notifications | Email and remote monitoring software notifications | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | < 90% (non-condensing) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Certifications | CE, FCC, RoHS | | Power Requirements | 12 VDC, PoE (IEEE 802.3af class 3) | | Power Consumption | 7.2 W @ 600 mA | | Dimensions (Ø x H) | 4.25 x 3.8" (108 x 96.8 mm) | | Weight | 0.5 lb (0.22 kg) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.3 x 6.9 x 5.4" |
