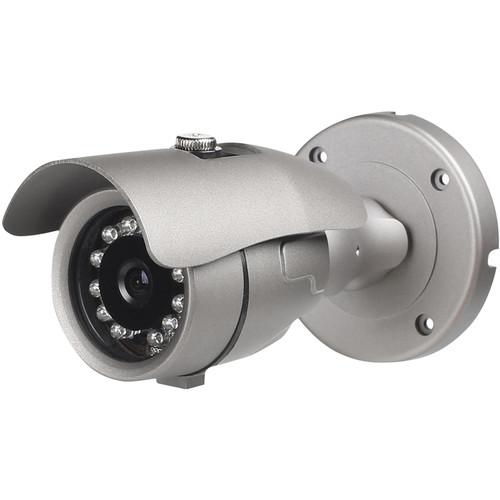

User Manual for Digital Watchdog STAR-LIGHT 2MP Outdoor AHD Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog STAR-LIGHT 2MP Outdoor AHD
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog STAR-LIGHT 2MP Outdoor AHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The STAR-LIGHT 2MP Outdoor AHD Bullet Camera with Night Vision from Digital Watchdog can capture 1080p video at up to 30 fps thanks to AHD technology, which provides high-definition video over standard coax cable. Smart IR LEDs surround the 3.6mm lens to allow night vision to a range of 50'. Digital wide dynamic range, 3D digital noise reduction, and highlight masking exposure help the camera produce accurate images in varying lighting conditions. The camera is housed in an IP66-rated enclosure for protection against dust and water, making is suitable for outdoor use. - AHD technology for 1080p resolution over standard coax cable
- STAR-LIGHT technology to capture images in low-light scenes
- 3.6mm lens with Smart IR LEDs for night vision up to 50'
- IP66-rated enclosure for outdoor use
UPC: 813379015755 In the Box Digital Watchdog STAR-LIGHT 2MP Outdoor AHD Bullet Camera with Night Vision Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog STAR-LIGHT 2MP Outdoor AHD Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Digital Watchdog STAR-LIGHT 2MP Outdoor AHD Bullet Camera with Night Vision can be downloaded in PDF format at the link stated below.
Technical parametersDigital Watchdog DWC-B7753TIR Specs | | | Image Sensor | 2 MP Omnivision 1/2.7" progressive scan CMOS sensor | | Active Pixels | 1920 (H) x 1080 (V) | | Frequency | 50/60 Hz | | Synchronization | Internal | | Resolution | 1920 x 1080 (1080p) | | Minimum Illumination | Color: 1 lux at f/1.4, 30 IRE
B&W: 0 lux at f/1.4, 30 IRE | | Day/Night | Mechanical IR cut filter | | S/N Ratio | 55 dB | | Video Output | AHD over Coax: 1080p at 30 fps, 720p at 60 fps, 720p at 30 fps | | Image Enhancement | Digital wide dynamic range, Smart 3D digital noise reduction, highlight masking exposure, auto gain control, backlight compensation, auto white balance | | Privacy Zone | Yes, programmable | | | | Focal Length | 3.6mm | | Lens Type | Fixed | | IR Range | Smart IR LEDs, up to 50' (15 m) | | | | Video Output | 1 x BNC for AHD over coax
Secondary BNC output | | Control | RS-485 | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | <90%, non-condensing | | IP Rating | IP66 | | Certifications | FCC, CE, RoHS | | | | Power Requirements | 12 VDC | | Power Consumption | LEDs Off: 3.06 W, 255 mA
LEDs On: 3.43 W, 285 mA | | | | Material | Aluminum | | Dimensions | 6.7 x 2.8" (17 x 7.1 cm) | | Weight | 1.65 lb (0.75 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 8.5 x 3.7 x 3.3" |
