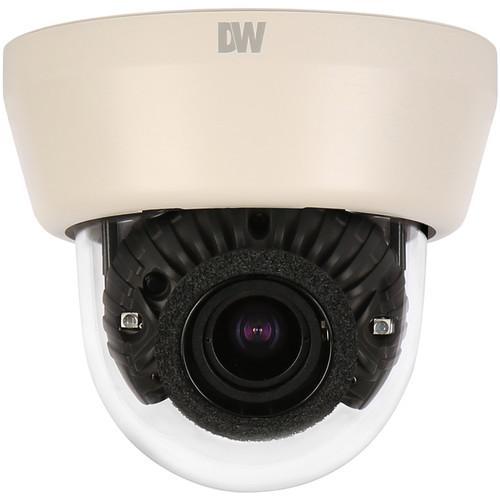

User Manual for Digital Watchdog Star-Light AHD 2MP Analog High Definition IR Day Night Camera with 2.8 to 12mm Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog Star-Light AHD 2MP Analog
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog Star-Light AHD 2MP Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The Star-Light AHD 2MP Analog High Definition IR Day/Night Camera from Digital Watchdog features a 1/3” CMOS sensor and captures Full HD images at 30 fps. This camera allows you to transmit crystal-clear 1080p resolution videos via coaxial cables. The camera offers 2.1MP resolution along with features such as P-Iris Lens, Double Shutter Wide Dynamic Range (WDR), and True Day/Night with Mechanical IR Cut Filter. Smart IR technology with Intelligent camera sync in this day/night camera enables surveillance in complete darkness up to 70’. The camera is engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution. - Analog High Definition (AHD) HD over Coax Technology
- STAR-LIGHT technology for capturing detailed images in low light
- Features Panasonic 1/3" CMOS sensor
- Records 1080p resolution at 30fps
- 2.8 to 12mm auto focus P-Iris lens
- Smart IR with intelligent camera sync for night vision range of up to 70'
- Smart DNR 3D digital noise reduction
- Highlight Masking Exposure (HME)
- True day/night operation with mechanical IR cut filter
- Auto sensing 24VAC/12VDC input with line lock
- Secondary video-BNC output
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Features Auto Gain Control (AGC), Backlight Compensation (BLC), and Auto White Balance (AWB)
- Dynamic Range Compressor (DRC) reveals low light detail
UPC: 813379015632 In the Box Digital Watchdog Star-Light AHD 2MP Analog High Definition IR Day/Night Camera with 2.8 to 12mm Lens Limited 5-Year Warranty Brochure PDF 196.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Star-Light AHD 2MP Analog High Definition IR Day Night Camera with 2.8 to 12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-D4783WTIR Specs | | | Image Sensor | Panasonic 1/3" CMOS Progressive Scan | | Active Pixels | 1944 (H) x 1092 (V) | | Frequency | 60 Hz / 50 Hz | | Signal | 2 MP AHD | | Synchronization | Internal | | Resolution | 1920 x 1080 (1080p) | | Minimum Illumination | F1.4 (30IRE): 0.35 lux (Color)
F1.4 (30IRE): 0 lux (B&W) | | S/N Ratio | 55 dB | | Video Output | AHD 1080p, 30 fps / 720p, 60 fps / 720p, 30 fps | | Alarm Output | 1 x Alarm Output | | | | Focal Length | 2.8 to 12 mm | | Lens Type | Auto Focus P-Iris | | IR Distance | 70.0' (21.3 m) | | | | Shutter Speed | 1/30 (25) to 1/30,000 | | Backlight Adjustment | Off / On | | Sense-Up | Star-Light: Off, x2 - x32 | | Wide Dynamic Range | Off / On | | Digital Noise Reduction | Off, Low, Middle, High | | White Balance | Auto / Auto-Ex / Preset / Manual | | Day/Night Mode | Day / Night / Auto | | Mirror | Mirror / Flip: Yes | | AGC | Maximum 60 dB | | Motion Operations | Motion Detection | | Programmable Privacy Zones | 16 Privacy Zones | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | Built-in | RS485 / UTP: PELCO D / PELCO C | | Digital Zoom | x1 to x16 | | | | Power Requirements | 12 VDC / 24 VAC Dual Voltage | | Power Consumption | 12 VDC: 3.43 W, 286 mA, LED On: 6.45 W, 537 mA
24 VAC: 3.3 W, 137 mA, LED On: 5.95 W, 248 mA | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | Certifications | FCC, CE, ROHS | | | | Material | Plastic | | Dimensions | 4.2 x 3.8" (10.8 x 9.7 cm) | | Weight | 0.5 lb (0.2 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.9 x 6.7 x 5.7" |
