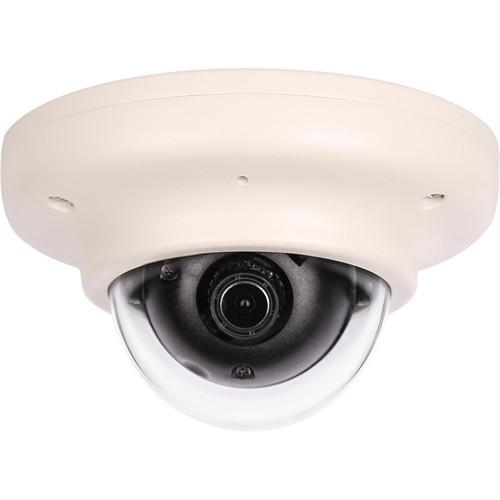

User Manual for Digital Watchdog STAR-LIGHT AHD DWC-V7753 2MP Analog HD Camera with 3.6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog STAR-LIGHT AHD DWC-V7753 2MP
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog STAR-LIGHT AHD DWC-V7753 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The STAR-LIGHT AHD DWC-V7753 2MP Analog HD Camera from Digital Watchdog features an Omnivision 1/2.7" CMOS sensor and a 3.6mm fixed lens. This STAR-LIGHT AHD HD camera uses existing coaxial cables to transmit crystal-clear detailed 1080p images. The cameras offer 2.1MP resolution along with other features such as digital WDR and true day/night function. DWC-V7753 can work with VMAX AHD DVRs, offering an easy upgrade from analog to high-definition surveillance using existing infrastructure. - Omnivision 1/2.7" CMOS sensor allows the camera to record HD videos with maximum frame rate of 30 fps
- Features STAR-LIGHT super low light technology
- Supports various functions like Smart 3D DNR, HME, true day/night, AGC, BLC, DRC, and AWB
- Secondary video-BNC output
- OSD control via coax cable using UTC
- Programmable privacy zones
- IP67 certified weather resistant housing
UPC: 813379015762 In the Box Digital Watchdog STAR-LIGHT AHD DWC-V7753 2MP Analog HD Camera with 3.6mm Fixed Lens (NTSC) Limited 5-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog STAR-LIGHT AHD DWC-V7753 2MP Analog HD Camera with 3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-V7753 Specs | | | Sensor | Omnivision 1/2.7" CMOS | | Active Pixels | H x V: 1920 x 1080 | | Scanning System | Progressive | | Frequency | 60/50 Hz | | Technology | Signal: 2 MP AHD | | Synchronization | Internal | | Resolution | 1920 x 1080 (1080p) | | Minimum Illumination | Color: 1.0 lux @ f/1.4 (30 IRE) | | S/N Ratio | 55 dB | | Video Output | AHD 30 fps @ 1080p / 60 fps @ 720p / 30 fps @ 720p | | | | Focal Length | 3.6 mm | | Type | Fixed | | | | Shutter Speed | 1/30 (25) to 1/30,000 sec | | Backlight | Off / On | | Sense-Up | STAR-LIGHT: Off, x2 to x32 | | Wide Dynamic Range | Off / On | | Digital Noise Reduction | Off, Low, Middle, High | | White Balance | Auto / Auto-Ex / Preset / Manual | | Day/Night | Day / Night / Auto | | Flip / Mirror | Yes | | AGC (Automatic Gain Control) | Maximum 60 dB | | Motion Detection | Yes | | Programmable Privacy Zones | 4 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | Digital Zoom | x1.0 to x16.0 | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP67 (weather and dust resistant) | | Certifications | FCC, CE, ROHS | | | | Power Requirements | 12 VDC | | Power Consumption | 3.06 W, 255 mA | | | | Material | Aluminum | | Dimensions | 4.1 x 2.4" (10.5 x 6.1 cm) | | Weight | 0.95 lb (0.43 kg) |
