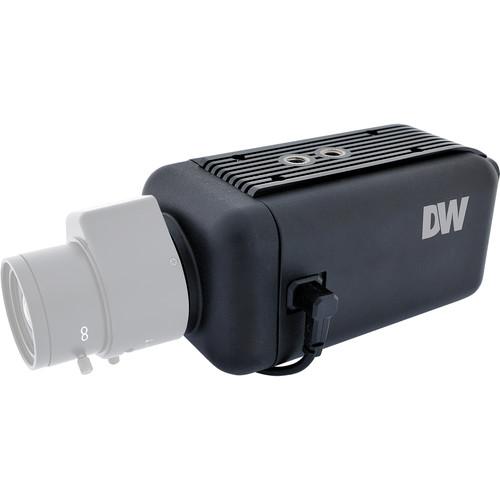

Product description The DWC-C223W 2.1MP Universal HD Analog Box Camera from Digital Watchdog uses a 2.1MP 1/3" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at up to 30 fps. It is compatible with C/CS mount lenses. STAR-LIGHT technology enables the camera to record in low-light conditions.
This box camera sends AHD, HD-TVI, HD-CVI, and all analog signals to 960H. UTC (Up-the-Coax) technology allows for OSD control of the camera. An icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings. This camera is compatible with Digital Watchdog's VMAX A1 DVRs (available separately). - Compatible with Digital Watchdog's VMAX A1 DVRs (available separately)
- Compatible with C/CS mount lenses
- Universal HD analog output
- STAR-LIGHT technology for visibility in low-light conditions
- Mechanical IR cut filter enables true day and night functionality
- 100 db wide dynamic range
- Up to 16programmable privacy zones
- Auto sensing 24 VAC / 12 VDC with line lock
- FCC, CE, and RoHS certified
UPC: 813379019883 In the Box Digital Watchdog STAR-LIGHT DWC-C223W 2.1MP Universal HD Analog Box Camera (No Lens) Alarm Out / RS-485 Cable 2P Terminal Block CS Mount Wrench C-Mount Adapter Iris Plug Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog STAR-LIGHT DWC-C223W 2.1MP Universal HD Analog Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-C223W Specs | | | Sensor | 2.1 MP 1/3" Progressive Scan CMOS Sensor | | Active Pixels | 1944 x 1092 | | Frequency | 60/50 Hz | | Video Output | HD-Analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS Analog up to 960H | | Synchronization | Internal | | Resolution | 1920 x 1080 at 30 fps | | Minimum Illumination | Color: 0.02 Lux at f/1.2, 30 IRE | | S/N Ratio | 55 dB | | Signal Technology | Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI, and all Analog to 960H Signal Support | | | | Shutter Speed | 1/30,000 to 1/30(25) Seconds | | Backlight | Off, On | | Highlight Masking Exposure | Yes | | Star-Light | Sense-Up: Off, x2 to x32 | | Wide Dynamic Range | 100 dB (Off, On) | | 3D-DNR | Off, Low, Middle, High | | White Balance | Auto, Auto-Ex, Preset, Manual | | Day and Night | Day, Night, Auto | | Mechanical IR Cut Filter | Yes | | Flip/Mirror | Yes | | Automatic Gain Control | Maximum 60 dB | | Motion Detection | Yes | | Defog | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | RS-485 Protocol | Pelco D, Pelco C | | | | Power | 12 VDC / 24 VAC (Dual Voltage) | | Power Consumption | 12 VDC: 2.45 W
24 VAC: 2.4 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | Less than 90%, Non-Condensing | | Certifications | FCC, CE, RoHS | | Material | Metal | | Dimensions | 4.71 x 2.31 x 2.44" / 119.7 x 58.8 x 62 mm | | Weight | 0.7 lb / 317.5 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.0 x 3.9 x 3.4" |
