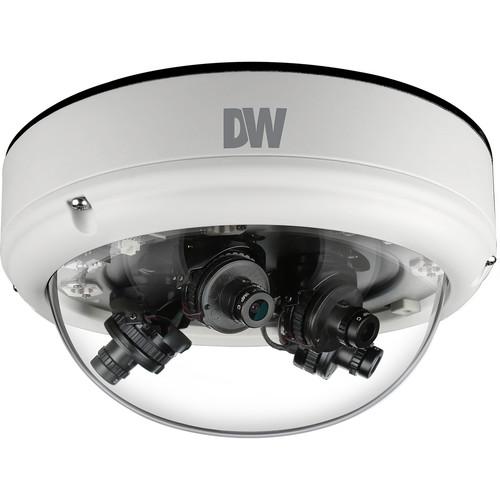

User Manual for Digital Watchdog STAR-LIGHT FLEX 8MP Multi-Sensor AHD Outdoor Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog STAR-LIGHT FLEX 8MP Multi-Sensor
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
 |
User manual for the Digital Watchdog STAR-LIGHT FLEX 8MP Multi-Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|

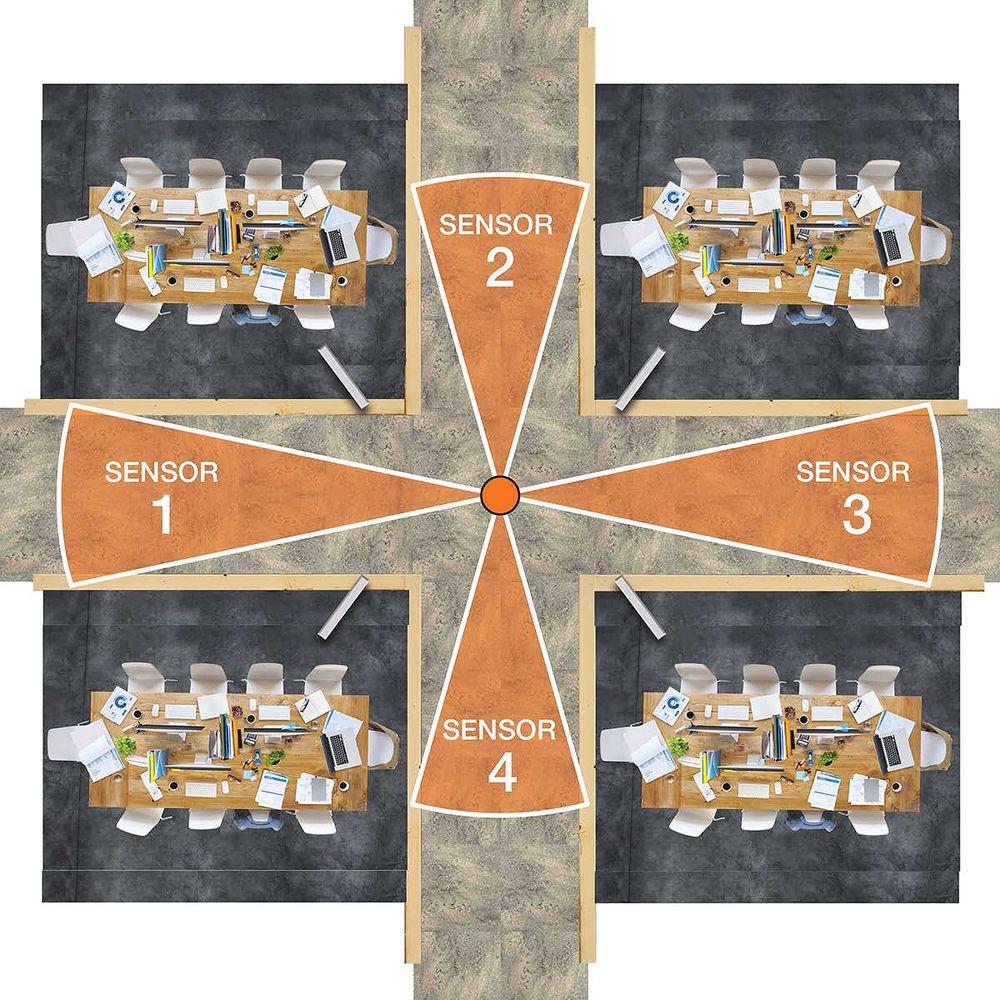

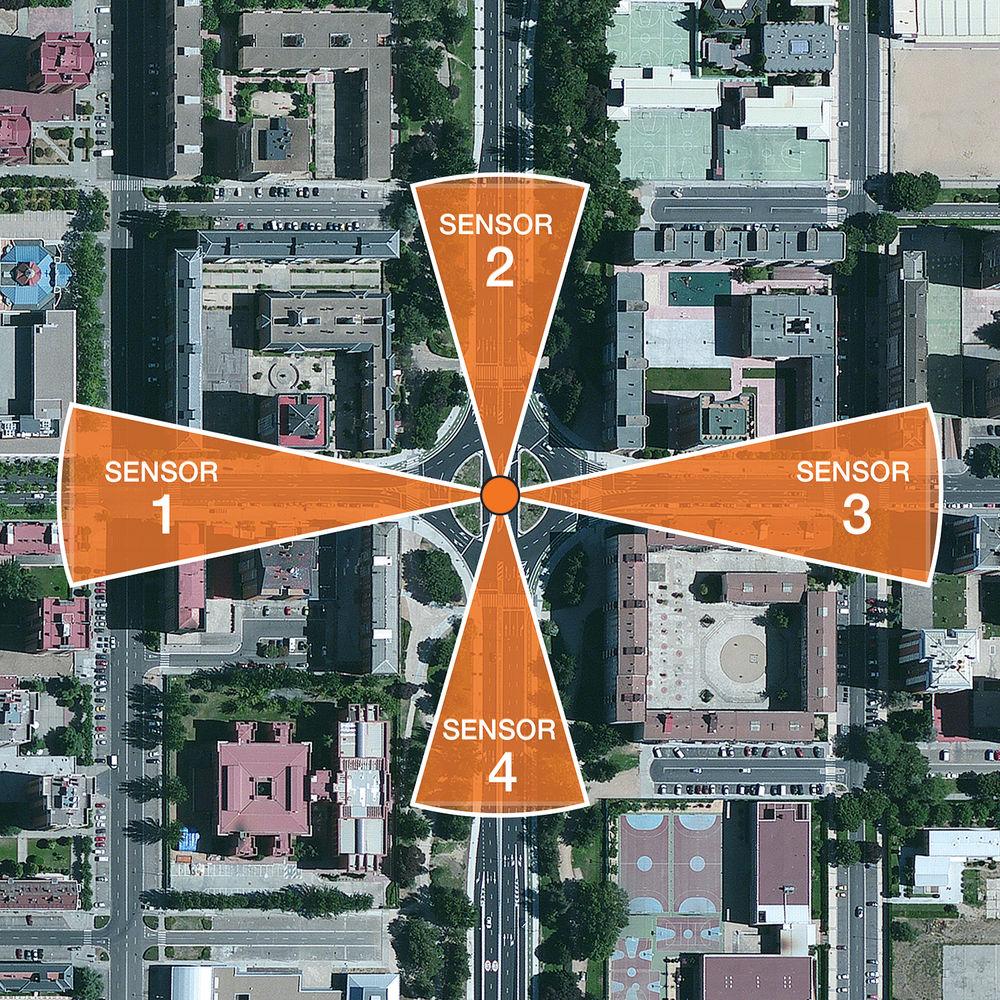

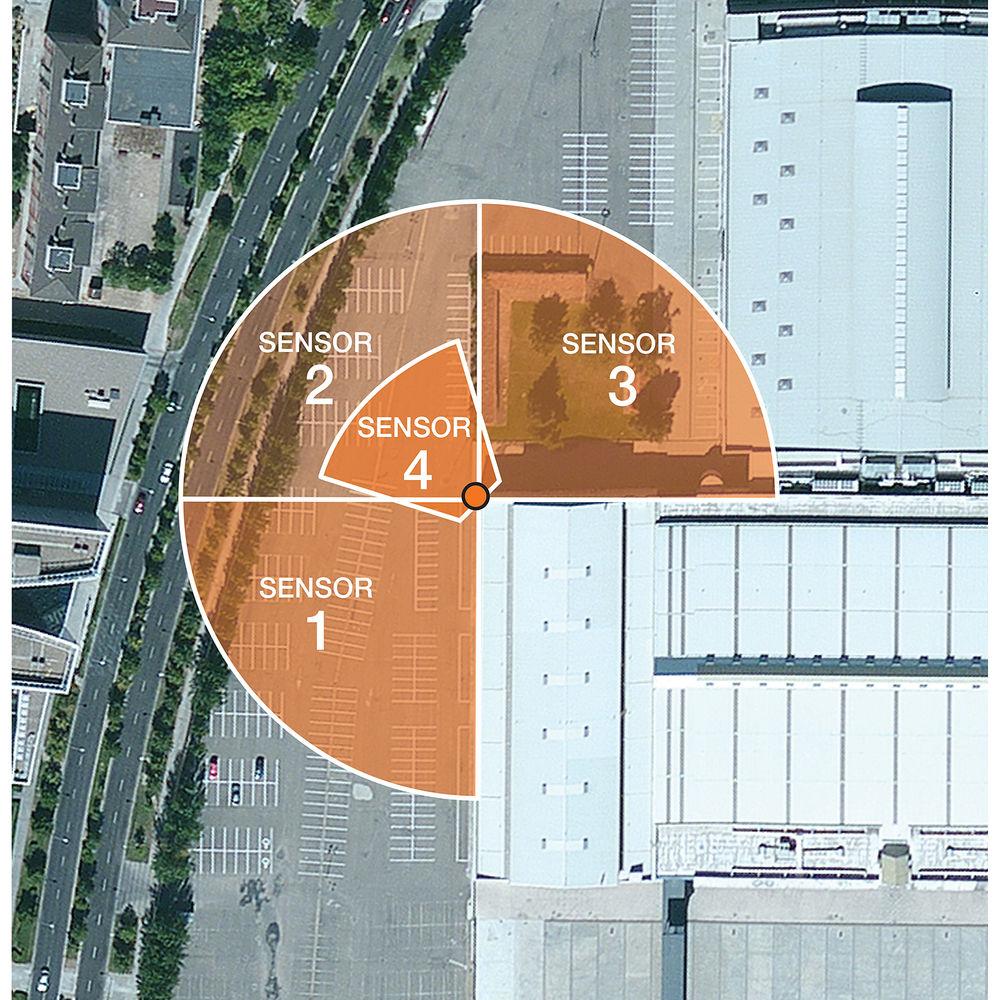

Product description Monitor up to four indoor or outdoor areas with the STAR-LIGHT FLEX 8MP Multi-Sensor AHD Outdoor Dome Camera from Digital Watchdog. The camera has four fixed lenses to capture four individual 1920 x 1080 resolution video streams at up to 30 fps each. Each lens can be adjusted via a magnetic mount to position it in the needed direction. STAR-LIGHT technology and its mechanical IR cut filter allow the camera to produce clear images in low-light conditions, while wide dynamic range and Smart 3D digital noise reduction further help the camera capture accurate images in varying lighting conditions. Housed in an IP66-rated enclosure, this camera is protected from dust and water, making it suitable for outdoor use. - Four 1/3" progressive scan CMOS sensors produce four 1920 x 1080 resolution video streams at up to 30 fps
- Monitor four areas at once in 1080p over coax cable using AHD technology
- Low-light recording with STAR-LIGHT technology, mechanical IR cut filter, WDR, and Smart 3D-DNR

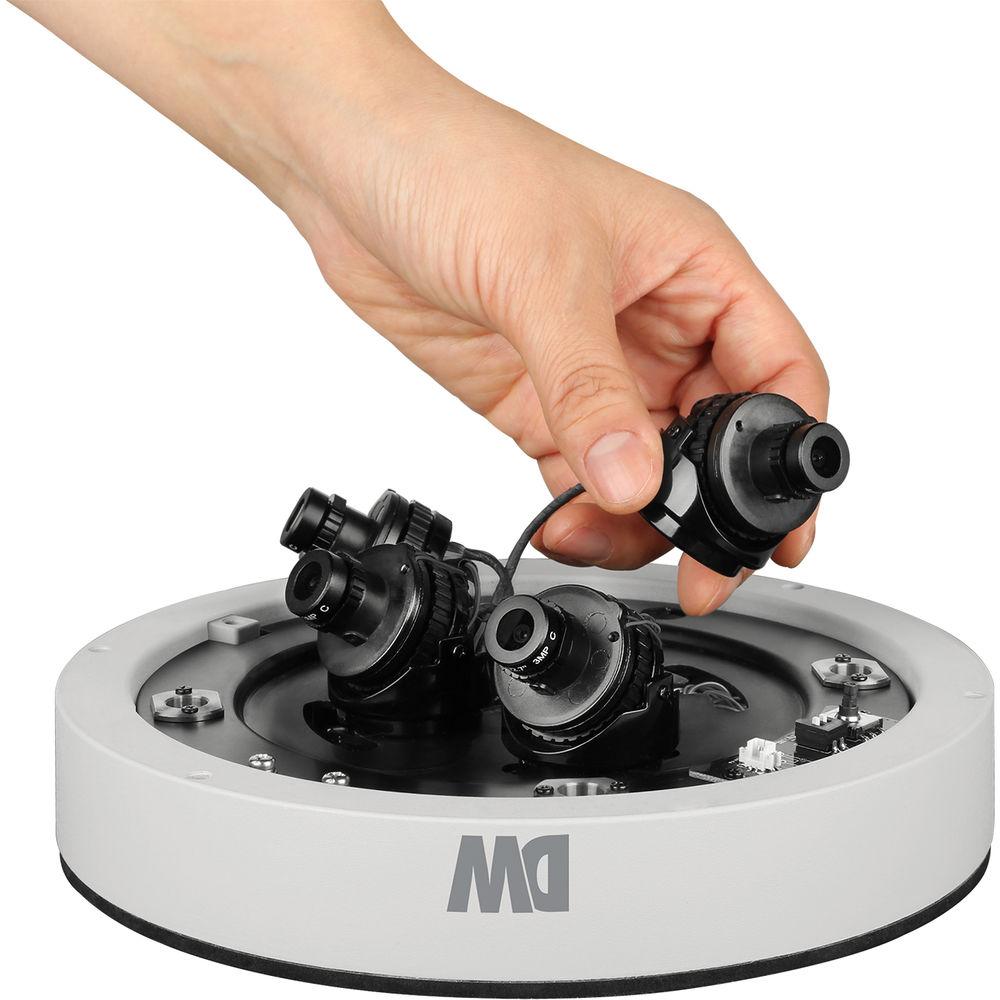

- Adjustable sensors via magnets
- OSD control over coax cable (UTC)
- Highlight Masking Exposure (HME)
- Programmable privacy zones
- Auto gain control, backlight compensation, and auto white balance to enhance images
- Auto-sensing 12 VDC/24 VAC power with line lock
- De-Fog extreme weather image compensation
- IP66-rated enclosure for outdoor use
UPC: 813379018329 In the Box Digital Watchdog STAR-LIGHT FLEX 8MP Multi-Sensor AHD Outdoor Dome Camera (4 x 4mm Lenses) Mounting Hardware Mounting Template Torx Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog STAR-LIGHT FLEX 8MP Multi-Sensor AHD Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog FLEX Series Specs | | | Image Sensor | 4 x 2.1 MP 1/3" progressive scan CMOS sensors | | Active Pixels | 4 x 1944 x 1092 | | Frequency | 50/60 Hz | | Signal Technology | AHD | | Synchronization | Internal | | Resolution | 8 MP total (4 x 2.1 MP)
4 x 1920 x 1080 at 30 fps | | Minimum Illumination | Color: 0.06 lux at f/2.0, 30 IRE
B&W: 0.01 lux at f/2.0, 30 IRE | | S/N Ratio | 55 dB | | Video Output | BNC coax | | Alarm Output | 4 x alarm outputs | | | | Focal Length | 4 x 4mm lenses | | Lens Type | Fixed lens | | | | Shutter Speed | 1/30 (1/25) to 1/30,000 sec | | Backlight Compensation | Off, on | | Sense-Up | STAR-LIGHT: Off, 2-32x | | Wide Dynamic Range | Off, on | | Digital Noise Reduction | Off, low, middle, high | | White Balance | Auto, auto-ex, preset, manual | | Day/Night | Mechanical IR cut filter
Day, night, auto | | Flip / Mirror | Supported | | AGC (Automatic Gain Control) | Up to 60 dB | | Motion Detection | 15 zones per camera (60 total) | | Privacy Zone | 24 masks per camera (96 total) | | Sharpness | 0-10 | | Gamma | 0.5 | | Control | RS-485 (Pelco D), UTP built-in (A-PC) | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | <90% (non-condensing) | | IP Rating | IP66 | | Certifications | FCC, CE, RoHS | | | | Power Requirements | 12 VDC or 24 VAC dual voltage | | Power Consumption | 12 VDC: 8.36 W, 696 mA
24 VAC: 8.36 W, 348 mA | | | | Material | Aluminum | | Dimensions | 7.5 x 3.5" (192 x 89.5 mm) | | Weight | 4.4 lb (2 kg) | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 10.8 x 10.2 x 7.6" |
