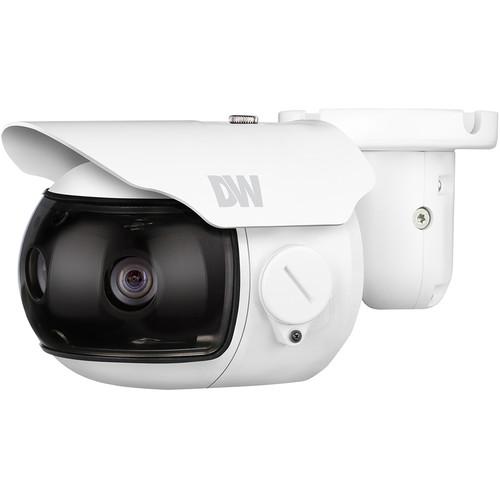

User Manual for Digital Watchdog STAR-LIGHT PANO 6MP Multi-Sensor AHD Outdoor Panoramic Bullet Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog STAR-LIGHT PANO 6MP Multi-Sensor
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
 |
User manual for the Digital Watchdog STAR-LIGHT PANO 6MP Multi-Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|

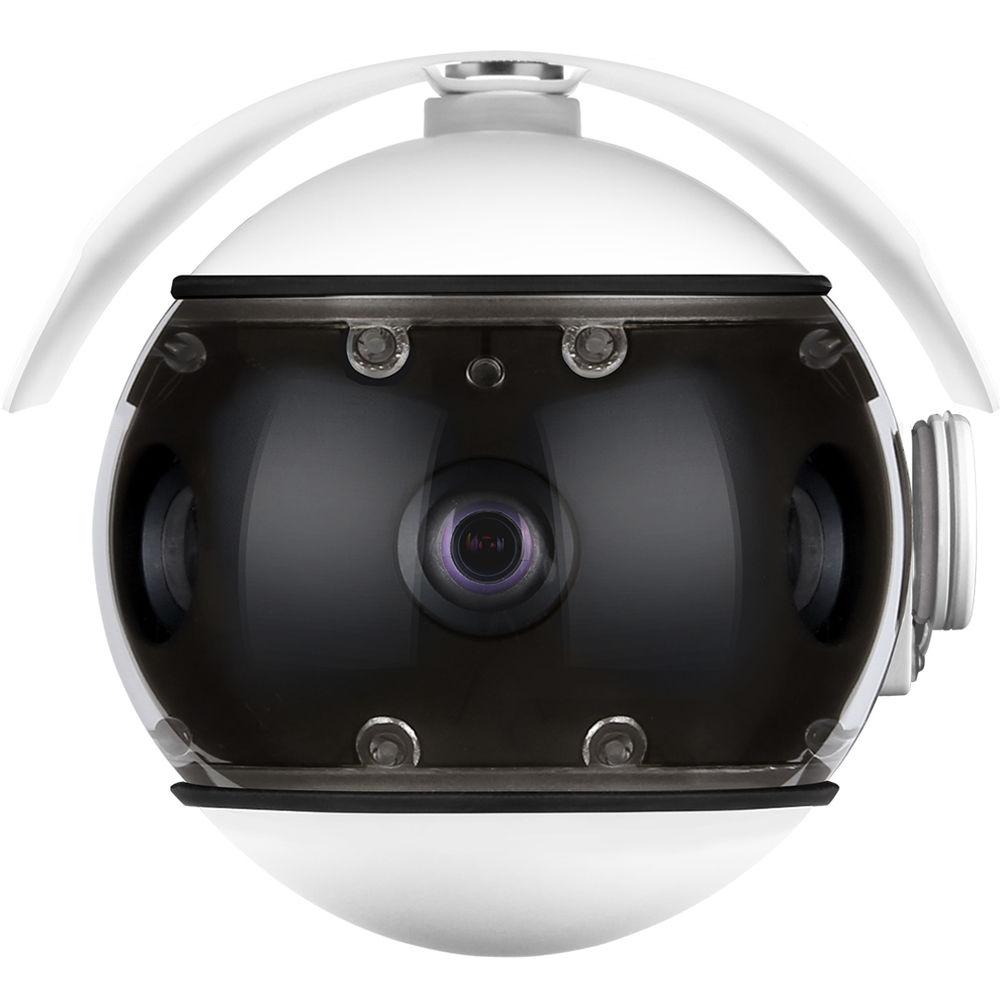

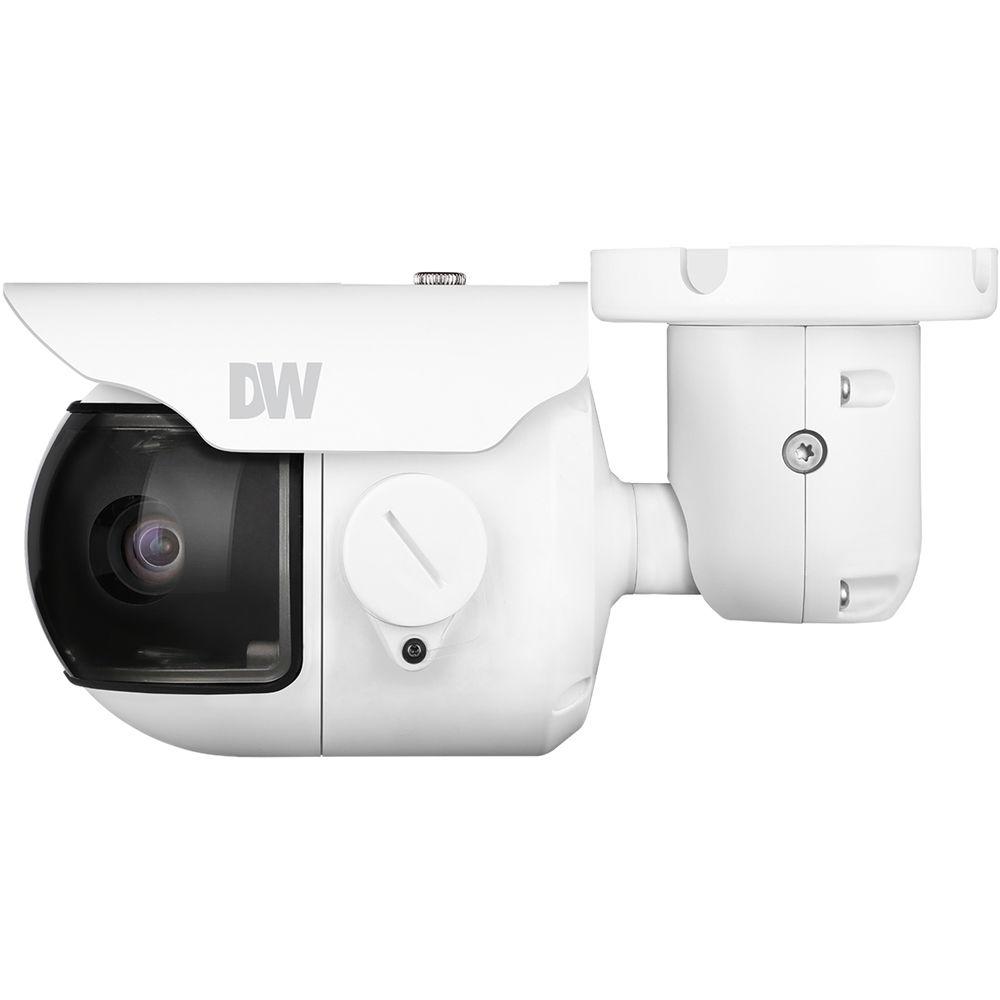

Product description Monitor a large outdoor area with the STAR-LIGHT PANO 6MP Multi-Sensor AHD Outdoor Panoramic Bullet Camera from Digital Watchdog. The camera has three fixed lenses to capture three individual 1920 x 1080 resolution video streams at up to 30 fps each, and a fourth, 180° panoramic stream. STAR-LIGHT technology and its mechanical IR cut filter allow the camera to produce clear images in low-light scenes, while wide dynamic range and digital noise reduction further help the camera capture accurate images in varying lighting conditions. AHD technology allows for high-definition video over standard coax cable, eliminating the need for new cable runs. Housed in an IP66-rated enclosure, this camera is protected from dust and water, making it suitable for outdoor use. - Three 1/3" progressive scan CMOS sensors produce three 1920 x 1080 resolution video streams at up to 30 fps
- Monitor a large area in 1080p over coax cable using AHD technology
- Three 4.3mm lenses have a combined 180° panoramic field of view
- Low-light recording with STAR-LIGHT technology, mechanical IR cut filter, WDR, and Smart 3D-DNR
- OSD control over coax cable (UTC)
- Highlight Masking Exposure (HME)
- Programmable privacy zones
- Auto gain control, backlight compensation, dynamic range compressor (DRC), and auto white balance to enhance images
- 12 VDC/24 VAC dual voltage
- De-Fog extreme weather image compensation
- IP66-rated enclosure for outdoor use
UPC: 813379016868 In the Box Digital Watchdog STAR-LIGHT PANO 6MP Multi-Sensor AHD Outdoor Panoramic Bullet Camera Sunshield Test Monitor Cable Mounting Hardware Mounting Template T-Wrench Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog STAR-LIGHT PANO 6MP Multi-Sensor AHD Outdoor Panoramic Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Digital Watchdog STAR-LIGHT PANO 6MP Multi-Sensor AHD Outdoor Panoramic Bullet Camera can be downloaded in PDF format at the link stated below.
Technical parametersDigital Watchdog DWC-PB753WTW Specs | | | Image Sensor | 3 x Panasonic 2 MP 1/3" progressive scan CMOS sensors | | Active Pixels | 3 x 1944 x 1092 | | Frequency | 50/60 Hz | | Signal Technology | AHD | | Synchronization | Internal | | Resolution | 6 MP total (3 x 2 MP)
3 x 1920 x 1080 at 30 fps | | Minimum Illumination | Color: 0.06 lux at f/2.0, 30 IRE
B&W: 0.01 lux at f/2.0, 30 IRE | | S/N Ratio | 55 dB | | Video Output | BNC coax | | Alarm Output | 3 x alarm outputs | | | | Focal Length | 3 x 4.3mm lenses | | Lens Type | Fixed lens | | | | Shutter Speed | 1/30 (1/25) to 1/30,000 sec | | Backlight Compensation | Off, on | | Sense-Up | STAR-LIGHT: Off, 2-32x | | Wide Dynamic Range | Off, on | | Digital Noise Reduction | Off, low, middle, high | | White Balance | Auto, auto-ex, preset, manual | | Day/Night | Mechanical IR cut filter
Day, night, auto | | Flip / Mirror | Supported | | AGC (Automatic Gain Control) | Up to 60 dB | | Motion Detection | 3 zones per camera | | Privacy Zone | 16 zones per camera | | Sharpness | 0-10 | | Gamma | 0.5 | | Control | RS-485 (Pelco D and C) | | Digital Zoom | 1-16x | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | <90% (non-condensing) | | IP Rating | IP66 | | Certifications | FCC, CE, RoHS | | | | Power Requirements | 12 VDC or 24 VAC dual voltage | | Power Consumption | 12 VDC: 8.5 W, 708 mA
24 VAC: 8.5 W, 354 mA | | | | Material | Aluminum | | Dimensions | 9.9 x 3.58" (252 x 91 mm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 13.1 x 8.1 x 7.0" |
