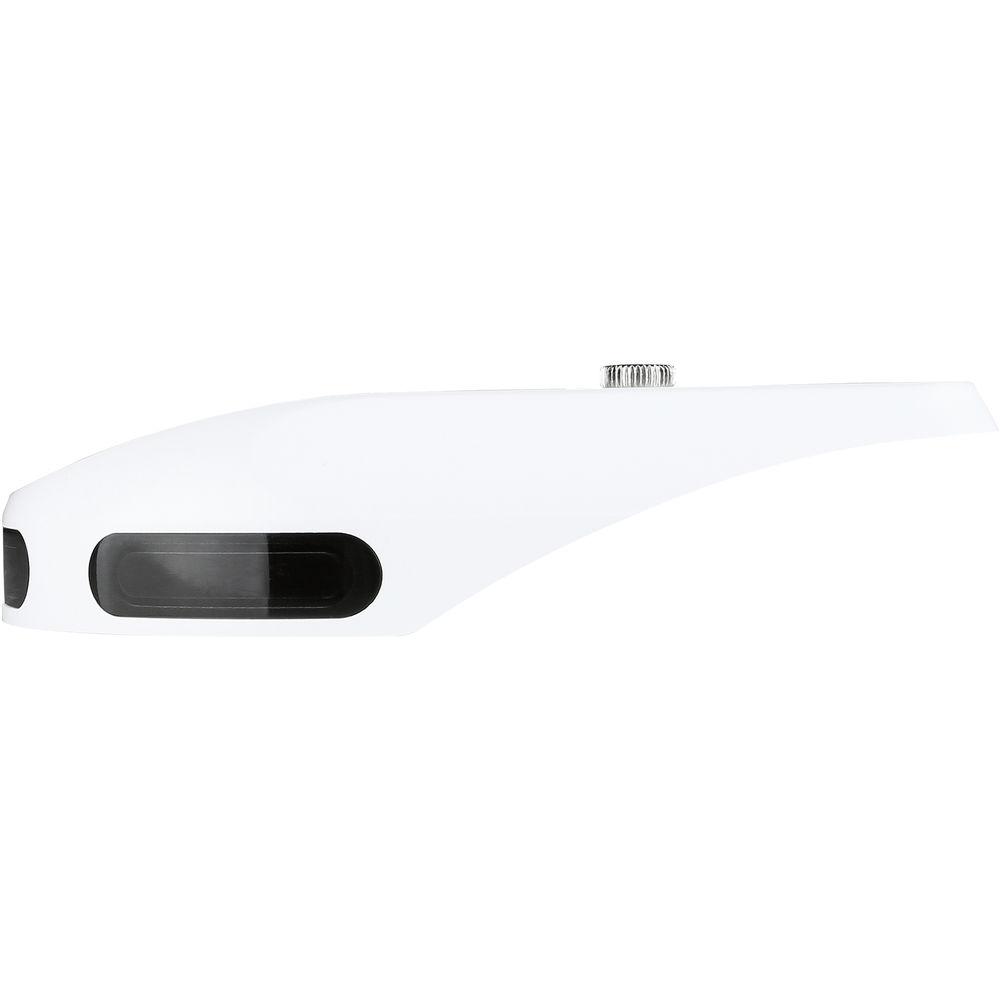

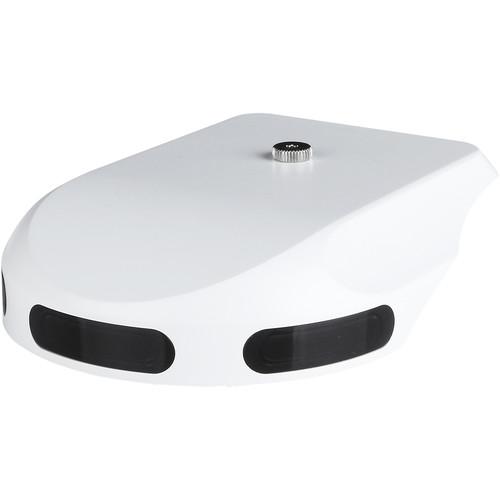

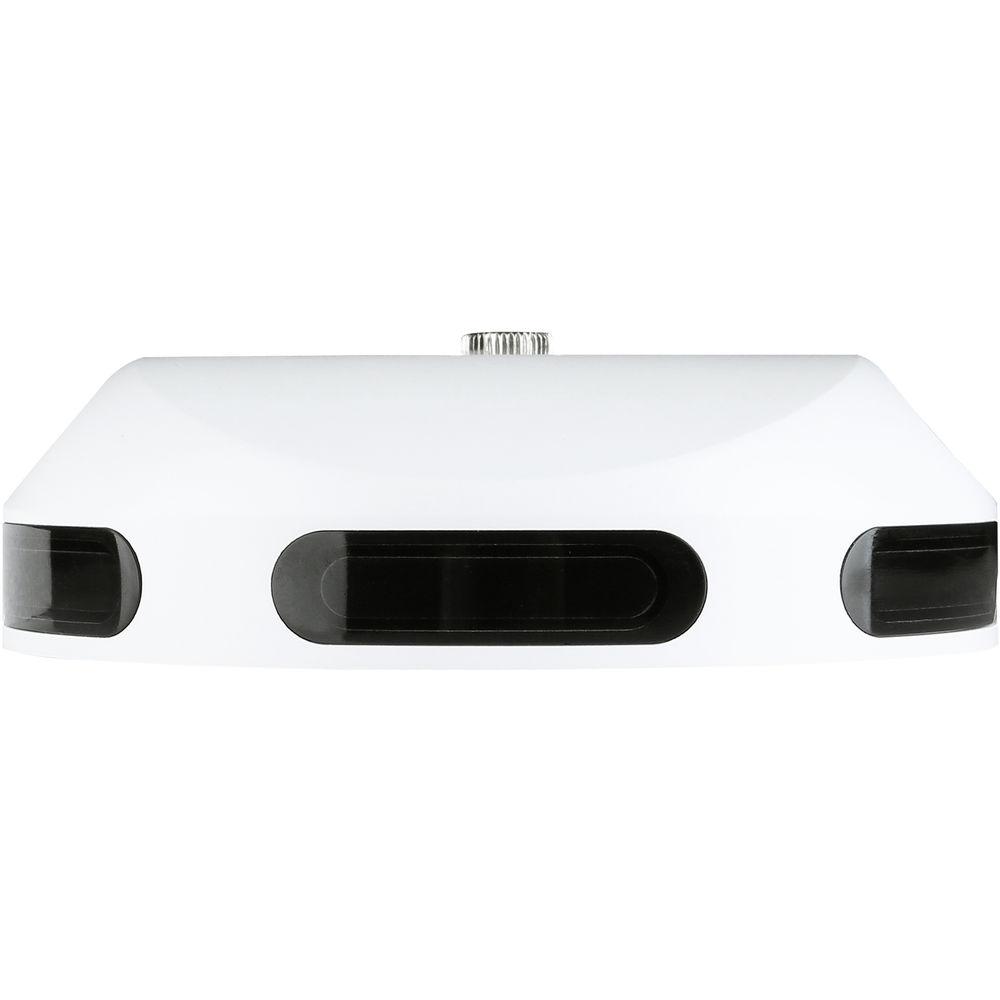

Product description This Sunshield with IR Illuminators from Digital Watchdog is a weather- and tamper-resistant infrared (IR) illuminator for MEGApix PANO 6MP three-sensor panoramic bullet cameras. The accessory allows the camera to capture monochromatic video of objects and people up to 100' away in extreme low light. The illuminator is mounted directly to the camera, replacing its sunshield for easy installation. It is perfect for both indoor and outdoor installations, and can start in temperatures as low as -40°F. - Six high-power LEDs for 180° of IR illumination
- IR illumination mounts directly to the camera
- IP66 weather- and tamper-resistant
UPC: 813379019197 In the Box Digital Watchdog Sunshield with IR Illuminators for MEGApix PANO Panoramic Bullet Cameras Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Sunshield with IR Illuminators for MEGApix PANO Panoramic Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-EXTIR100 Specs | LEDs | 6 x high-power LEDs (3 x 2 LEDs sensor) | | Horizontal Angle of View | 180° | | IR Range | 100' / 30 m | | Synchronization | External Input High: LED on
External Input Low: LED off | | Supported Cameras | DWC-PB6M4T MEGApix PANO 6 MP IP bullet camera | | Power Consumption | 12 VDC / 24 VAC: 11 W maximum | | Power Requirements | 12 VDC / 24 VAC dual voltage | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | <90% (non-condensing) | | IP Rating | IP66 | | Certifications | FCC, CE, ROHS | | Dimensions | 5.06 x 6.28 x 1.45" / 12.9 x 16.0 x 3.9 cm | | Weight | 1.2 lb / 544 g | | | | Package Weight | 1.23 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 3.0" |
