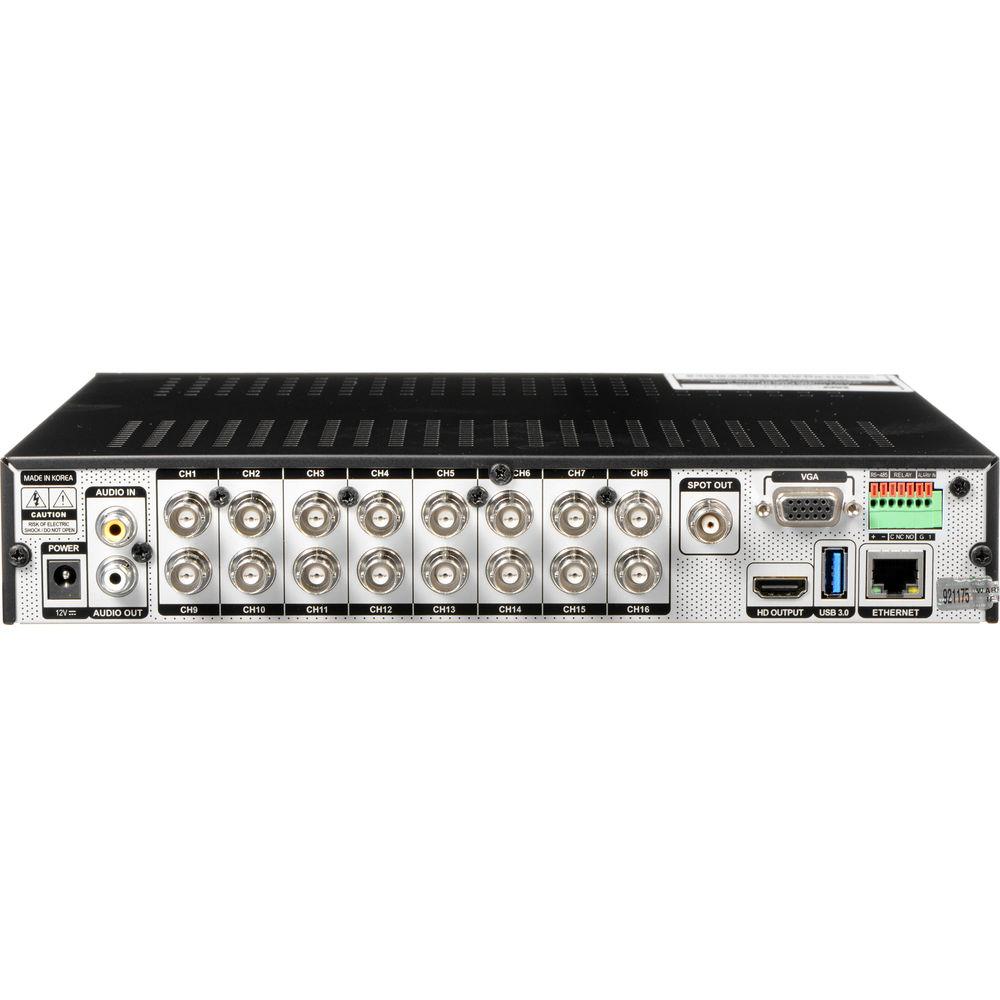

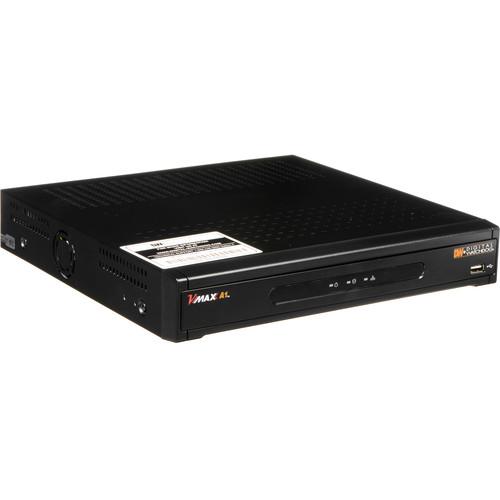

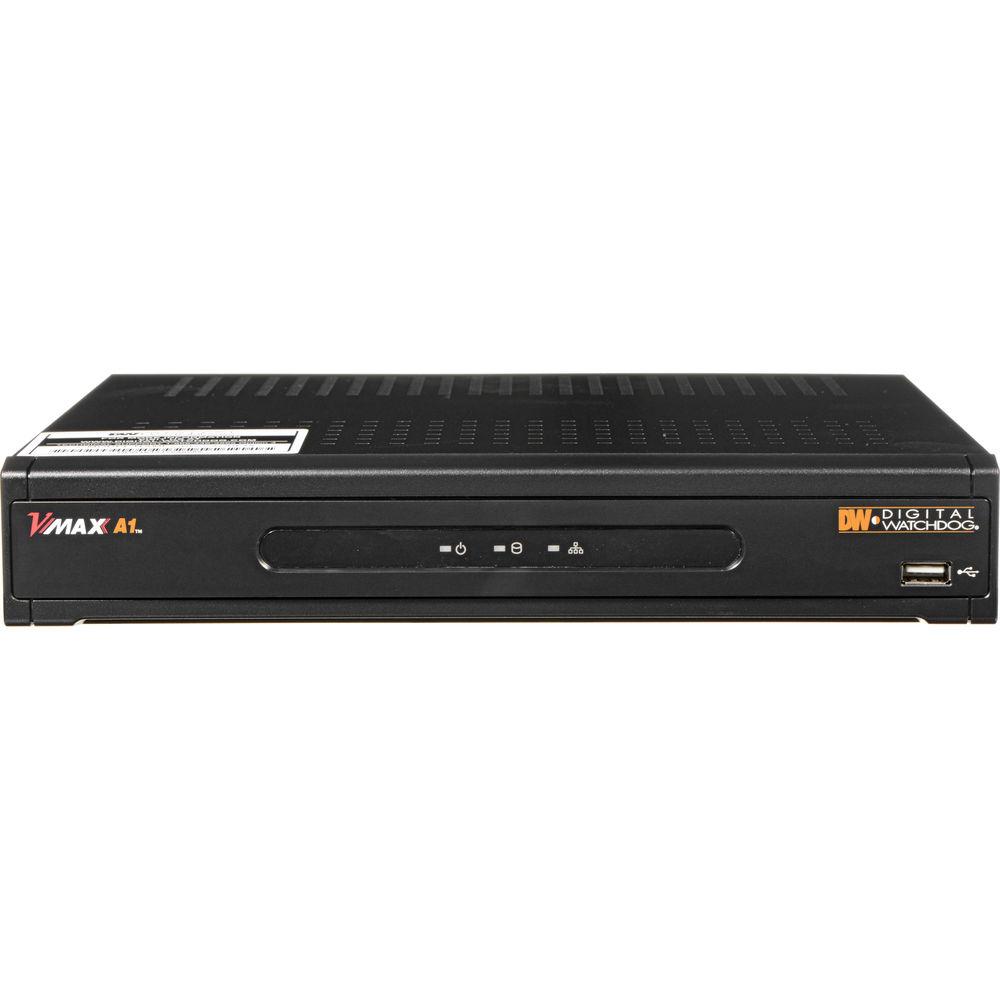

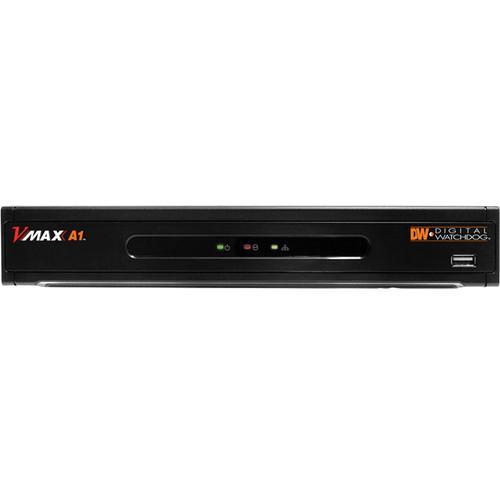

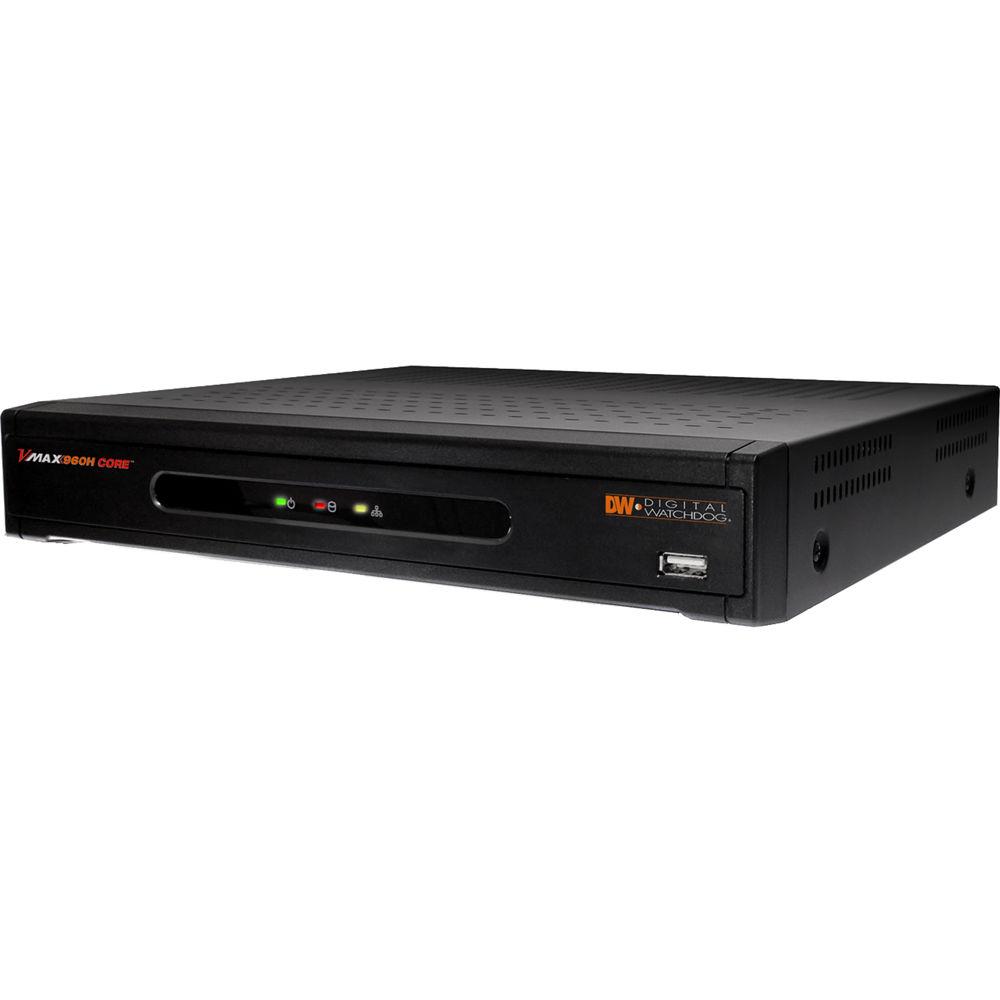

Product description Compatible with analog video systems, the VMAX A1 Series 16-Channel 1080p Analog HD DVR from Digital Watchdog can support up to 3840 x 2160 resolution at 30 fps over BNC cabling. The DVR can be connected to 16 cameras simultaneously and features an audio input and output, as well as a sensor input and output for adding other surveillance devices to your system. HDMI and VGA video outputs allow you to display video in high-definition resolutions on an HDTV or monitor, and an RS-485 interface provides support for PTZ cameras and controllers. A USB 2.0 port and a USP 3.0 port enable you to navigate the device with a USB mouse and transfer data to an external storage device such as a computer or NAS.
The DVR features an Ethernet connection for connecting the recorder to a network, offering remote viewing through an iOS or Android mobile application. The device can be accessed by up to 10 users at once, and each viewer can simultaneously view live video, play back recordings, and configure the DVR. When connected to the network, you can also receive event notifications to your mobile device via email, text, or Pivot CMS. The DVR comes with 4TB of storage, and can house a SATA-II or SATA-III hard drive. A Graphical User Interface (GUI) offers easy setup and operation. An optional IR remote control is available for purchase separately. - Compatible with all analog HD resolutions
- Pivot central management software (up to 128 channels)
- Mobile application for iOS and Android smart phones and tablets
- Mac compatible remote ACS software
- Intuitive graphical user interface (GUI)
- HDD calculation and auto recording configuration
- Event notifications via email, text, and Pivot CMS
- Advanced H.264 embedded DVR
- Simultaneous live view, playback, record, backup, network, and configuration
- 1 audio input and 1 audio output
- 1 sensor input and 1 relay output
- Comes with simple DDNS service
- Easy web-based client with multi-user access
- Help menu for major functions
- Auto and manual firmware upgrades available
UPC: 813379016196 In the Box Digital Watchdog VMAX A1 Series 16-Channel 1080p Analog HD DVR with 4TB HDD 12 VDC Adapter and Power Cable USB Mouse and Screws Limited 5-Year Warranty Brochure PDF 299.3kbxsxrtzwtwatdztfvvvvffawr Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog VMAX A1 Series 16-Channel 1080p Analog HD DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog VMAX A1 Specs | | | Video Input | 16 channels | | Video Signals | Analog signal up to 960H and Analog HD | | Frame Rate | Analog HD: 3840 x 2160, 2560 x 1960, 2048 x 1536, 1920 x 1080, 1280 x 720
Analog: 700 TVL | | Resolution | 1920 x 1080, 960 x 480, 960 x 240, 480 x 240 | | Video Output | 1 x HDMI
1 x VGA | | Audio | 1 x Input
1 x Output
Codec: PCM | | Alarm | 1 x Sensor input
1 x Output | | Operating System | Embedded Linux | | Serial | 1 x RS-485 for PTZ camera and controller | | USB | 1 x USB 2.0
1 x USB 3.0 | | Menu Display | Graphical User Interface (GUI) | | Control | IR remote control (available separately)
USB mouse | | Screen Display | 1, 4, 9, 16 sequence | | Screen Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1024 x 768 | | | | Compression | H.264 | | Recording Modes | Schedule, Event, Time-lapse, Continuous, Pre & post event, Motion, Recording configuration per channel | | Pre-Recording | 1 to 5 seconds | | Post Recording | 5 to 15 seconds | | Recording Rate | 480 fps at up to 1080p
320 fps at 3 MP
192 fps at 5 MP | | Recording Resolution | Analog Cameras: 720p, 1080p, 3 MP, 5 MP cameras
Standard Analog Cameras: Up to 960H | | Playback Rate | 480 fps at up to 1080p
320 fps at 3 MP
192 fps at 5 MP | | Playback Resolution | Analog Cameras: 720p, 1080p, 3 MP, 5 MP cameras
Standard Analog Cameras: Up to 960H | | Fast Forward | Functions: x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32 | | Playback Functions | First data, Last data, Date / time, Record table, Calendar, Bookmark, System log | | | | HDD Interface | 1 x SATA-II or SATA-III HDD | | Storage | Includes: 4 TB
Maximum: Up to 8 TB | | External Storage | USB flash drive, USB HDD | | Health Reporting / Notifications | HDD: Temperature, S.M.A.R.T. with email notifications | | | | Camera | Color Control: Brightness, Contrast, Saturation, Hue | | Digital Zoom | Live | | Software Upgrade | USB flash drive, network upgrade, FTP remote upgrade | | Mobile OS Support | Mobile App for Apple & Android smart phones & tablets | | Channel | Covert: Live and playback | | | | Network Connection | 1 x Ethernet (Gigabit 10/100/1000 Gb/s) | | User Connections | Maximum: 10 simultaneous connections | | Transmission Speed | 480 fps at up to 1080p
320 fps at 3 MP
192 fps at 5 MP | | Protocols | Static, DDNS, DHCP, UPnP, RTSP | | Web Viewer | Live, playback, and configuration up to 10 multiple connections | | Client Monitoring | Software: Mac (Apple software), Pivot (CMS software) | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity | < 80% (non-condensing) | | Power Requirement | 12 VDC | | Power Consumption | 60 W, 5 A | | Dimensions | 11.02 x 9.65 x 1.89" (280 x 245 x 48 mm) | | Weight | 9.83 lb (4.45 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 17.4 x 17.1 x 6.5" |
