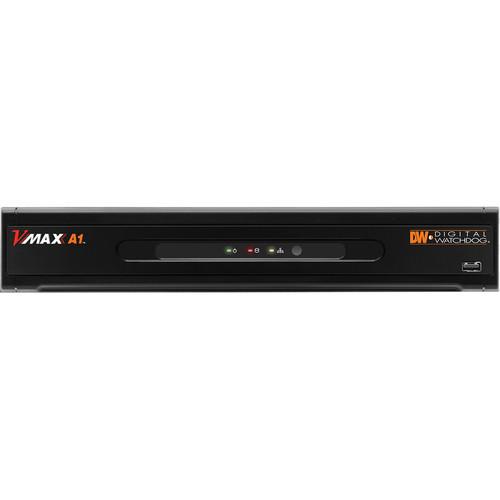

Product description Compatible with analog, TVI, and AHD cameras, the VMAX A1 Series 16-Channel 5MP DVR with Looping Output from Digital Watchdog can support up to 5MP resolution at 12 fps over BNC cabling. The DVR can be connected to 16 cameras simultaneously, and features an audio input and output, as well as four sensor inputs and one alarm output for adding other surveillance devices to your system. HDMI and VGA video outputs allow you to display video in up to UHD resolution, and two RS-485 interfaces provide support for PTZ cameras and controllers. A USB 3.0 port enables you to navigate with a USB mouse and easily transfer data to an external storage device such as a computer or NAS. This DVR features 16-channel looping output via an included DW-VLOOP module for added functionality.
The DVR features an Ethernet port for connecting the recorder to a network, offering remote viewing through an iOS or Android device via the free mobile app. The device can be accessed by up to 10 users at once and each viewer can simultaneously view live video, play back recordings, and configure the DVR. When connected to the network, you can also receive event notifications to your mobile device via email, text, or Pivot CMS. The DVR comes with 4TB of storage to record video from all 16 channels. - Compatible with all analog, TVI, and AHD resolution cameras
- 4TB HDD preinstalled to save record video
- Pivot central management software (up to 128 channels)
- Mobile app for iOS and Android devices
- Mac-compatible remote ACS software
- Intuitive graphical user interface (GUI)
- HDD calculation and auto recording configuration
- Event notifications via email, text, and Pivot CMS
- USB 3.0 and two RS-485 terminals
- Advanced H.264 embedded DVR
- Simultaneous live view, playback, record, backup, network, and configuration
- Up to 192 fps recording at 5MP resolution
- 1 audio input and 1 audio output
- 4 sensor inputs and 1 relay output
- 16-channel looping output
- Easy web-based client with multi-user access
- Help menu for major functions
- Auto and manual firmware upgrades available
UPC: 813379018077 In the Box Digital Watchdog VMAX A1 Series 16-Channel 5MP DVR with 4TB HDD and Looping Output 12 VDC Adapter and Power Cable IR Remote Control USB Mouse Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog VMAX A1 Series 16-Channel 5MP DVR with 4TB HDD and Looping Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog VMAX A1 Specs | | | Video Input | 16 channels | | Video Signals | Analog signal up to 960H and all HD analog | | Frame Rate | Live: 1-30 fps | | Resolution | Live: 720p, 1080p, 3 MP, and 5 MP, analog resolutions up to 960H | | Video Output | HD Spot: Up to 3840 x 2160 at 30 fps
VGA: D1 | | Audio | 1 x input
1 x output
Codec: PCM | | Alarm | 4 x sensor inputs
1 x output | | Operating System | Embedded Linux | | Serial | 2 x RS-485 for PTZ camera and controller
1 x USB 3.0 | | Menu Display | Graphical User Interface (GUI) | | Control | IR remote control, USB mouse | | Screen Display | 1, 4, 9, 16 sequence | | Screen Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1024 x 768 | | | | Compression | H.264 | | Recording Modes | Schedule, event, panic, continuous, pre- and post-event, motion, recording configuration per channel | | Pre Recording | 1 to 5 sec | | Post Recording | 5 to 15 sec | | Recording Rate | Up to 480 fps total at 1080p
Up to 320 fps total at 3 MP
Up to 192 fps total at 5 MP | | Recording Resolution | 720p, 1080p, 3 MP, and 5 MP and all analog resolutions up to 960H | | Playback Rate | Up to 480 fps total at 1080p
Up to 320 fps total at 3 MP
Up to 192 fps total at 5 MP | | Playback Resolution | 720p, 1080p, 3 MP, and 5 MP and all analog resolutions up to 960H | | Fast Forward | Functions: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32x | | Playback Functions | First data, last data, date/time, record table, calendar, bookmark, system log | | | | HDD Interface | 2 x SATA II or SATA III HDD | | Storage | 4 TB preinstalled, supports up to 16 TB (2 x 8 TB) | | External Storage | USB flash drive, USB HDD | | Health Reporting / Notifications | HDD: Temperature, S.M.A.R.T with email notifications | | | | Camera | Color Control: Brightness, contrast, saturation, hue | | Digital Zoom | Live | | Software Upgrade | USB flash drive, network upgrade, FTP remote upgrade | | Mobile App Support | iOS and Android | | Channel | Covert: Live and playback | | | | Network Connection | 1 x Ethernet Gigabit 10/100/1000 | | User Connections | Maximum: 10 simultaneous connections | | Transmission Speed | Up to 480 fps total at 1080p
Up to 320 fps total at 3 MP
Up to 192 fps total at 5 MP | | Protocols | Static, DDNS, DHCP, UPnP, RTSP | | Web Viewer | Live, playback, and configuration up to 10 multiple connections | | Client Monitoring | Software: Mac (Apple software), Pivot (CMS software) | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity | <80% non-condensing | | Power Requirement | 12 VDC | | Power Consumption | 60 W, 5 A | | Dimensions | 14.2 x 14 x 2.6" (36 x 35.6 x 6.6 cm) | | Weight | 5.6 lb (2.5 kg) | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 6.5" |
