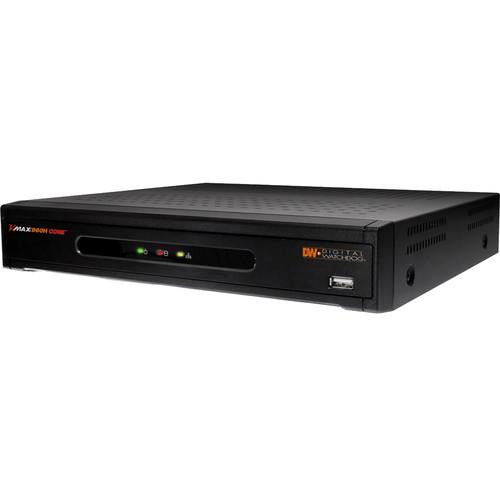

Product description Compatible with analog signal and all HD analog video systems, the VMAX A1 Series Universal HD 4-Channel 960H DVR from Digital Watchdog can support up to 1920 x 1080p resolution at 30 fps over BNC cabling. The DVR can be connected to 4 cameras simultaneously, and it features an audio input and output as well as a sensor input and an alarm output for adding other surveillance devices to your system. An HD, spot, and VGA video output allow you to display video in high-definition resolutions on an HDTV or HD monitor, and an RS-485 interface provides support for keyboard and PTZ control. Two USB 2.0 ports enable you to navigate the device with a USB mouse and easily transfer data to an external storage device such as a computer or NAS.
The DVR features an Ethernet connection for connecting the recorder to a network, offering remote viewing through an Apple or Android mobile application. The device can be accessed by up to 10 users at once, and each viewer can simultaneously view live video, playback recordings, and configure the DVR. When connected to the network, you can also receive event notifications to your mobile device via email, text, or Pivot CMS. The DVR comes with up to 1TB of storage, and it uses a SATA-II / SATA-III hard drive for housing your internal storage. A Graphical User Interface (GUI) offers easy setup and operation, and the package includes an IR remote control and power cabling for additional convenience. - Universal HD DVR records all HD analog formats and all analog to 960H
- Real time 30 fps recording up to 1080p
- Support up to 3MP HD analog cameras (limited support)
- Pivot central management software (up to 128 channels)
- Event camera group recording
- Mobile application for iPhone, iPad, iPod, and Android smartphones and tablets, and Apple TV
- MAC compatible remote ACS software
- VMAX 2.0 intuitive graphical user interface (GUI)
- OSD and PTZ control via coax (UTC)
- Signal hybrid – detects any camera at any input automatically
- HDD calculation and auto recording configuration
- Event notifications via email, text, and Pivot CMS
- Advanced H.264 embedded DVR
- Simultaneous live view, playback, record, backup, network, and configuration
- Digital spot monitoring output at D1 resolution
- Easy web-based client with multi-user access
- Help menu for major functions
UPC: 813379016066 In the Box Digital Watchdog VMAX A1 Series Universal HD 4-Channel 960H DVR with 1TB HDD 12 VDC Adaptor Power Cable USB Mouse and Screws Limited 5-Year Warranty Brochure PDF 326.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog VMAX A1 Series Universal HD 4-Channel 960H DVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog VMAX A1 Specs | | | Video Input | 4 channels | | Video Signals | Analog signal up to 960H, all HD analog | | Frame Rate | Max: 30 fps | | Resolution | All HD analog 720p, 1080p, and 3MP (limited support) and all analog resolutions up to 960H | | Video Output | HD Output, spot Output (D1 display resolution), VGA | | Audio | 1 x input
1 x output
Codec: PCM | | Alarm | 1 x sensor input
1 x output | | Operating System | Embedded Linux | | Serial | 1 x RS-485 for keyboard and PTZ control
2 x USB 2.0 ports | | Menu Display | Graphical User Interface (GUI) | | Control | IR remote control, USB mouse | | Screen Display | 1, 4 sequence | | Screen Resolution | 1920 x 1080p, 1280 x 1024, 1024 x 768 | | | | Compression | H.264 | | Recording Modes | Schedule, event, panic, continuous, pre & post event, motion, recording configuration per channel | | Pre Recording | 1 to 5 seconds | | Post Recording | 5 to 15 seconds | | Recording Rate | Up to 120 fps total at up to 1080p
Up to 80 fps total at 3 MP | | Recording Resolution | All HD analog 720p, 1080p, and 3 MP (limited support) and all analog resolutions up to 960H | | Playback Rate | Up to 120 fps total at up to 1080p
Up to 80 fps total at 3 MP | | Playback Resolution | All HD analog 720p, 1080p, and 3 MP (limited support) and all analog resolutions up to 960H | | Fast Forward | Functions: x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32 | | Playback Functions | First data, Last data, Date / time, Record table, Calendar, Bookmark, System log | | | | HDD Interface | 1 x SATA-II / SATA-III HDD | | Storage | Includes: 1 TB
Capacity: Up to 8 TB (1 HDD x 8 TB) | | External Storage | USB flash drive and USB HDD | | Health Reporting / Notifications | HDD: Temperature, S.M.A.R.T. with email notifications | | | | Camera | Color Control: Brightness, Contrast, Saturation, Hue | | Digital Zoom | Live and playback | | Software Upgrade | USB flash drive, network upgrade, FTP remote upgrade | | Mobile Client OS Platform | Mobile App for Apple & Android smartphones & tablets | | Channel | Covert: Live and playback | | | | Network Connection | 1 x Ethernet (Gigabit 10/100/1000 Gb/s) | | User Connections | Maximum: 10 simultaneous connections | | Transmission Speed | Up to 120 fps total at up to 1080p
Up to 80 fps total at 3 MP | | Protocols | Static, DDNS, DHCP, UPnP, RTSP | | Web Viewer | Live, playback, and configuration up to 10 multiple connections | | Client Monitoring | Software: MAC (Apple software), Pivot (CMS software) | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity | <80% (non-condensing) | | Power Requirement | 12 VDC | | Power Consumption | 24 W, 2 A | | Dimensions | 11 x 9.7 x 1.9" (28 x 24.5 x 4.8 cm) | | Weight | 5.4 lb (2.5 kg) | | | | Package Weight | 5.31 lb | | Box Dimensions (LxWxH) | 13.25 x 13.15 x 4.95" |
