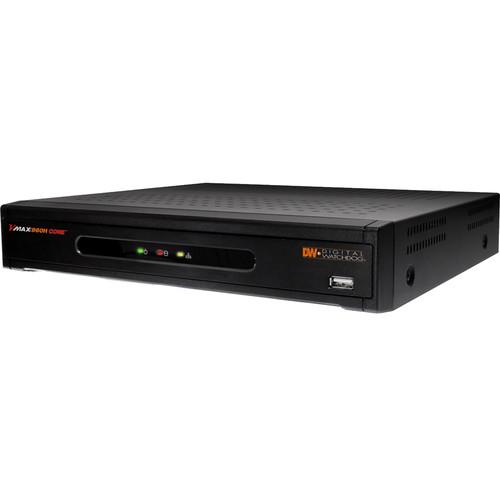

User Manual for Digital Watchdog VMAX A1 Universal HD 8-Channel DVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the Digital Watchdog VMAX A1 Universal HD
- Product category: Digital Video Recorders (DVRs) Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Digital Video Recorders (DVRs)
|
User manual for the Digital Watchdog VMAX A1 Universal HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The VMAX A1 Universal HD 8-Channel DVR from Digital Watchdog offers real-time HD monitoring and recording at up to 240 fps at 1080p resolution. It comes with a preinstalled 2TB HDD to store video and images. This video recorder supports analog 960H, TVI, and Analog High Definition (AHD) signals to provide high quality 1920 x 1080 resolution at H.264 compression over coaxial cable.
The Pivot Central Management Software supports event notifications such as email notifications, text messages, or event logs. The software can support up to 128 channels from different sites, so that all feeds can be viewed simultaneously. Up the Coax Protocol (UTP) allows you to access the camera's On Screen Display (OSD) through its coax connection, eliminating the need for additional hardware. You can access the mobile client software using Apple and Android devices, as well as a Mac computer. - Universal HD DVR records all HD analog formats and all analog at 960H
- Real time 30fps recording up to 1080p
- Supports up to 3MP HD analog cameras (limited support)
- Event camera group recording
- Mobile application for iPhone, iPad, iPod, and Android smartphones and tablets, and Apple TV
- Mac compatible remote ACS software
- VMAX 2.0 intuitive graphical user interface (GUI)
- Pivot Central Management Software supports up to 128 channels across separate systems
- OSD and PTZ control via coax (UTC)
- Signal hybrid – detects any camera at any input automatically
- HDD calculation and auto-recording configuration
- Event notifications via email, text, and pivot CMS
- Advanced H.264 embedded DVR
- Multiplex with live, playback, recording, backup, network, and configuration options
- 240 fps recording at 1080p
- Web-based client with multi-user access
- Help menu on major functions
UPC: 813379016127 In the Box Digital Watchdog VMAX A1 Universal HD 8-Channel DVR with 2TB HDD 12 VDC Adapter Power Cable USB Mouse and Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog VMAX A1 Universal HD 8-Channel DVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog VMAX A1 Specs | | | Number of Channels | 8 | | Video Signals | Analog signal up to 960H
All HD analog | | Live Frame Rate | 1 to 30 fps | | Live Resolution | HD Analog: 720p, 1080p, and 3 MP (limited support)
All analog resolutions up to 960H | | Video Output | HD output, Spot output, VGA | | Audio | 1 x input/output | | Audio Codec | PCM | | Alarm Sensor Input | 4 | | Alarm Out | 1 | | Operating System | Embedded Linux | | Serial | 1 x RS-485 for keyboard and PTZ control
2 x USB 2.0 | | Menu Display | Graphical User Interface (GUI) | | Control | IR remote control, USB mouse | | Screen Display | 1, 4, 9 sequence | | Screen Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1024 x 768 | | | | Compression | H.264 | | Recording Mode | Schedule, event, panic, continuous, pre- & post-event, motion, recording configuration per channel | | Pre Recording | 1 to 5 seconds | | Post Recording | 5 to 15 seconds | | Recording Rate | 240 fps at 1080p
160 fps at 3 MP | | Recording Resolution | HD Analog: 3 MP, 1080p, and 720p (limited support)
All analog resolutions up to 960H | | Playback Resolution | HD Analog: 3 MP, 1080p, and 720p (limited support)
All analog resolutions up to 960H | | Playback Rate | 240 fps at 1080p
160 fps at 3 MP | | Fast Forward | Functions: 1/16x, 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x | | Playback Functions | First data, last data, date/time, record table, calendar, bookmark, system log | | | | HDD Interface | 1 HDD | | Storage | 2 TB | | Storage Capacity | Up to 8 TB (1 x 8 TB) | | External Storage | USB flash drive, USB HDD | | Supported HDD Interfaces | SATA-II, SATA-III | | Health Reporting / Notifications | HDD: Temperature, S.M.A.R.T. with email notifications | | Camera | Color Control: Brightness, contrast, saturation, hue | | Digital Zoom | Live | | Software Upgrade | USB flash drive, network upgrade, FTP remote upgrade | | Mobile Client OS Platform | Mobile app for Apple and Android devices | | Channel | Covert: Live and playback | | | | Network Connection | Gigabit Ethernet (10/100/1000 Gb/s) | | Maximum User Access | 10 simultaneous connections | | Transmission Speed | 240 fps at 1080p
160 fps at 3 MP | | Protocols | Static, DDNS, DHCP, UPnP, RTSP | | Web Viewer | Live, playback, and configuration up to 10 multiple connections | | Client Monitoring | Software: Mac (Apple software), Pivot (CMS software) | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity | <80% (non-condensing) | | Power Requirement | 12 VDC | | Power Consumption | 36 W, 3 A | | Dimensions | 11 x 9.65 x 1.9" (28 x 24.5 x 4.8 cm) | | Weight | 5.56 lb (2.52 kg) | | | | Package Weight | 6.305 lb | | Box Dimensions (LxWxH) | 13.2 x 12.9 x 4.9" |
