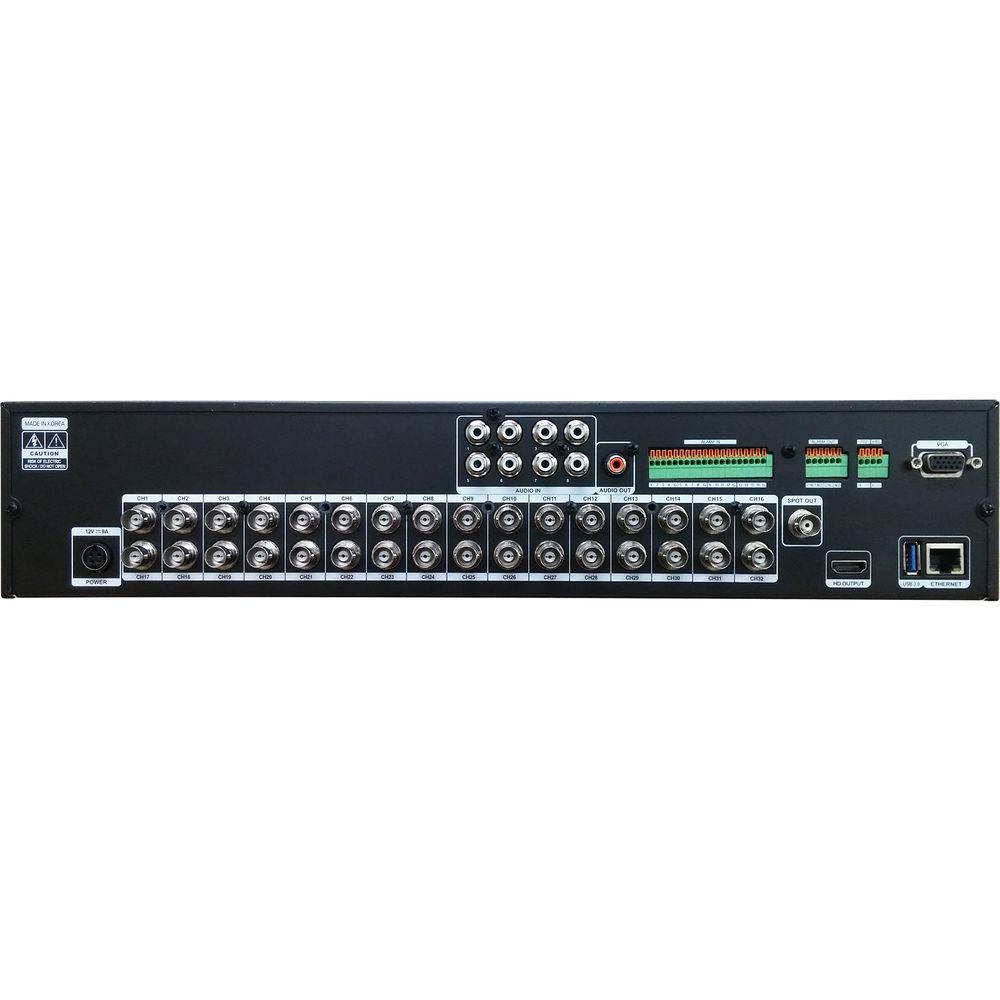

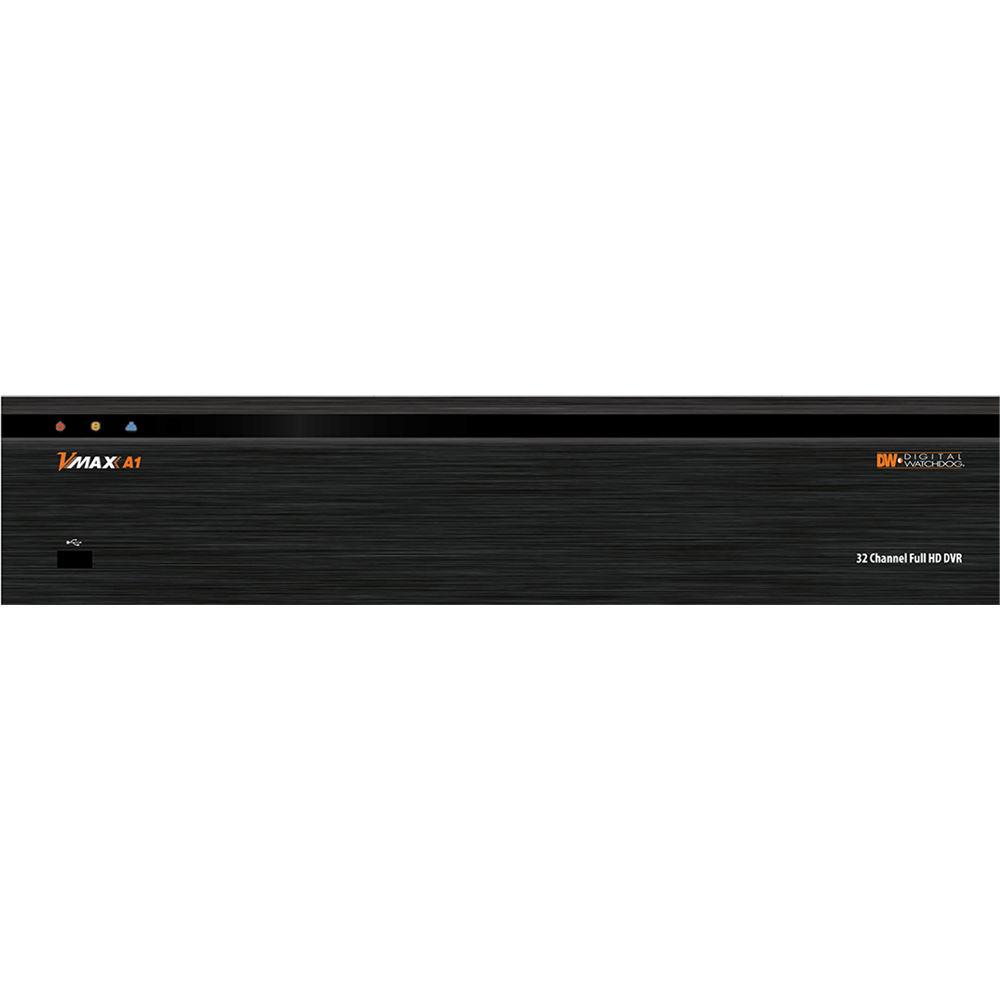

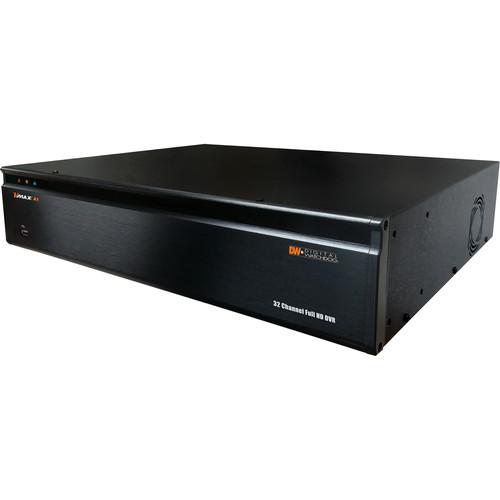

User Manual for Digital Watchdog VMAX A1 Universal HD 960H 32-Channel DVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the Digital Watchdog VMAX A1 Universal HD
- Product category: Digital Video Recorders (DVRs) Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Digital Video Recorders (DVRs)
 |
User manual for the Digital Watchdog VMAX A1 Universal HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Stream and record up to 32 channels of video with the VMAX A1 Universal HD 960H 32-Channel DVR from Digital Watchdog at resolutions up to 960H. Equipped with four SATA ports, each supporting an HDD up to 8TB, the DVR can be configured for up to 32TB of internal storage (8TB HDD pre-installed). External storage options include PCs via Internet connection, network servers, USB flash drives, and HDDs. Transmission bandwidth and storage are optimized while ensuring high quality recording and playback using H.264 compression.
The DVR enables simultaneous live view and playback of up to 32 channels via its VGA port, at resolutions up to 3840 x 2160. It supports all HD analog 720p and 1080p cameras as well as all analog resolutions up to 960H, and delivers recording and playback rates of up to 480 fps at up to 1080p. Two RS-485 serial ports allow for keyboard and PTZ control, while one Gigabit Ethernet port enables remote monitoring by up to 10 simultaneous users. - Universal HD coax and 960H signal support
- Pivot central management software up to 128 channels
- Event camera group recording
- Mobile application for iPhone, iPad, iPod, and Android smartphones and tablets, and Apple TV
- Mac-compatible remote ACS software
- VMAX 2.0 intuitive graphical user interface (GUI)
- OSD and PTZ control via coax (UTC)
- Signal hybrid – detects any camera at any input automatically
- 4K UHD (3840 x 2160) and TrueHD video outputs
- HDD calculation and auto recording configuration
- Event notifications via email, text, and Pivot CMS
- Multiplex – live, playback, recording, backup, network, configuration
- Push notifications via Digital Watchdog Mobile Client
- Web-based client with multi-user access
- Help menu for major functions
- Brightness, contrast, saturation, and hue camera color control
- Software upgrades via USB flash drive, network, and FTP
- Live and playback covert channel
UPC: 813379018985 In the Box Digital Watchdog VMAX A1 Universal HD 960H 32-Channel DVR with 8TB HDD 12 VDC Adapter Power Cable USB Mouse & Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog VMAX A1 Universal HD 960H 32-Channel DVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog VMAX A1 Specs | | | Video Input | 32 channels, coax | | Supported Video Signals | Analog signal up to 960H
All HD analog | | Live View | Frame Rate: 1 to 30 fps
Resolution: All HD analog 720p (not CVI 720p), 1080p, and all analog resolutions up to 960H | | Video Output | HD output (max. resolution 3840 x 2160 at 30 fps), spot output (D1 display resolution), VGA | | Audio Inputs | 8 x coax | | Audio Output | 1 x coax | | Audio Codec | PCM | | Alarm Sensor Input | 16 x ports | | Alarm Output | 2 x ports | | Operating System | Linux embedded | | Serial | 2 x RS-485 for keyboard and PTZ control | | User Interface | Menu Display: Graphical user interface (GUI)
Control Methods: IR remote control (available separately), USB mouse | | Screen Display | Mode: 1, 4, 9, 16, 25, 32, sequence | | Screen Resolution | 3840 x 2160, 1920 x 1080p, 1280 x 1024, 1024 x 768 | | | | Recording Compression | H.264 | | Recording Mode | Schedule, event, panic, continuous, pre & post event, motion, recording configuration per channel | | Pre Recording | 1-5 seconds | | Post Recording | 5-15 Seconds | | Recording Rate | Up to 480 fps total at up to 1080p | | Recording Resolution | All HD analog 720p (1280 x 720) (not CVI 720p), 1080p (1920 x 1080), and all analog resolutions up to 960H (960 x 480) | | Playback Rate | Up to 480 fps total at up to 1080p | | Playback Resolution | All HD analog 720p (not CVI 720p), 1080p, and all analog resolutions up to 960H | | Fast Forward | Functions: x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32 | | Playback Functions | First data, last data, date/time, record table, calendar, bookmark, system log | | Storage | 4 x HDD SATA interfaces, up to 32 TB total
8 TB HDD pre-installed | | External Storage | USB flash drive, USB HDD | | HDD | Health Check: Temperature, S.M.A.R.T. with email notifications | | | | Network Connection | Ethernet (1 x Gigabit 10/100/1000 Gbps) | | User Connections | 10 simultaneous connections (max.) | | Streaming | Transmission Speed Live: Up to 480 fps total at up to 1080p
Protocols: Static, DDNS, DHCP, UPnP, RTSP | | Access | Web Viewer: Live, playback, and configuration
Client Monitoring Software: Mac Apple software, Pivot CMS software | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity | Less than 80% (non-condensing) | | Power Requirement | 12 VDC | | Power Consumption | 9 A, 108 W | | Dimensions | 17 x 3.5 x 13.8" (43.3 x 8.8 x 35 cm) | | Weight | 13.8 lb (6.3 kg) | | | | Package Weight | 14.85 lb | | Box Dimensions (LxWxH) | 20.7 x 17.5 x 7.0" |
