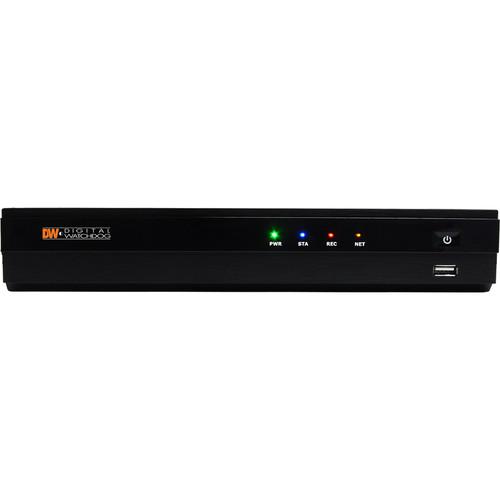

User Manual for Digital Watchdog VMAX IP PLUS 9-Channel NVR with 6TB HDD Click to enlarge the picture
Contents of the user manual for the Digital Watchdog VMAX IP PLUS 9-Channel
- Product category: Network Video Recorders (NVRs) Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Network Video Recorders (NVRs)
|
User manual for the Digital Watchdog VMAX IP PLUS 9-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The VMAX IP PLUS 9-Channel NVR with 6TB HDD from Digital Watchdog offers real-time monitoring and recording at up to 30 fps at 5MP resolution per channel. It comes with a preinstalled 6TB HDD to store video and has four ports with built-in PoE. Connect a PoE switch with up to six channels to gain access to an additional five channels to record from and manage up to nine channels (PoE switch available separately). Access a live feed from a computer using the Pivot Remote Monitoring Software, or while on the go via the mobile app for iOS and Android devices. - Supports up to 5MP network cameras
- Four PoE ports with the ability to add up to five channels via PoE switch (available separately)
- VMAX GUI for easy navigation
- Digital Watchdog Witness app allows smartphones to act as a camera and save recorded video to NVR
- Pathfinder auto port forwarding and automatic device discovery
- CCIP system encryption for added security
- Backup during playback feature
- HDMI and VGA simultaneous video outputs for up to 1080p resolution on an external monitor (available separately)
- Four alarm inputs and one relay output for system integration
- Up to 9-channel transaction verification via TCP and USB
- Event notifications via email with video clip
- Multi-user access web client
- H.264 dual streaming compression
- Simultaneous live, playback, recording, backup, and network function
- NVR health check, calculation, and auto recording configuration
- NTP and automatic private IP addressing
- USB mouse and GUI control
- Pivot Remote Monitoring Software
- Mobile app for iOS and Android devices
UPC: 813379014642 In the Box Digital Watchdog VMAX IP PLUS 9-Channel NVR with 6TB HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog VMAX IP PLUS 9-Channel NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog VMaxIP Plus Specs | Operating system | Embedded Linux | | Channels | Up to 9 with PoE switch (available separately) | | PoE Ports | 4 | | PoE Standard | 100 Mbps, 802.3af | | Communication Protocol | ONVIF | | Video In | Up to 5 MP network cameras | | Frame Rate | Up to 30 fps per channel | | Screen Mode | 1, 4, 9 | | Storage | 6 TB HDD preinstalled | | Video Out | HDMI and VGA
HDMI Resolution: 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080 | | Recording Frame Rate | 30 fps per channel | | Maximum Bit Rate | 80 Mbps | | Video Compression | H.264 | | Streaming | Dual stream | | Recording Modes | Continuous, C+M, C+S, scheduled, sensor, and motion detection recording
Pre-alarm recording, emergency recording, quick backup | | Playback | Speed: 1, 2, 4, 8, 16, 32x
Function: Intelli-Search by time bar, calendar (date/time) and event search | | Audio Output | 1 channel | | Alarm Inputs | 4 channels | | Relay Output | 1 channel | | PTZ Controls Protocols | RS-485, ONVIF | | Serial Interface | Transaction Verification: TCP and USB | | LAN | 1 x RJ45 Gigabit Ethernet
Fixed IP, DHCP, and DDNS | | Remote Software | Pivot Remote Monitoring Software, web client | | Mobile OS Support | iOS and Android | | Backup Device | Local backup by USB
Network backup by CMS
File upload to FTP server | | System Recovery Management Solution | Auto-reboot and journaling file system | | Firmware Upgrade | FTP, USB | | Product Health Monitoring | Real-time system, network, and PoE status monitoring | | Control | IR remote controller, USB mouse, PTZ control by keyboard (available separately) | | Power Requirement | 48 VDC | | Power Consumption | 90.24 W, 1.88 A | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Relative Humidity | 20 to 90% | | Certification | CE, FCC, RoHS | | Dimensions | 10.4 x 9.7 x 1.7" (26.4 x 24.5 x 4.4 cm) |
