User Manual for DigitalFoto Solution Limited ARES Dual-Spring Handle for Single-Handed Gimbal Ronin S Zhiyun Crane Series Click to enlarge the picture
Contents of the user manual for the DigitalFoto Solution Limited ARES Dual-Spring Handle
- Product category: Stabilizers & Gimbals DigitalFoto Solution Limited
- Brand: DigitalFoto Solution Limited
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DigitalFoto Solution Limited Stabilizers & Gimbals
 |
User manual for the DigitalFoto Solution Limited ARES Dual-Spring Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DigitalFoto Solution Limited product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DigitalFoto Solution Limited user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DigitalFoto Solution Limited product will considerably shorten its lifespan!
|

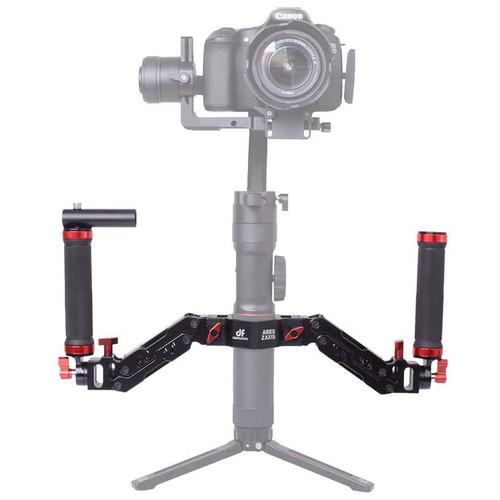

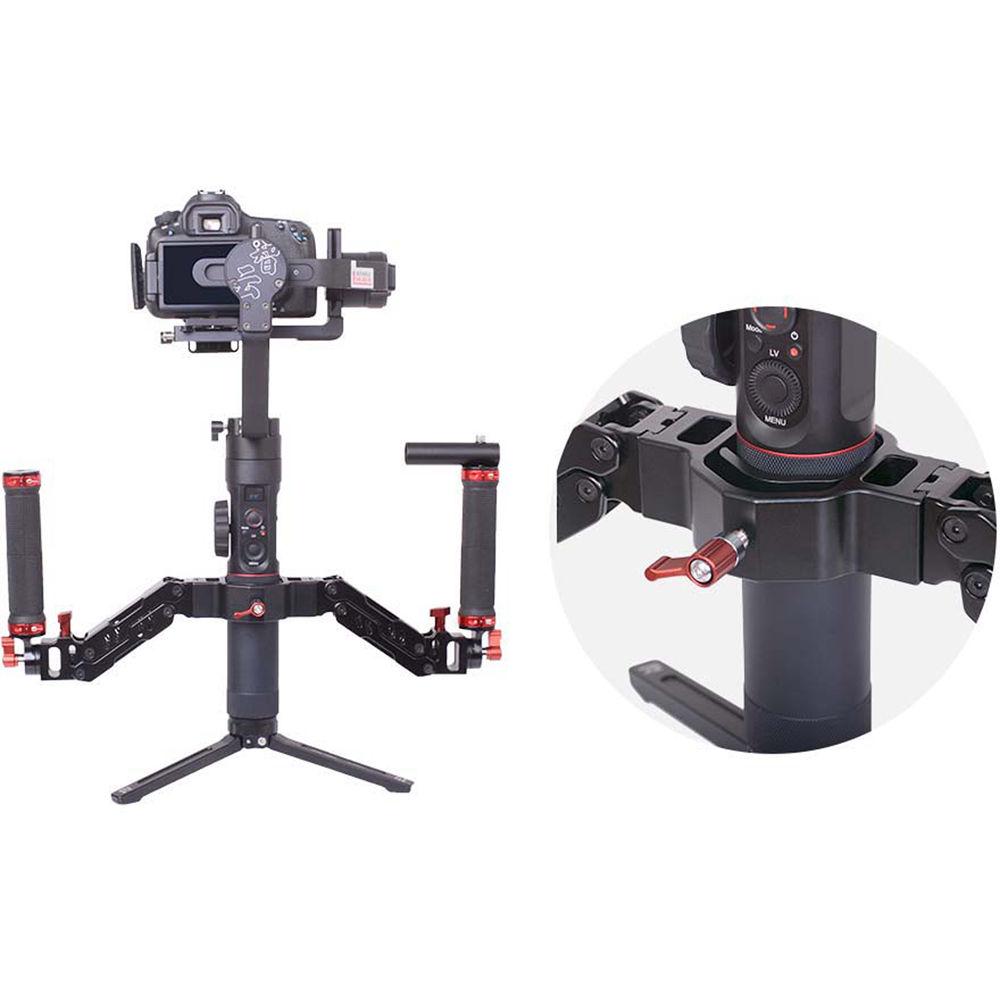

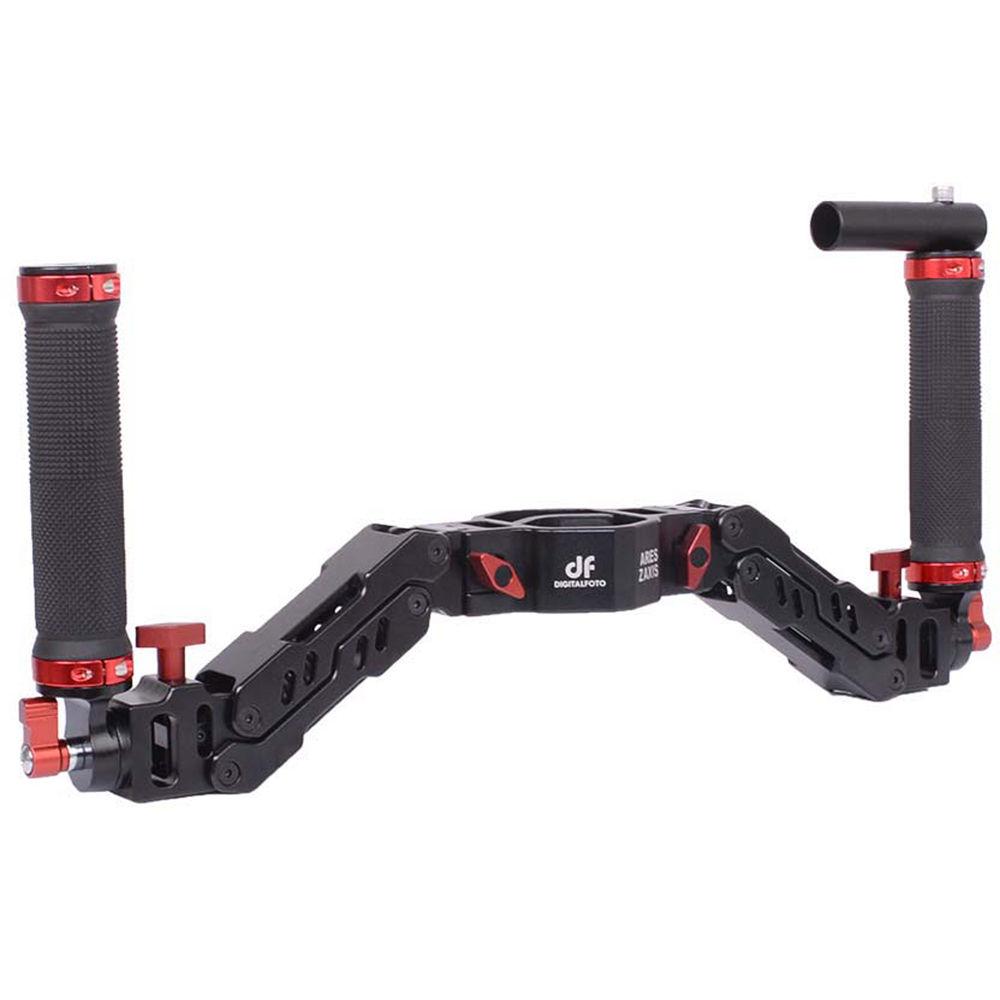

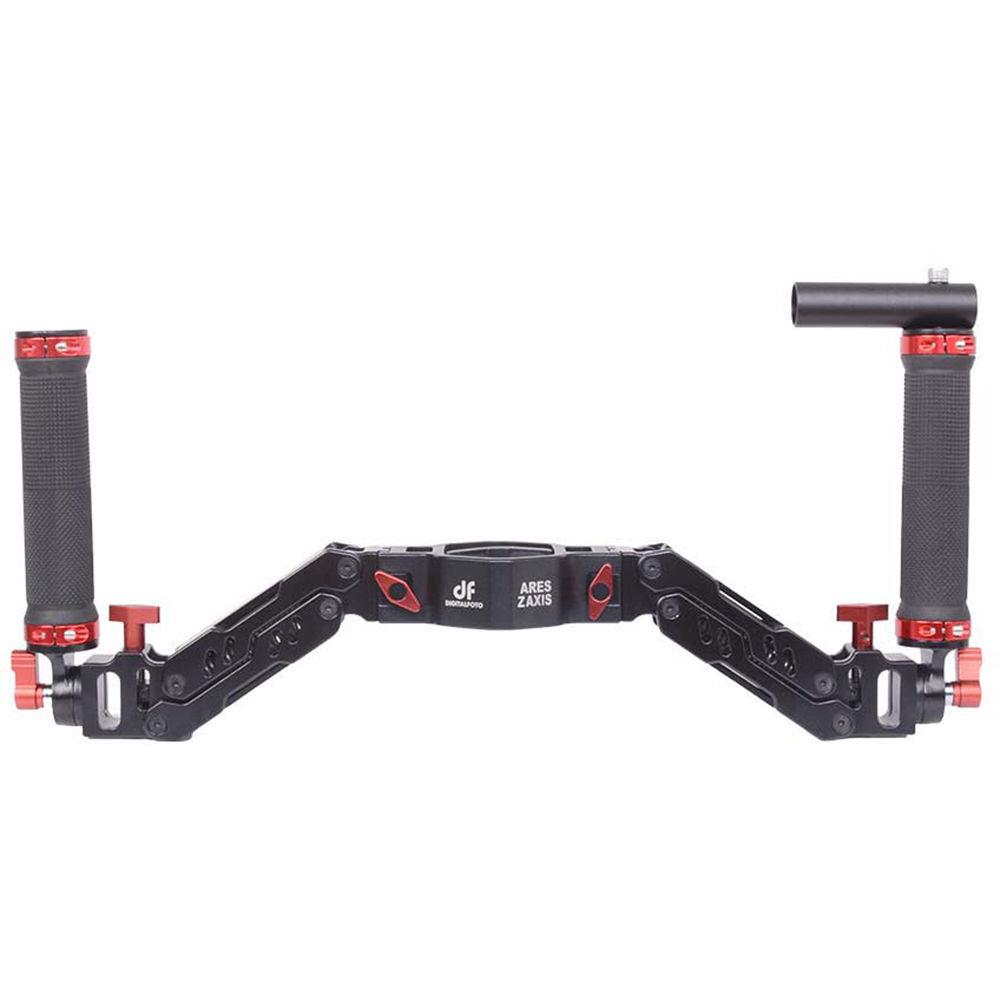

Product description The DigitalFoto ARES Dual-Spring Handle for Single-Handed Gimbal Ronin S/Zhiyun Crane Series converts your single-hand operated gimbal with a handle diameter of 1.57 to 1.81" into a dual-handed gimbal, providing Z-axis/4th axis support. If your gimbal's handle diameter is smaller than 1.57", then you can mount the included round base to the ARES and mount your gimbal via a 1/4"-20 threaded screw. This conversion provides extended operating time as it helps prevent the operator from getting fatigued. In addition, the spring-loaded handles increase stability by up to 30% for smoother shots.
Made from lightweight but strong aviation-grade aluminum alloy, the handles support your single-handed gimbal. It features an adjustable weight range supporting loads from 4 to 11 pounds. The dual handles allow the same shooting options as with single-handed operation, which means you can shoot normally or inverted. The ARES quickly disassembles for storage and transport. - Compatibility
- It is compatible with all single-handed gimbal stabilizers with a handle diameter of 0.79 to 1.97"
- Key Features
-
- Turn a 3-axis gimbal into a 4-axis gimbal, resulting in 30% improvement in stability
- Adjustable springs support from 4 to 11 pounds
- A round baseplate allows for the attachment of gimbals with smaller diameters to the ARES, if those gimbals have a 1/4"-20 mounting hole on their base
- 1/4"-20 threaded mounting holes on the top of each handle permit the attachment of accessories

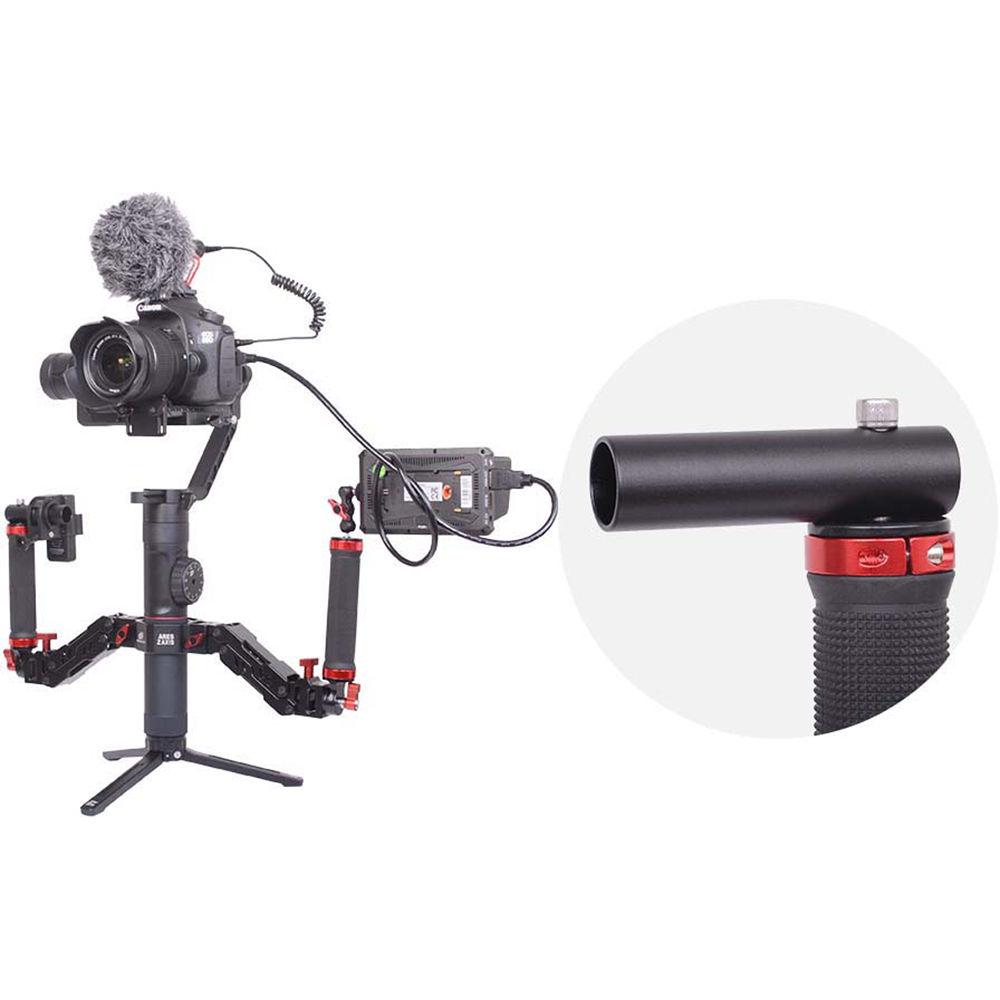

- An included support tube mounts onto one of the 1/4"-20 threaded mounting holes and is ideal for mounting wireless control modules for you gimbal
- The handles detach from the center bracket (Middle Connect Bridge), making it easy to store the ARES
- The handles reattach quickly to the Middle Connect Bridge and are secured by thumbscrews
- Each handle is secured by a locking lever and can rotate through 360°, so you can adjust both based on the needs of the shot
- Each spring arm features a thumbscrew that allows you to adjust the arm's spring tension

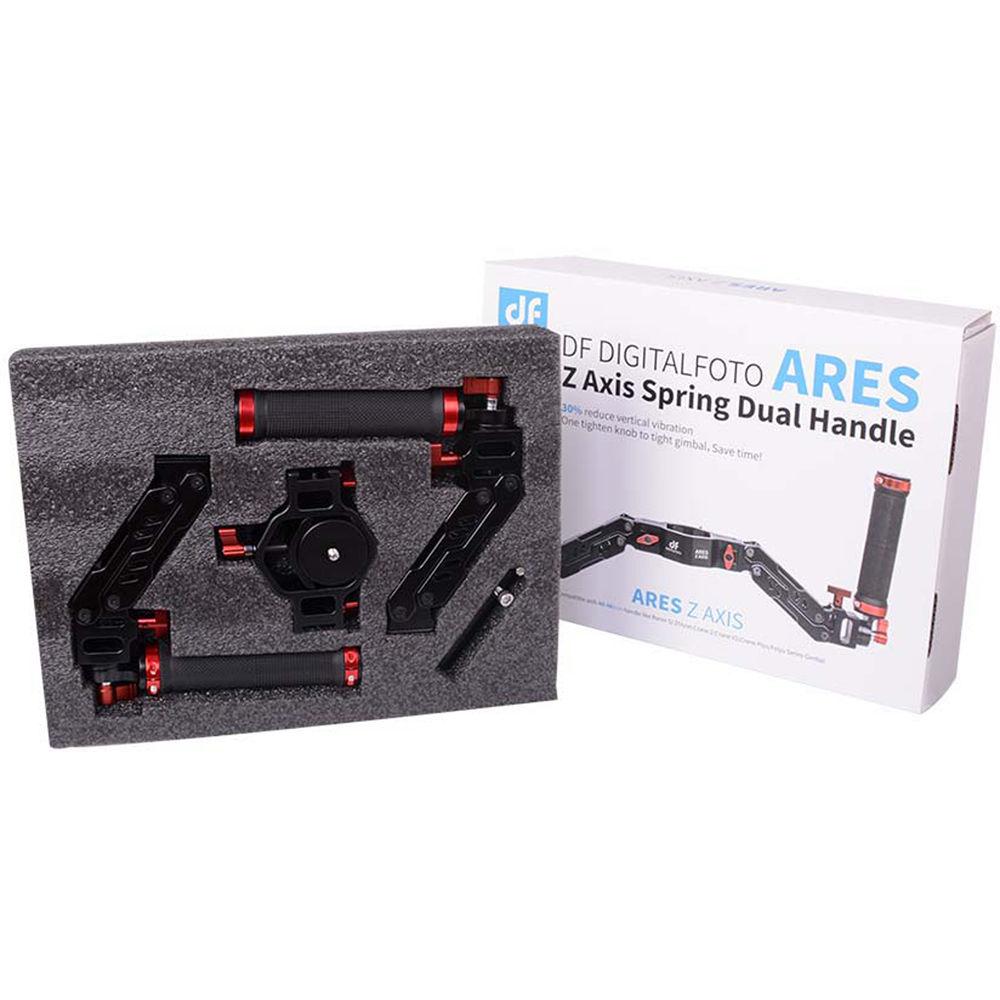

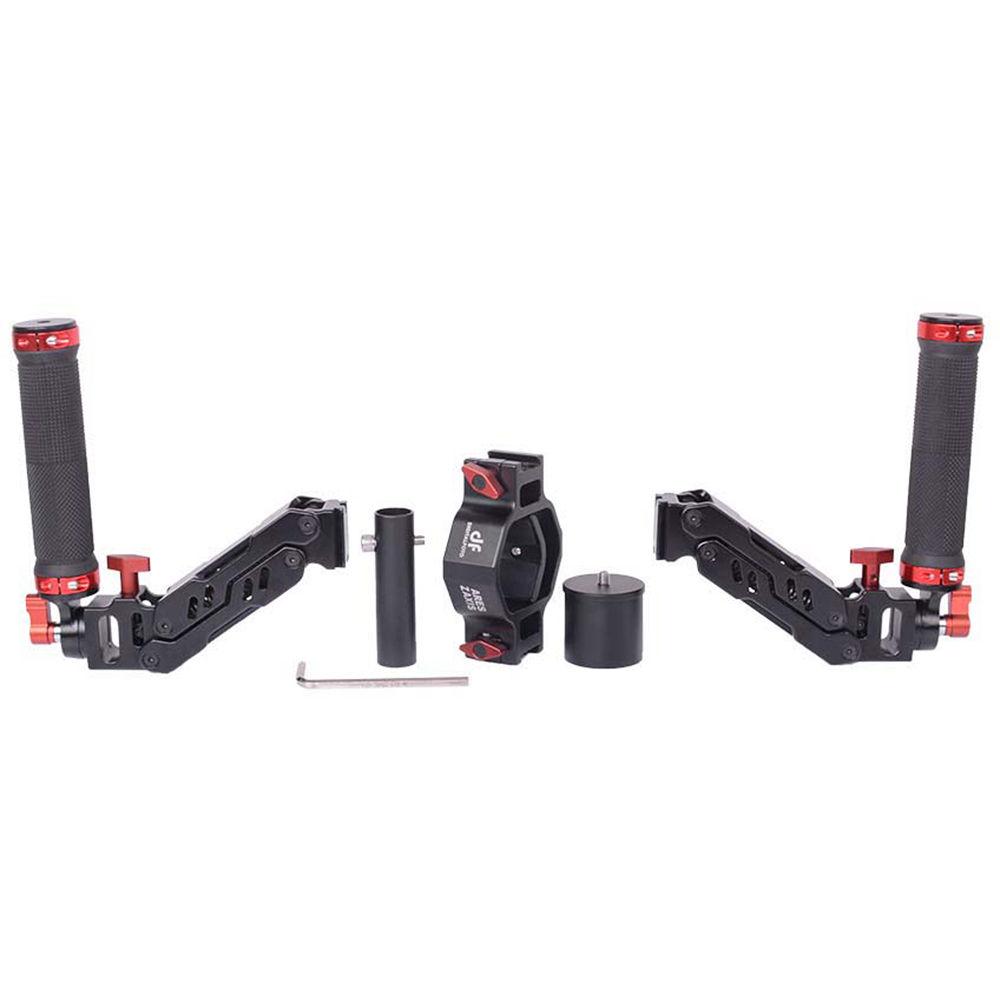

UPC: 739770135567 In the Box DigitalFoto Solution Limited ARES Dual-Spring Handle for Single-Handed Gimbal Ronin S/Zhiyun Crane Series 2 x Spring Arm Wireless Controller Mounting Tube Round Baseplate Allen Key Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DigitalFoto Solution Limited ARES Dual-Spring Handle for Single-Handed Gimbal Ronin S Zhiyun Crane Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalFoto Solution Limited ARES Specs | Handle Length | 5.31" / 13.5 cm | | Roll Angle | 180° | | Springs | Weight Range
4 to 11 lb / 1.8 to 5 kg | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 2.955 lb | | Box Dimensions (LxWxH) | 13.7 x 10.15 x 2.55" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
