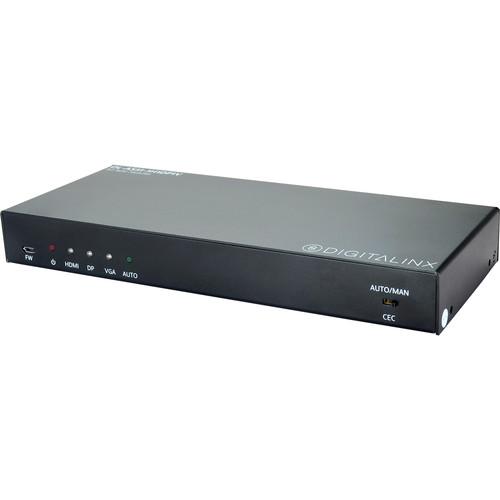

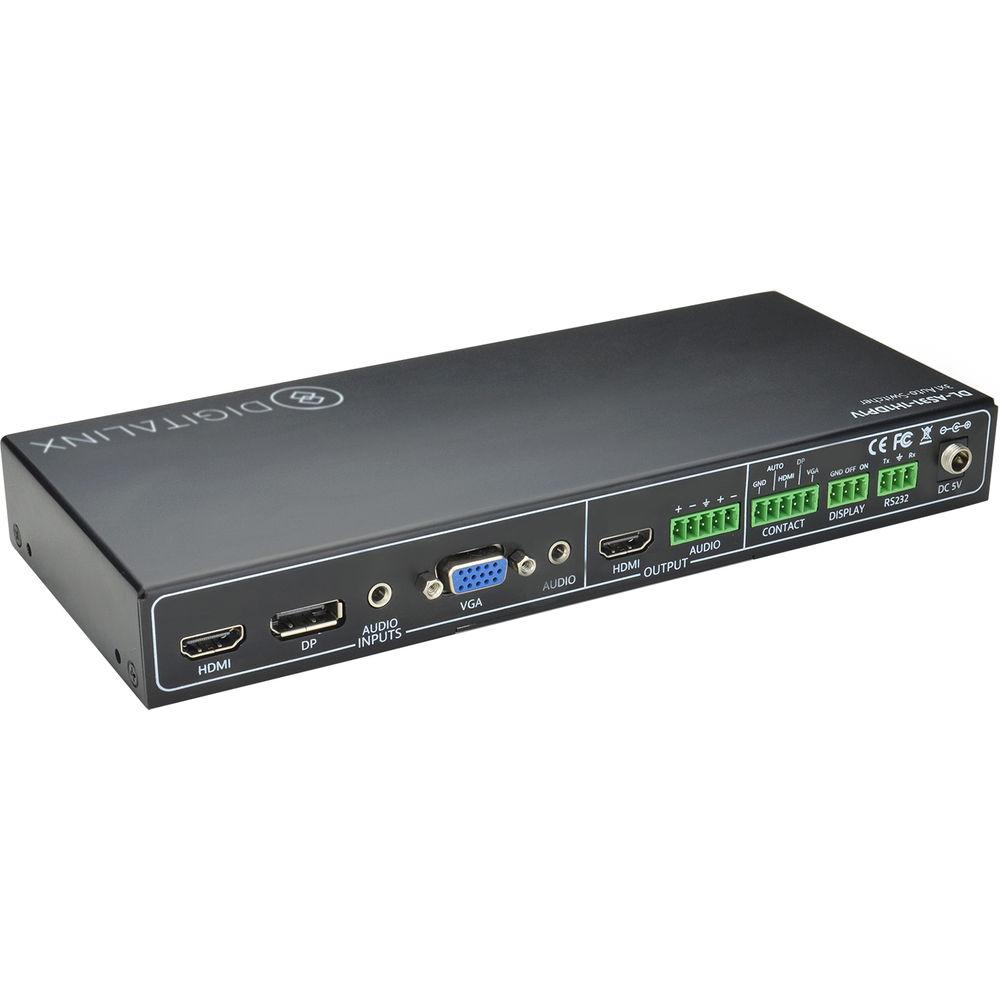

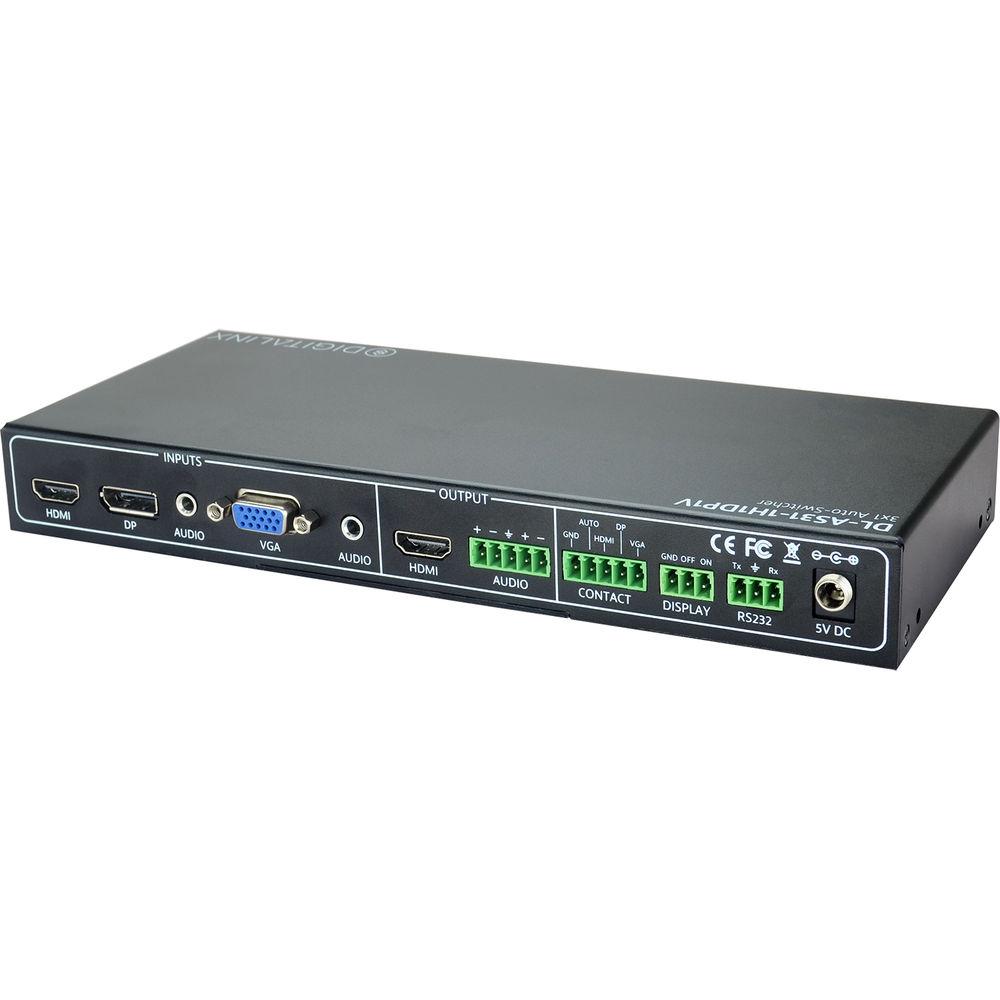

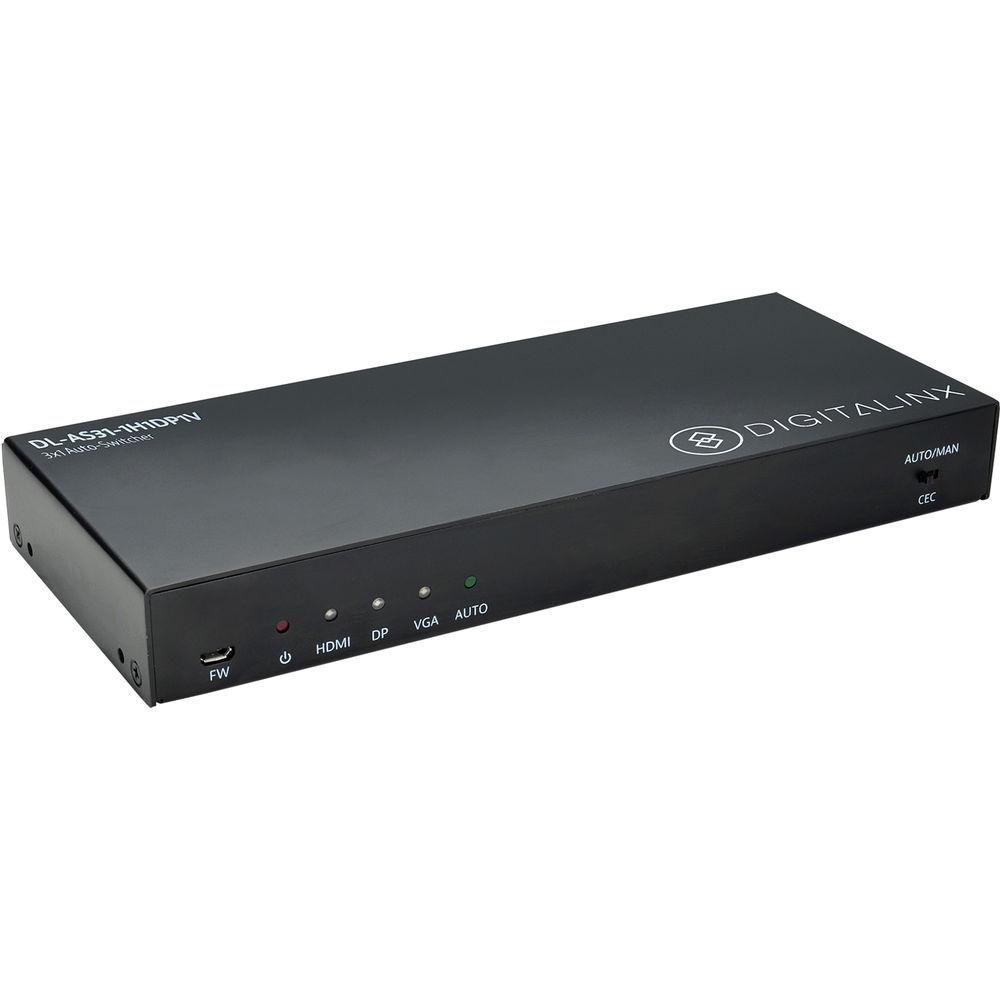

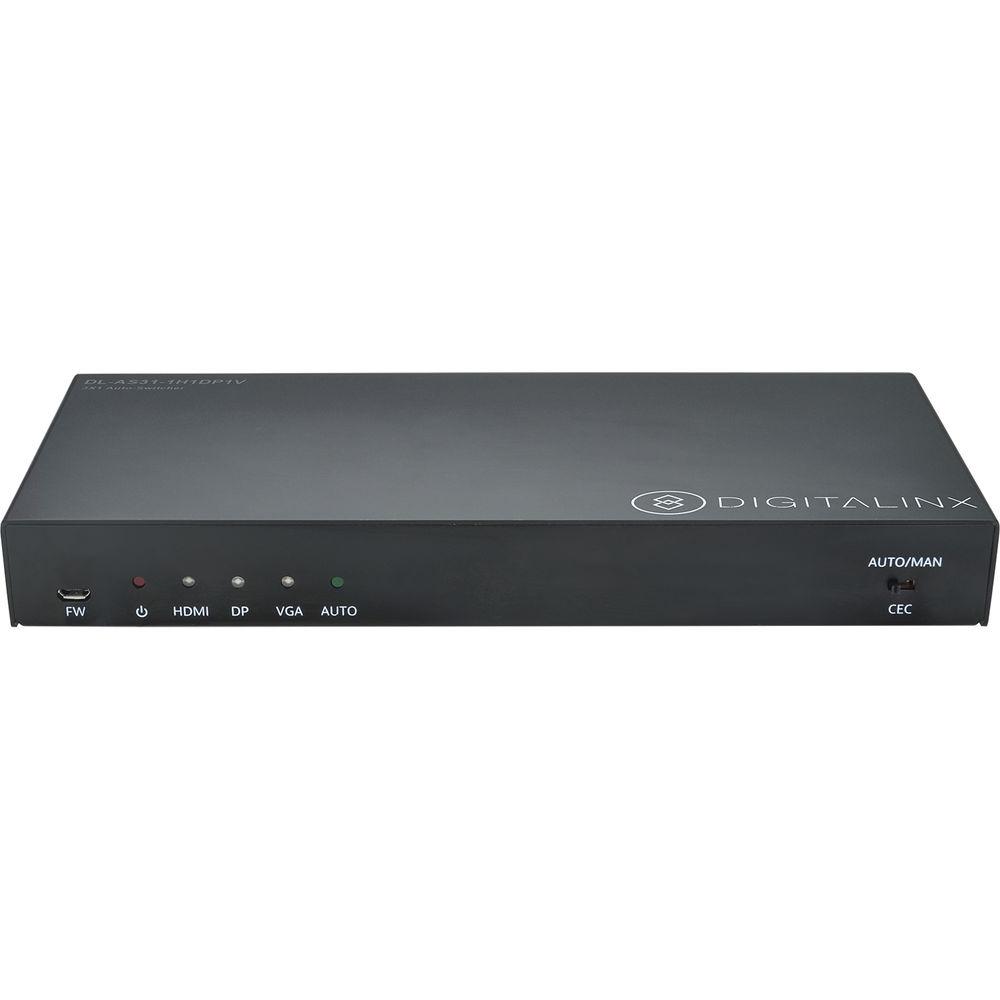

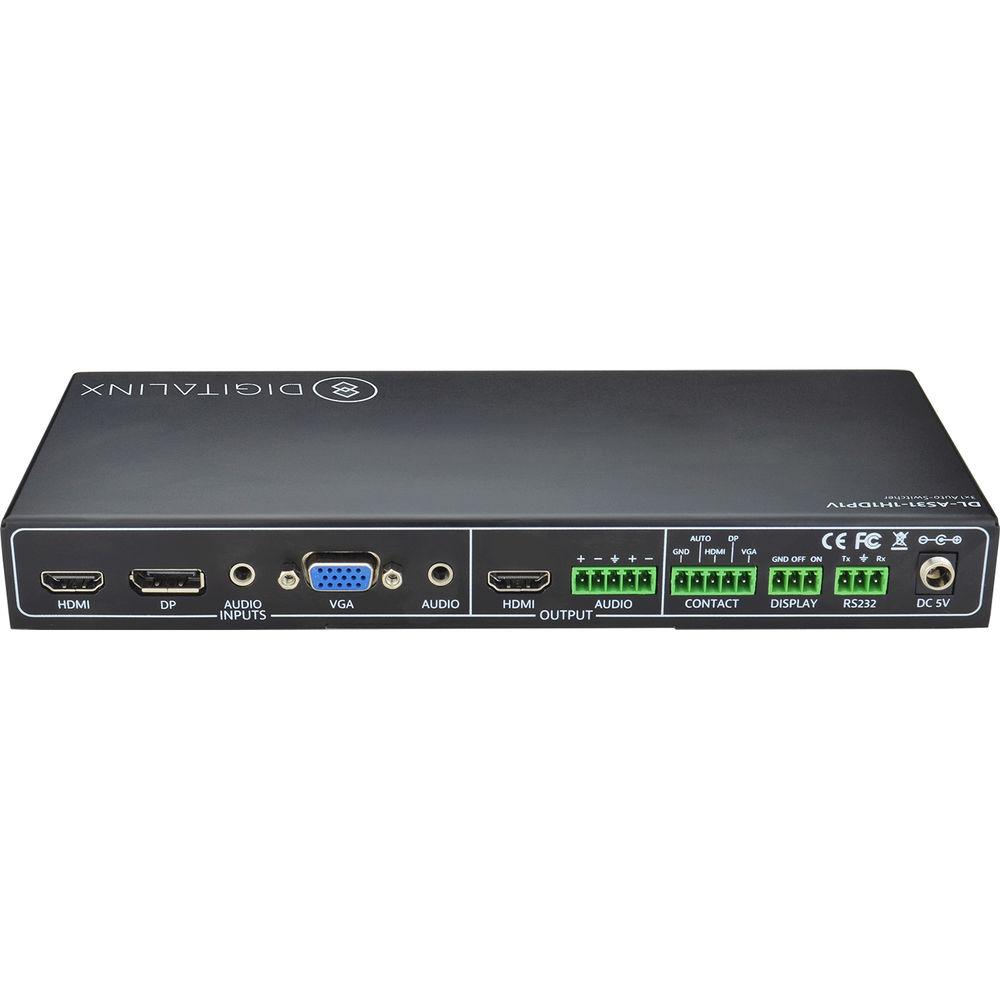

Product description The Digitalinx 3 x 1 Auto Switcher supports HDMI and DisplayPort video resolutions up to 4K at 30 Hz and multi-channel audio and VGA video resolutions up to 1920 x 1200 at 60 Hz. This multi-format switcher features one HDMI input, one DisplayPort with analog audio input, one VGA with analog audio input, one HDMI output, and one balanced analog audio output. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The switcher will de-embed the digital audio from the HDMI output signal, and output it via the balanced analog audio output port. When in auto-switch mode, the switcher will switch to a signal input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. This unit may also be controlled via RS-232 commands or by contact closures on the rear side. - One HDMI, one DisplayPort, and one VGA input
- One HDMI and stereo audio output
- HDMI and DisplayPort support 1080p and 4K video with stereo audio
- VGA scales up to 1920 x 1200 with audio embedding
- Built-in EDID settings and EDID pass-through
- Built-in audio de-embedding
- Automatic and manual switching via RS-232 and contact closures
- Includes under-table mounting ears
Applications - Under-table switcher for conference tables
- Easy integration of legacy components into a digital environment
- Analog to digital conversion and scaling up to 1920 x 1200
- Suitable for corporate facilities, places of worship, schools, and conference centers
UPC: 601446002056 In the Box Digitalinx 3 x 1 Auto Switcher with 1 HDMI, 1 DisplayPort with Audio, & 1 VGA with Audio Power Supply with AC Adapters (AU, EU, UK, and US) RS-232 Cable 2 x 5-Pin Terminal Block 2 x 3-Pin Terminal Block Rubber Feet 2 x L-Shaped Mounting Bracket 4 x Mounting Screw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx 3 x 1 Auto Switcher with 1 HDMI, 1 DisplayPort with Audio, & 1 VGA with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx DL-AS31-1H1DP1V Specs | HDMI Input | 1 x HDMI Type-A receptacle | | DisplayPort | 1 x full-size DisplayPort female receptacle | | VGA Input | 1 x HD-15 female receptacle | | Audio Input | 2 x 3.5 mm TRS jack | | HDMI Output | 1 x HDMI Type-A receptacle | | Audio Output | 1 x 5-pin removable terminal block | | Contact Closure | Input Select: 1 x 5-pin removable terminal block
Manual CEC: 1 x 3-pin removable terminal block | | RS-232 | 1 x 3-pin removable terminal block | | Power Connector | 5 VDC: 1 x threaded barrel (5.5 mm OD; 2.1 mm ID) | | Switch | CEC: 1 x 3 mm microswitch | | Firmware | 1 x Micro-USB receptacle | | Video Compatibility | Deep color 48 / 36 / 30 / 24-bit at 1080p and 2160p/30 | | Video | Video Compliance: HDMI 1.4, HDCP 1.4, CEC (Consumer Electronics Control) | | Supported Video Resolutions | HDMI and DisplayPort:
4096 x 2160 @ 30 Hz
3840 x 2160 @ 24 / 25 / 30 Hz
1920 x 1080@24 / 25 / 30 / 50 / 60 Hz
1920 x 1080 @ 50 / 60 Hz
1920 x 1080i @ 50 / 60 Hz
1600 x 900 @ 60 Hz
1366 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1920 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz
1360 x 768 @ 60 Hz
1280 x 800 @ 60 Hz
1600 x 1200 @ 60 Hz
1400 x 1050 @ 60 Hz
1280 x 1204 @ 60 Hz
1024 x 768 @ 60 Hz
800 x 600 @ 60 Hz
640 x 480 @ 60 Hz
VGA:
1920 x 1080 @ 24 / 25 / 30 / 50 / 60 Hz
1920 x 1080 @ 50 / 60 Hz
1920 x 1080i @ 50 / 60 Hz
1600 x 900 @ 60 Hz
1366 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1920 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz
1360 x 768 @ 60 Hz
1280 x 800 @ 60 Hz
1600 x 1200 @ 60 Hz
1400 x 1050 @ 60 Hz
1280 x 1204 @ 60 Hz
1024 x 768 @ 60 Hz
800 x 600 @ 60 Hz
640 x 480 @ 60 Hz | | Embedded Audio | PCM / Dolby Digital / DTS / DTS-HD | | Audio Signal | External: Stereo audio
Output: Balanced analog audio, compatible with unbalanced analog audio | | Signal to Noise Ratio | Output Audio: ≥85 dB | | Frequency Response | Output Audio: 20 Hz to 20 kHz | | Input DDC Signal | 5 V p-p (TTL) | | Input Video Signal | 0.5 to 1 V p-p | | HDMI Distance | Maximum Passive HDMI Distance: 16' (5 m) | | Baud Rate (RS-232) | 9600 baud | | Maximum Power Consumption | 5 W | | Power Supply | Input Voltage: 100 to 240 VAC at 50/60 Hz
Output Rating: 5 VDC at 3 A | | ESD Protection | Contact Discharge: ±15 kV
Air Discharge: ±8 kV | | Regulatory Approvals | Device: CE, RoHS
Power Supply: CE, RoHS, TUV, UL, SGS | | Diagnostic Indicators | Power, source mode, selected input | | Enclosure | Painted aluminum | | Operating Temperature | Environment: 32 to 104°F (0 to 40°C)
Chassis: 88°F (31°C) (S); 100°F (38°C) (R) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Humidity | Operating & Storage: 20 to 90%, non-condensing | | Dimensions | 9.5 x 3.9 x 1.2" (240 x 100 x 30 mm) | | Weight | Not Specified by the Manufacturer |
