User Manual for Digitalinx 3x1 Auto-Switcher with 2 HDMI & 1 DisplayPort Inputs Click to enlarge the picture
Contents of the user manual for the Digitalinx 3x1 Auto-Switcher with 2 HDMI
- Product category: Routers & Switchers Digitalinx
- Brand: Digitalinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digitalinx Routers & Switchers
 |
User manual for the Digitalinx 3x1 Auto-Switcher with 2 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digitalinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digitalinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digitalinx product will considerably shorten its lifespan!
|

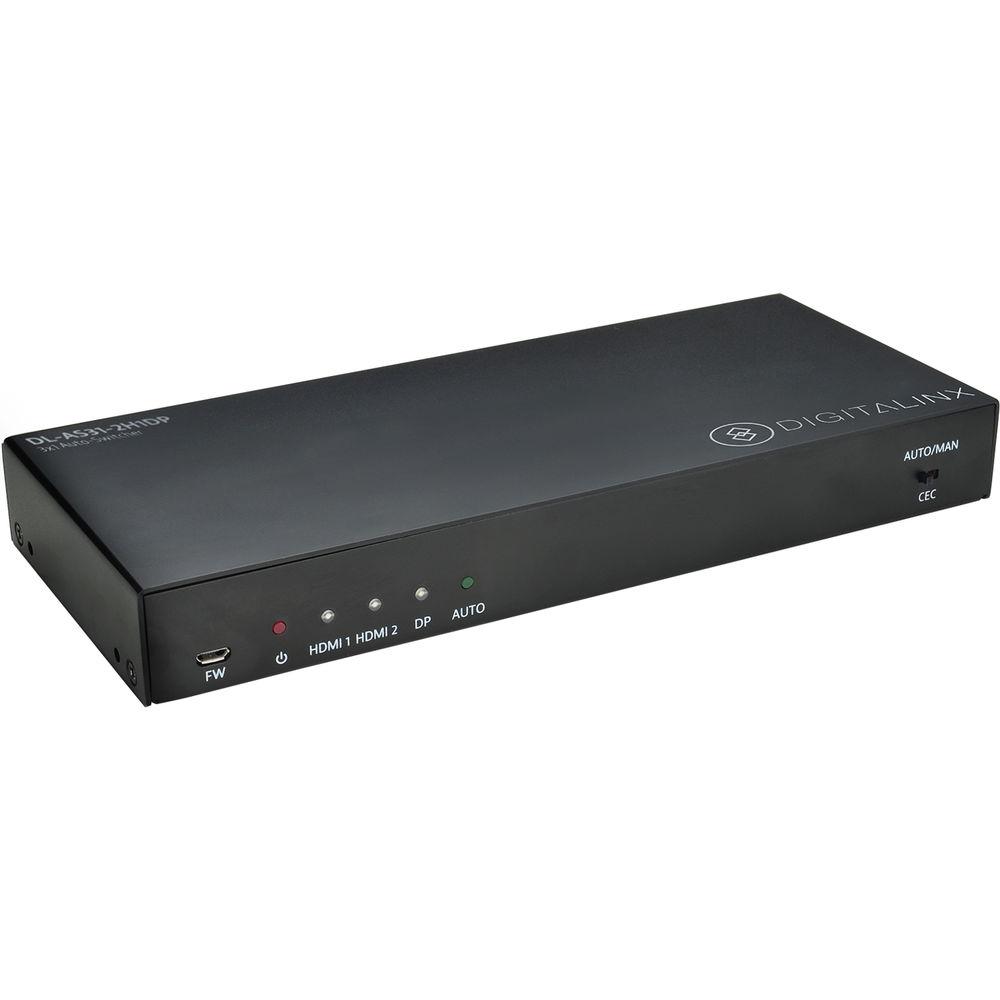

Product description The Digitalinx 3x1 Auto-Switcher is a multi-format auto-switcher with 2 HDMI inputs, 1 DisplayPort with analog audio input, 1 HDMI output, and 1 balanced analog audio output. This auto-switcher supports HDMI and DisplayPort video resolutions up to 4K2K @ 30 Hz and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The switcher can de-embed the digital audio from the HDMI output signal, and output it via the balanced analog audio output port.When in auto-switch mode, the DL-AS31-2H1DP switcher can switch to a signal input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. It can also be controlled via RS232 commands or by contact closures at the rear. Performance - 2 HDMI and 1 DisplayPort inputs
- 1 HDMI and stereo audio outputs
- HDMI and DP support 1080p and 4K video with stereo audio
- Built-in EDID settings and EDID pass-through
- Built-in audio de-embedding
- Automatic and manual switching via RS232 and contact closures
- Includes under table mounting ears
Applications - Under table switcher for conference tables
- Easy integration of legacy components into a digital environment
- Ideal for corporate facilities, places of worship, schools, and conference centers
In the Box Digitalinx 3x1 Auto-Switcher with 2 HDMI & 1 DisplayPort Inputs Power Supply with AC Adapters (AU, EU, UK, and US) RS232 Cable 2 x 5-Pin Terminal Block 2 x 3-pin Terminal Block Rubber Feet 2 x Mounting "L" Bracket 4 x Mounting Screw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx 3x1 Auto-Switcher with 2 HDMI & 1 DisplayPort Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

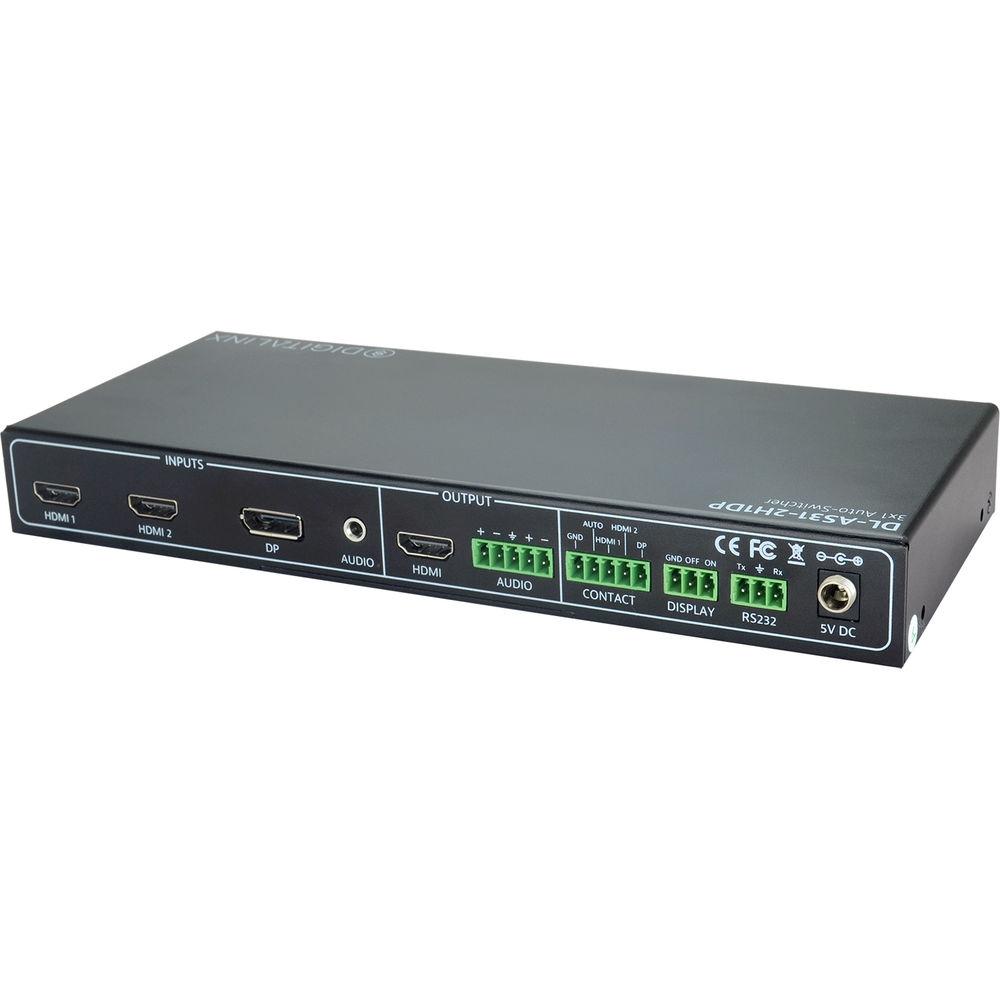

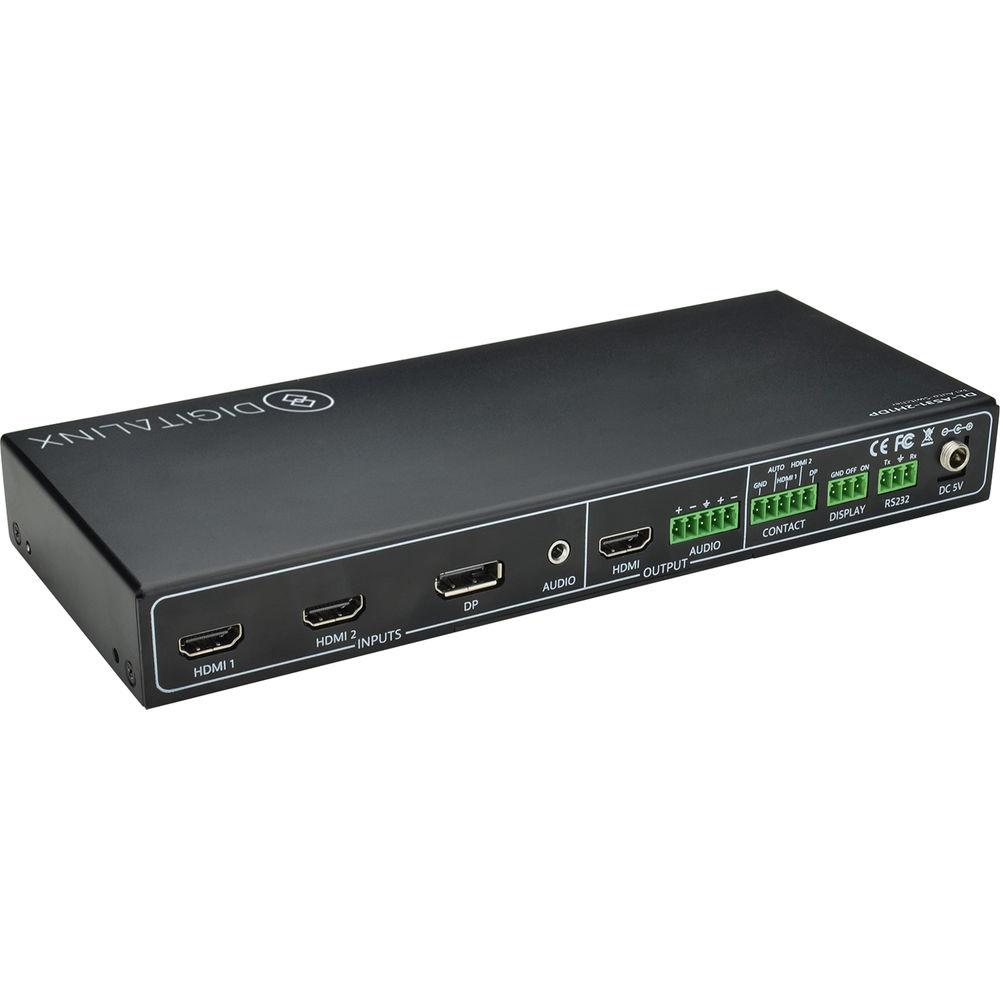

Technical parametersDigitalinx DL-AS31-2H1DP Specs | Input/Output Connections | HDMI Inputs: 2 x HDMI Type-A receptacle
DisplayPort Input: 1 x Full size DisplayPort female receptacle
Audio Input: 1 x 3.5 mm TRS jack
HDMI Output: 1 x HDMI Type-A receptacle
Audio Output: 1 x 5-pin removable terminal block
Input Select Contact Closures: 1 x 5-pin removable terminal block
Manual CEC Contact Closures: 1 x 3-pin removable terminal block
RS232 One: 1 x 3-pin removable terminal block
5 VDC Power: 1 x 0.21" (5.5 mm) outside diameter, 0.08" (2.1 mm) inside diameter barrel
CEC Switch: 1 x 3 mm microswitch
Firmware: 1 x Micro USB Type-B receptacle | | Resolutions | HDMI and DisplayPort Video Signal: 4096 x 2160 @ 30Hz, 3840 x 2160 @ 24/25/30 Hz, 1920 x 1080 @ 24/25/30/50/60 Hz, 1920x1080 @ 50/60 Hz, 1920 x 1080i @ 50/60 Hz, 1600 x 900 @ 60 Hz, 1366 x 768 Hz @ 60 Hz, 1280 x 720 Hz @ 60 Hz, 1920 x 1200 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1440 x 900 @ 60 Hz, 1360 x 768 @ 60 Hz, 1280 x 800 @ 60 Hz, 1600 x 1200 @ 60 Hz, 1400 x 1050 @ 60 Hz, 1280 x 1204 @ 60 Hz, 1024 x 768 @ 60 Hz, 800 x 600 @ 60 Hz, 640 x 480 @ 60 Hz | | Video Compatibility | Deep color 48/36/30/24-bit at 1080p and 2160p/30 | | Compliance | Video Compliance: HDMI 1.4, HDCP 1.4, CEC (Consumer Electronics Control) | | Embedded Audio | HDMI: PCM/Dolby Digital/DTS/DTS-HD | | Audio Signal | External: Stereo audio
Output: Balanced analog audio, compatible with unbalanced analog audio | | Signal to Noise Ratio | Output Audio: SNR ≥85 dB | | Audio Frequency Response | 20 Hz to 20 kHz (audio) | | Input DDC Signal | 5 V p-p (TTL) | | Input Video Signal | 0.5 to 1 V p-p | | Cable Length | Maximum Passive Cable Length: 16' (5 m) | | Baud Rate | 9600 baud (RS232) | | Maximum Power Consumption | 5 W | | Power Supply Input Voltage | 100 to 240 VAC at 50/60 Hz | | Power Supply Output | 5 VDC at 3 A | | ESD Protection | Contact discharge: ±15 kV
Air discharge: ±8 kV | | Regulatory | Device: CE, RoHS
Power Supply Regulatory: CE, RoHS, TUV, UL, SGS | | Diagnostic Indicators | Power, Source Mode, Selected Input | | Enclosure | Painted aluminum | | Operating Temperature | Environment: 32 to 104°F (0 to 40°C)
Chassis: 88°F / 31°C (S)
100°F / 38°C (R) | | Storage Temperature | Environment: 14 to 140°F (-10 to 60°C) | | Operating Humidity | Environment: 20 to 90%, non-condensing | | Storage Humidity | Environment: 20 to 90%, non-condensing | | Dimensions (W x H x D) | 9.45 x 3.94 x 1.18" (240 x 100 x 30 mm) | | Weight | Not specified by the Manufacturer |
