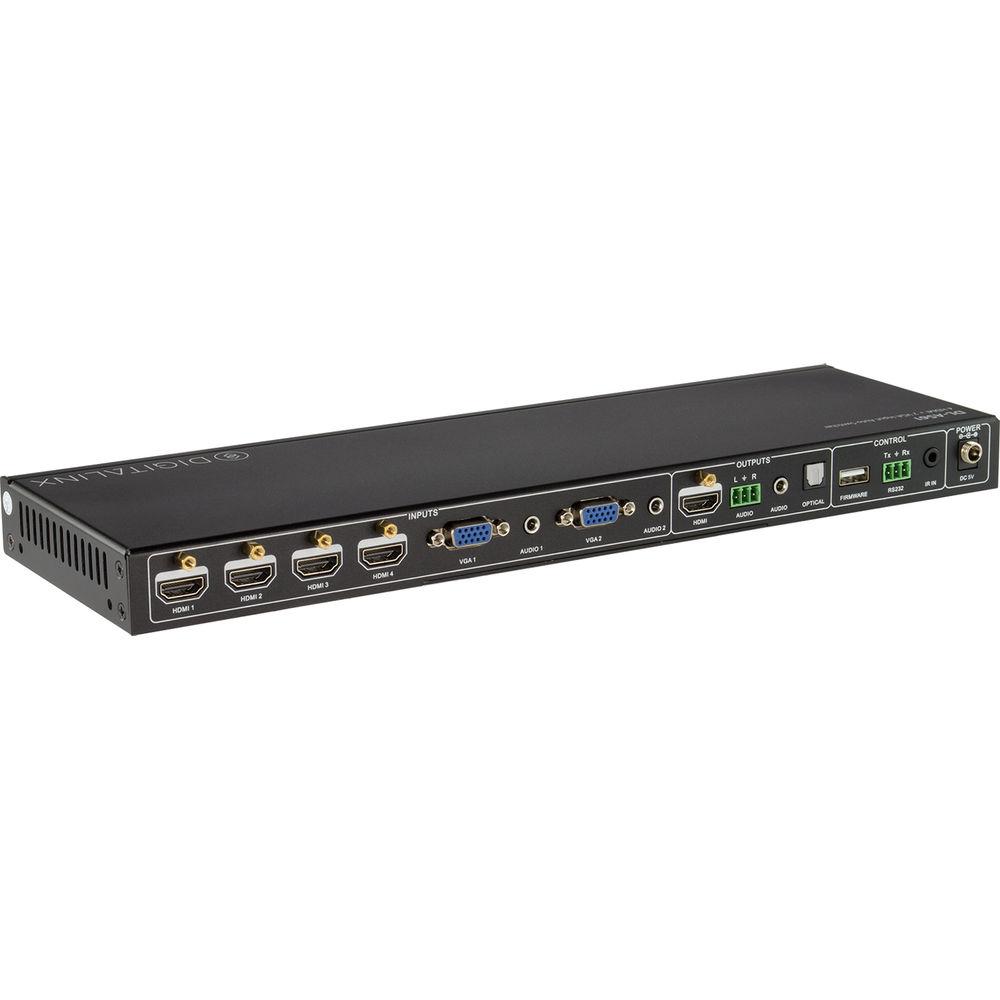

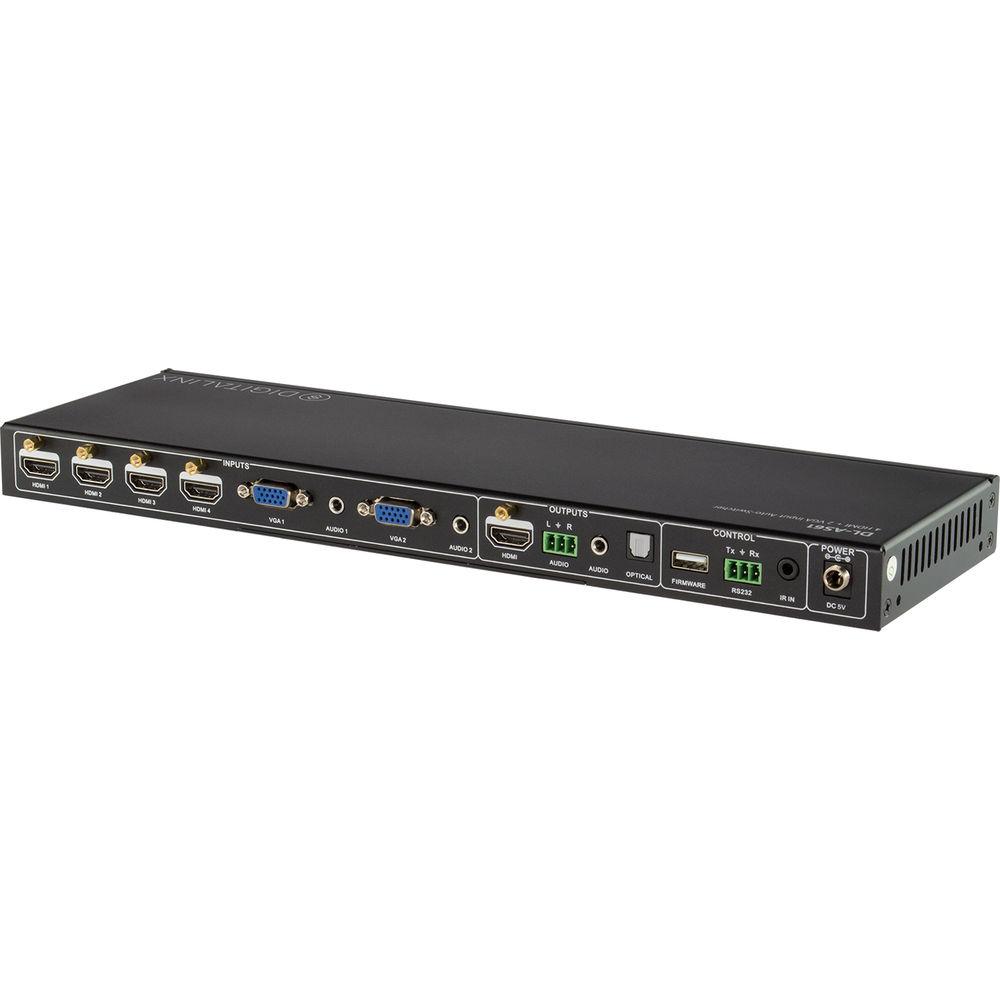

Product description The Digitalinx DL-AS61 is a quad HDMI and dual VGA input auto-switcher that supports up to Ultra HD 4K resolution sources and 3D video. It features separate analog audio inputs and analog and 5.1 optical audio outputs, and allows muting the embedded HDMI audio and simultaneously de-embedding it via the analog and optical outputs.
Built-in HDMI and VGA EDID settings, including an EDID pass-through from the display, ensure that the signal will be routed in optimal quality. VGA sources are scaled to up to 1920 x 1200 resolution with audio embedding.

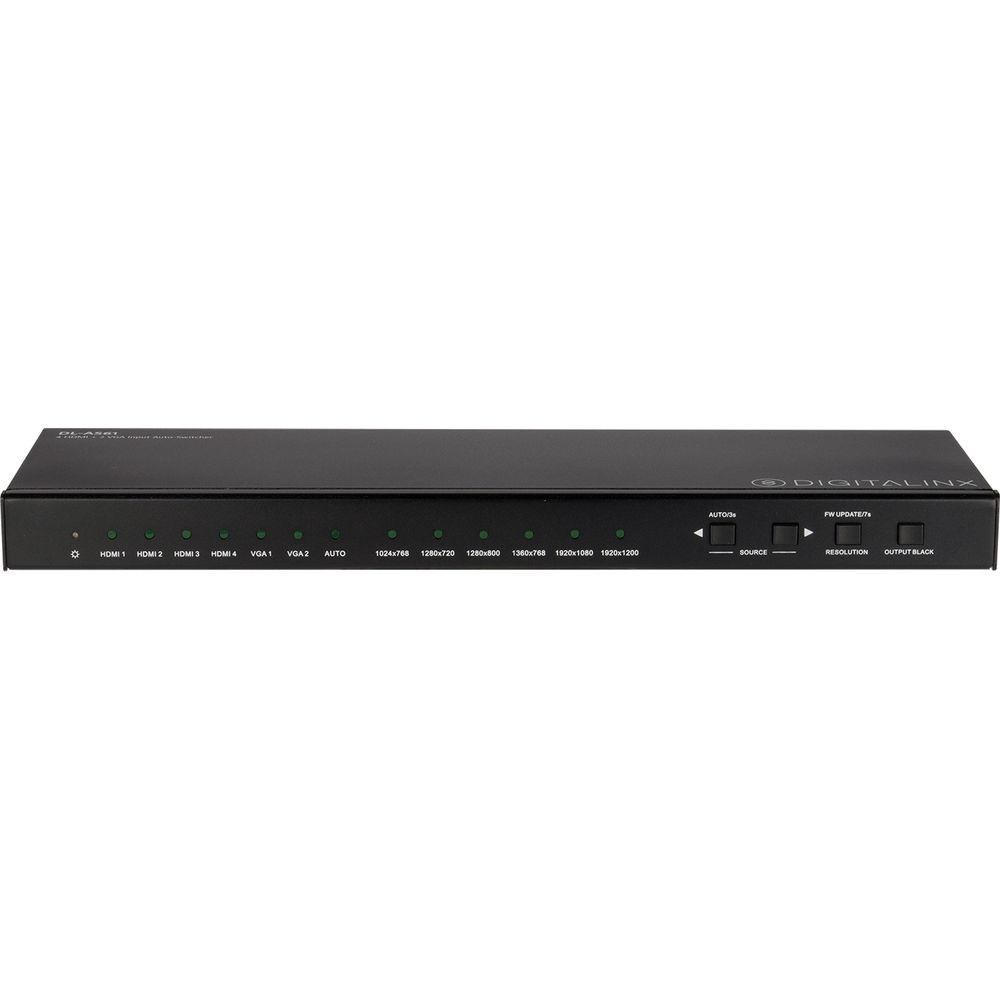

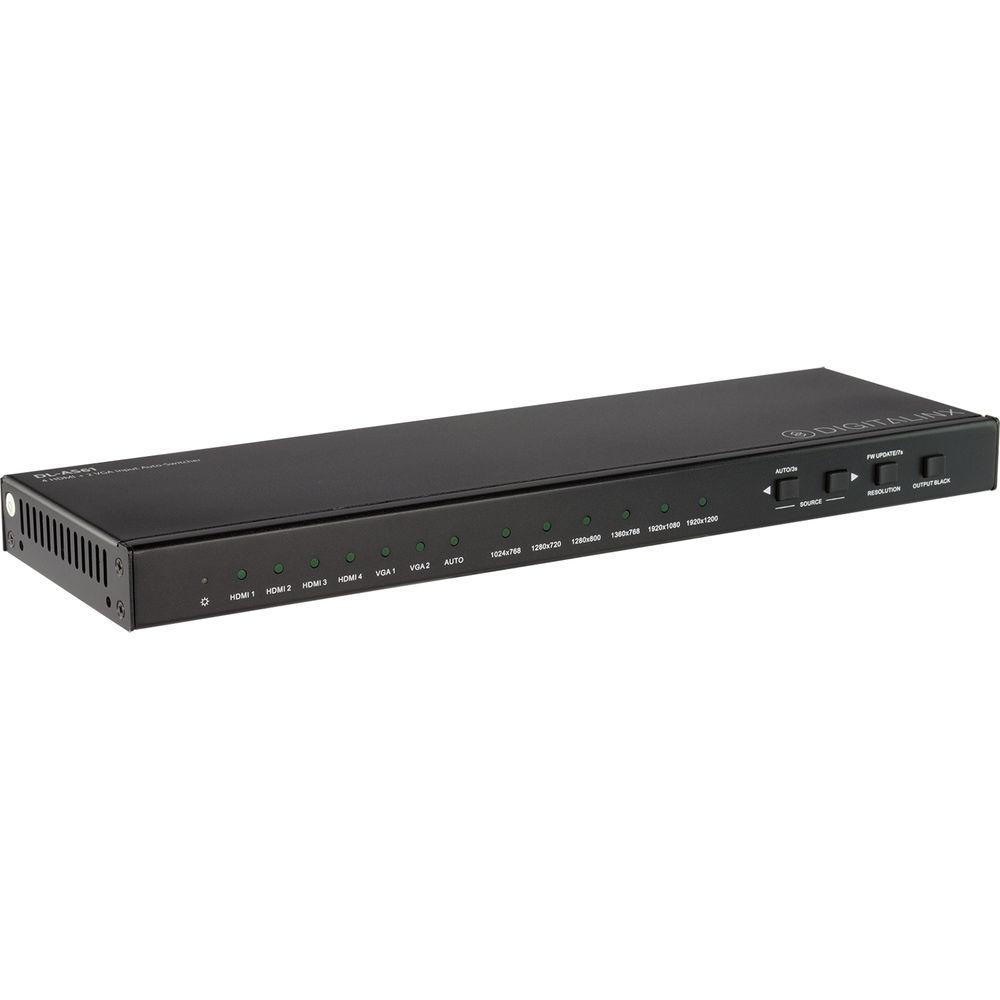

The DL-AS61 can be used tabletop or under-table using the included L-brackets. It can be controlled via front panel push-buttons or an included IR remote control — with LEDs with confirming status — as well as by RS-232 and Auto switching. When set to "Auto," it will automatically switch to the newest source device added. When the active source is unplugged, the lowest numbered input will be selected. - Key Features
-
- Four HDMI and two VGA inputs, HDMI output
- Supports up to UHD 4K/30 resolution and 3D video
- Two 3.5 mm TRS analog audio inputs
- One 3.5 mm TRS analog audio output
- 1 x 3-pole / 3.5 mm Euroblock analog audio output
- 1 x EIAJ digital optical audio output
- HDMI and VGA EDID settings, including an EDID pass-through
- VGA upscaling to up to 1920 x 1200 with audio embedding
- Front panel, IR remote, RS-232, and Auto switching control
- Under-table "L" mounting brackets included
UPC: 601446001820 In the Box Digitalinx 4 HDMI + 2 VGA Input Auto-Switcher Power Supply AC Adapters (AU, EU, UK, and US) RS-232 Cable IR Receiver IR Remote with Batteries Rubber Feet 2 x Mounting "L" Bracket 4 x Mounting Screw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx 4 HDMI 2 VGA Input Auto-Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

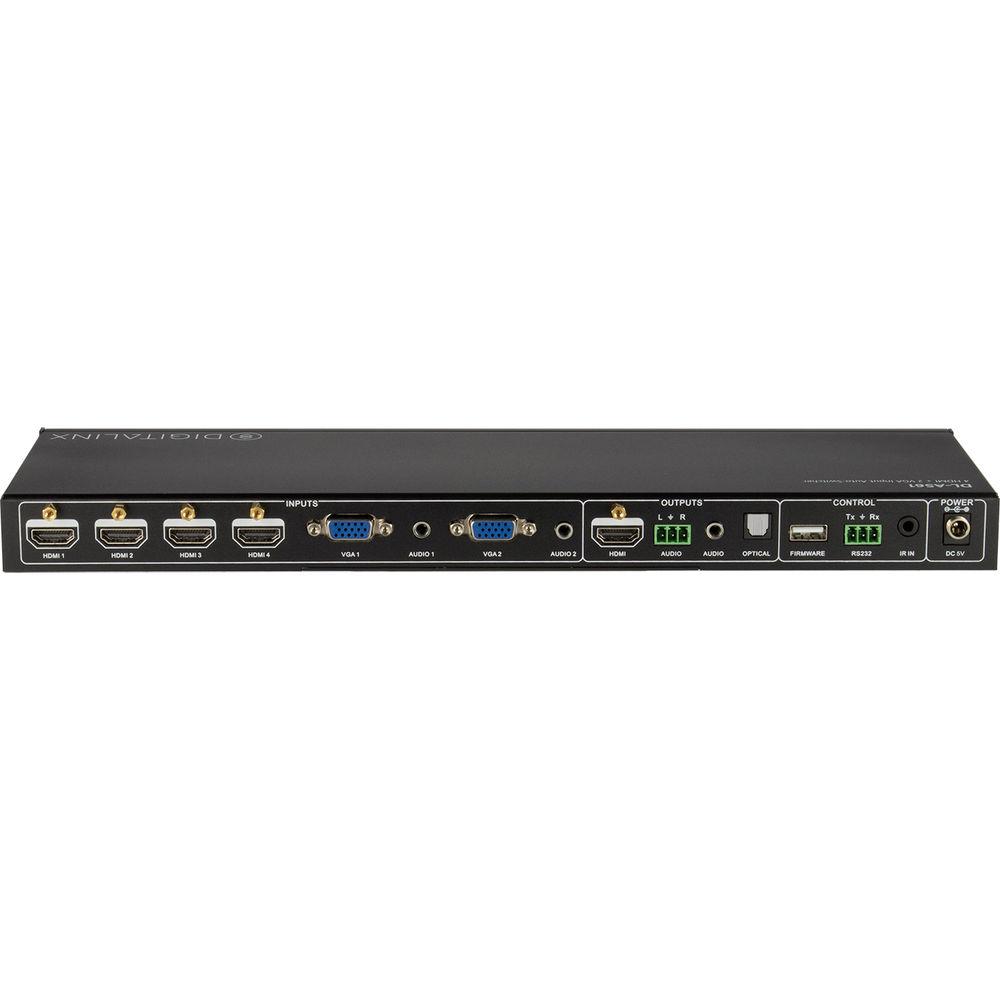

Technical parametersDigitalinx DL-AS61 Specs | Inputs | 4 x HDMI Type-A
2 x VGA
2 x 3.5 mm TRS analog audio jacks | | Outputs | 1 x HDMI Type-A
1 x EIAJ optical connector
1 x 3.5 mm TRS analog audio jack
1 x 3-pole / 3.5 mm Euroblock | | Other Connections | 1 x 3.5 mm TRS IR input
1 x RS-232 via 3-pole / 3.5 mm Euroblock
1 x USB Type-A for firmware upgrades | | Power | 5 VDC via threaded barrel connector (5.5 mm OD; 2.6 mm ID) | | Supported Input Resolutions | HDMI/DVI:
4096 x 2160 at 30/25/24 Hz
3840 x 2160 at 30/25/24 Hz
1920 x 1440 at 60 Hz
1920 x 1200 at 60 Hz
1920 x 1080 at 60 Hz
1856 x 1392 at 75/60 Hz
1792 x 1344 at 60 Hz
1680 x 1050 at 60 Hz
1600 x 1200 at 85/75/70/65/60 Hz
1600 x 1024 at 60 Hz
1365 x 1024 at 60 Hz
1280 x 1024 at 85/75/60 Hz
1280 x 960 at 85/60 Hz
1280 x 768 at 85/75/60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 85/75/70/60/42 Hz
800 x 600 at 75/72/60 Hz
VGA:
1920 x 1200 at 60 Hz
1920 x 1080 at 60 Hz
1792 x 1344 at 60 Hz
1680 x 1050 at 60 Hz
1600 x 1200 at 75/70/65/60 Hz
1600 x 1024 at 60 Hz
1365 x 1024 at 75/60 Hz
1280 x 1024 at 75/60 Hz
1280 x 960 at 60 Hz
1280 x 768 at 75/60 Hz
1024 x 768 at 75/70/60/42 Hz
800 x 600 at 75/72/60 Hz
VGA Scaling Resolutions:
1920 x 1200 at 60 Hz
1920 x 1080 at 60 Hz
1360 x 768 at 60 Hz
1280 x 800 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz | | Compliance | HDMI, HDCP | | EDID | HDMI:
Pass-through from display, 1080p/PCM 2-channel, 1080p/PCM 6-channel, 1080p3D/PCM 6-channel, 1080i/PCM 2-channel, 4K/30/PCM 2-channel
VGA:
1360 x 768 | | Embedded Audio | Up to PCM 6-channel input/output | | Optical Audio Output | PCM: 6 channel (5.1) at 16, 20, or 24-bit | | Analog Audio | Frequency Response: 20 Hz - 20 kHz
Input Impedance: >10 KOhms
Output Impedance: 50 Ohms | | Input DDC Signal | 5.0 V p-p (TTL) | | Input Video Signal | 0.5 to 1.0 V p-p | | HDMI Distance | 16 ft (5 m) (maximum passive) | | IR Frequency Range | 33 - 55 kHz at 5 V | | RS-232 Baud Rate | 9600 baud | | Enclosure | Painted aluminum | | Power Consumption | 3.8 W | | Power Supply Input Voltage | 100-240 VAC at 50/60 Hz at 0.45 A | | Power Supply Output | 5 VDC at 3 A | | ESD Protection | 15 kV | | Regulatory | Device: CE, FCC, RoHS
Power Supply: CE, RoHS, UL, SGS, FCC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, non-condensing | | Storage Temperature | 14 to 140°F (-10 to +60° C) | | Storage Humidity | 20 to 90%, non-condensing | | Dimensions | 1.1 x 13.8 x 4.3" (2.8 x 35 x 10.9 cm) | | Weight | Approx. 1.8 lb (0.8 kg) | | | | Package Weight | 2.805 lb | | Box Dimensions (LxWxH) | 16.55 x 9.15 x 4.15" |
