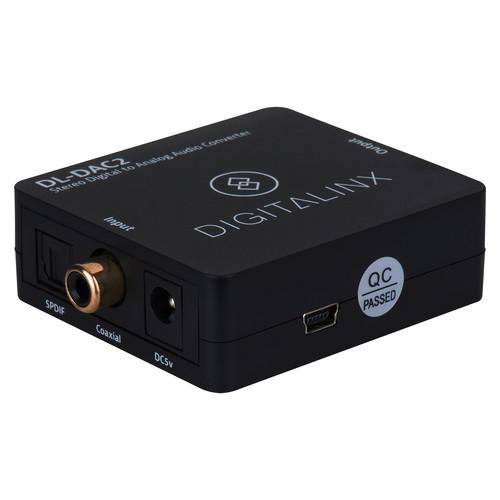

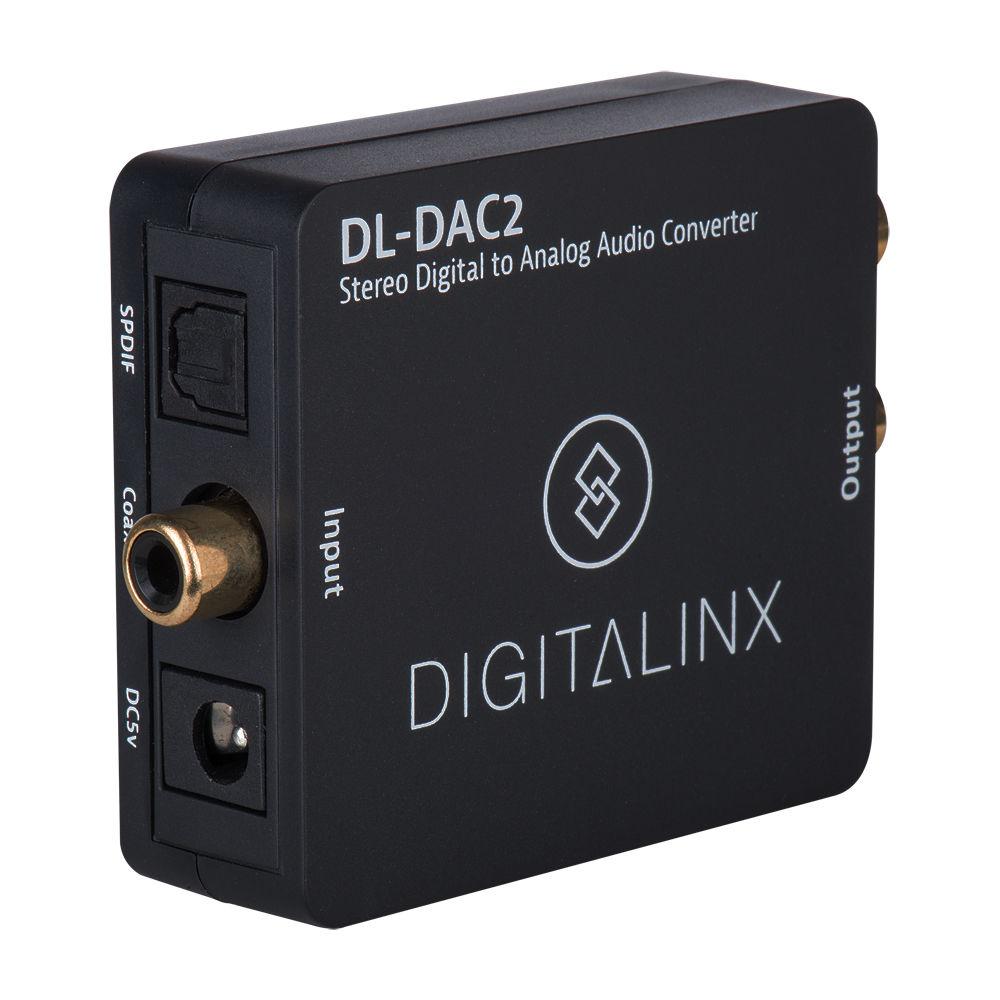

Product description The Digitalinx DL-DAC2 is an easy-to-use device that converts coaxial and optical S/PDIF digital audio into stereo analog audio, perfect for multimedia components such as TVs or CD/DVD/Blu-ray players that do not feature analog outputs.Use the dual RCA phono outputs to connect the unit to an amplifier or powered speakers, and use the 1/8" mini stereo output for simultaneous headphone monitoring. The DL-DAC2 supports PCM digital audio at resolutions up to 96 kHz and can be powered via the included power supply or alternately via USB. -
- Converts stereo digital audio to stereo analog audio

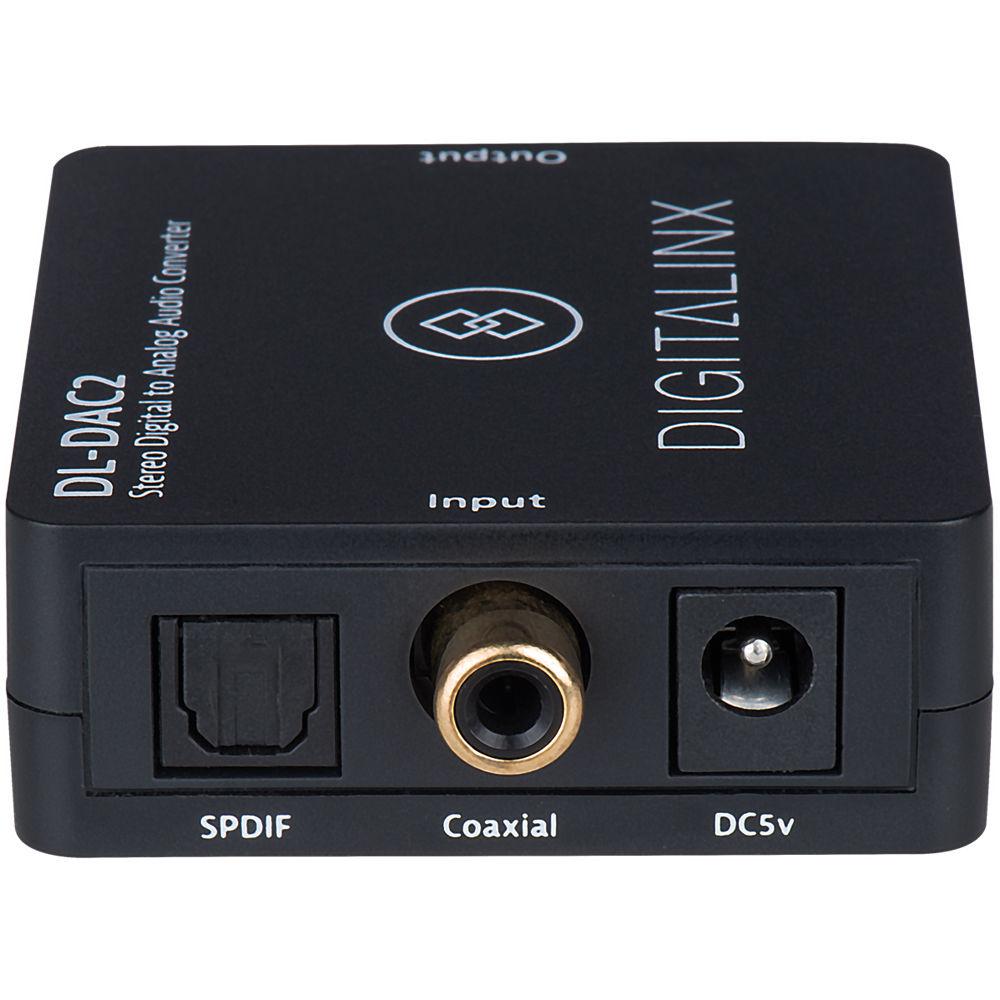

- Optical S/PDIF and coaxial digital audio inputs

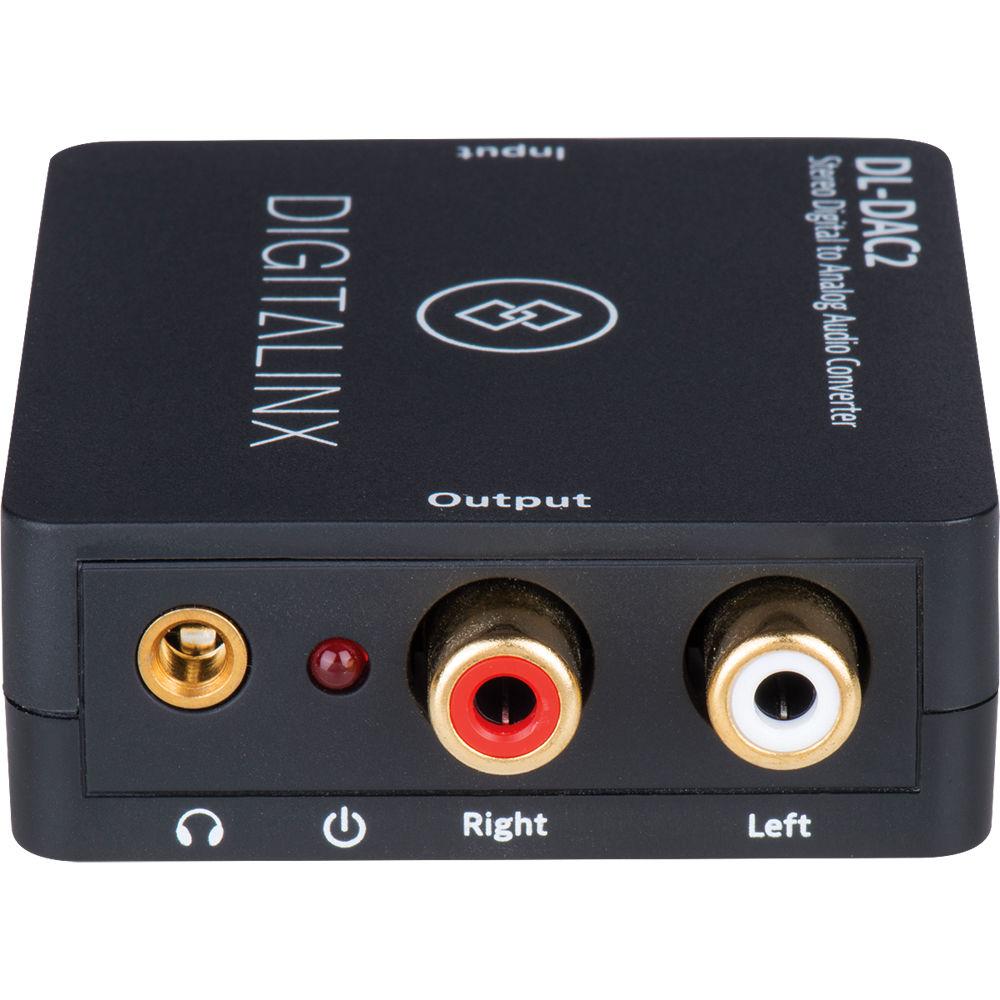

- Dual RCA phono and 3.5mm mini stereo output connectors – pass audio simultaneously
- Built-in surge protection, power LED
- Includes power supply – optional power via USB
UPC: 601446001417 In the Box Digitalinx DL-DAC2 - Stereo Digital to Analog Audio Converter Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx DL-DAC2 - Stereo Digital to Analog Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx DL-DAC2 Specs | I/O Connections | S/PDIF Input: 1 x EIAJ optical connector
Coaxial Input: 1 x RCA connector
Analog Output: 2 x RCA connectors (stereo)
Headphone Output: 1 x 1/8" / 3.5 mm jack
Power Input: 1 x barrel connector with 0.21" / 5.50 mm outside diameter, 0.09" / 2.50 mm inside diameter

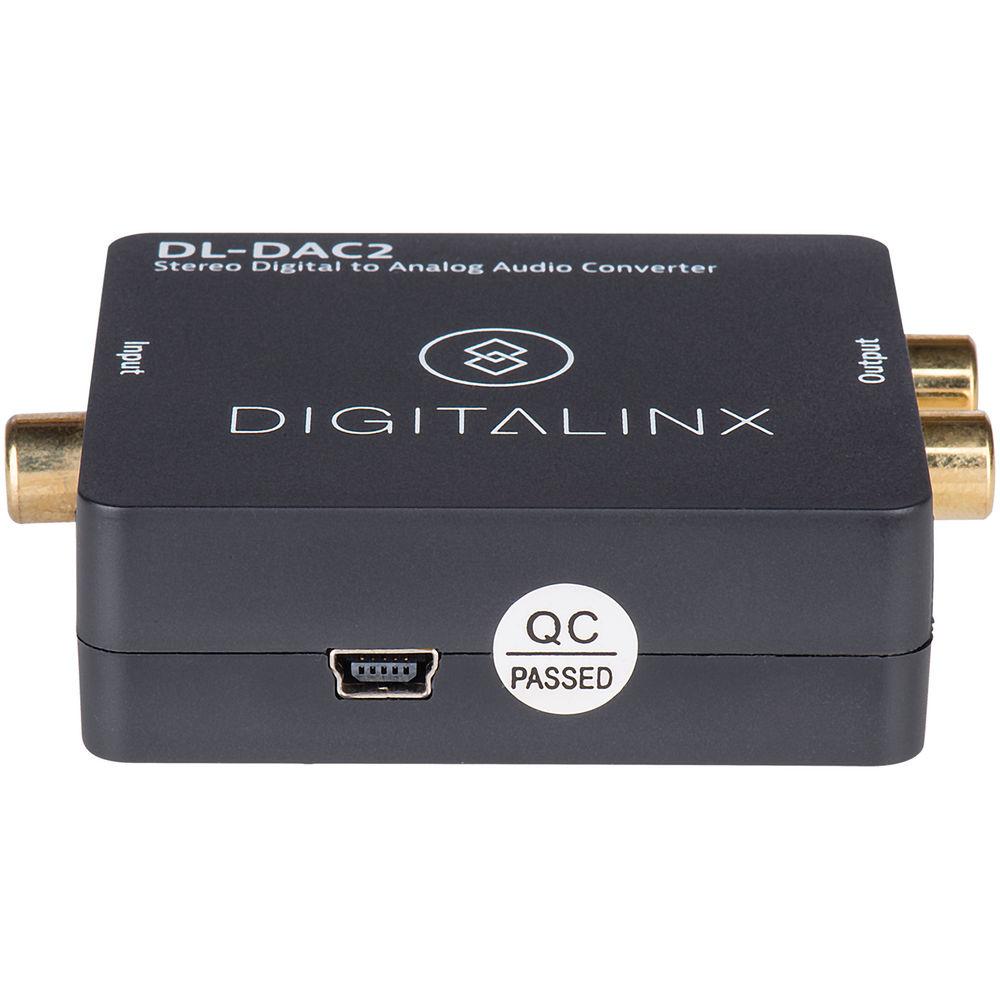

USB Input: 1 x USB Mini-B connector (alternate power input) | | Digital-to-Analog Converter (DAC) | Supported PCM 2-Channel Audio: 32, 44.1, 48, 96 kHz
Output Signal-to-Noise Ratio: 120 dB
Output Frequency Response: ±0.5 dB (20 Hz to 20 kHz) | | Power | Power Supply Input: 100-240 VAC, 50/60 Hz
Power Supply Output: 5 VDC, 1 A
Power Consumption: 2.5 W (maximum)
ESD Protection: ±8 kV (air-gap discharge), ±4 kV (contact discharge)
Regulatory: FCC, CE, RoHS | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: 14 to 140°F / -10 to 60°C | | Humidity | Operating: 20% to 90%, non-condensing
Storage: 20% to 90%, non-condensing | | Dimensions (H x W x D) | 0.79 x 2.83 x 2.17" / 20.00 x 72.00 x 55.00 mm (with connectors) |
