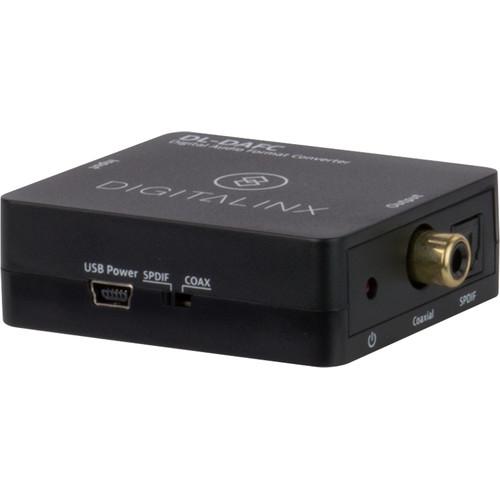

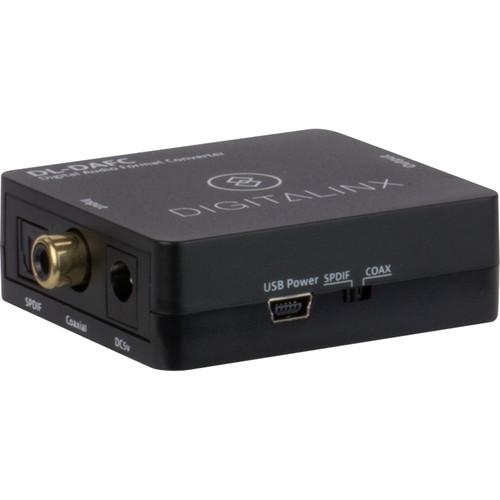

Product description The Digitalinx DL-DAFC provides a simple solution for simultaneous conversion between S/PDIF optical and coaxial digital audio formats. It is ideal for interconnecting digital TVs, players, and other digital audio gear regardless of I/O format.The DL-DAFC passes the signal to both coaxial and optical output ports, enabling it to function as a splitter. It also features a built-in signal amplifier and can serve as a repeater of the audio signal for extending the transferring distance.The unit supports PCM digital audio at resolutions up to 24-bit / 96 kHz, and can be powered via the included power supply, or alternately, via USB. -
- Digital format converter and signal splitter—passes the signal to both coaxial and optical output ports
- Digital coaxial and optical inputs and outputs
- Both digital coaxial and optical outputs are active simultaneously
- Built-in amplification—can serve as a repeater of the audio signal and extend the transferring distance
- Field firmware is upgradeable
- Powered with included power supply or via USB port
UPC: 601446001790 In the Box Digitalinx DL-DAFC - Optical/Coaxial Digital Audio Format Converter Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx DL-DAFC - Optical Coaxial Digital Audio Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

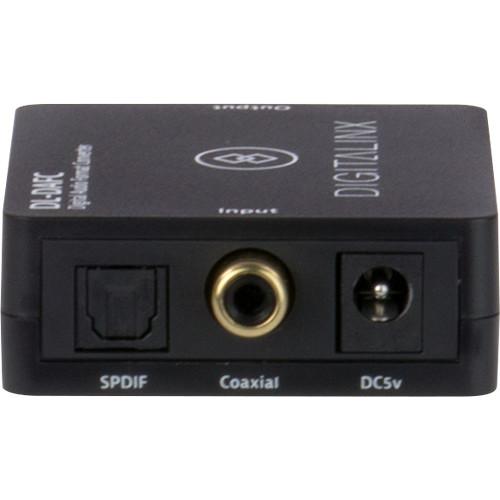

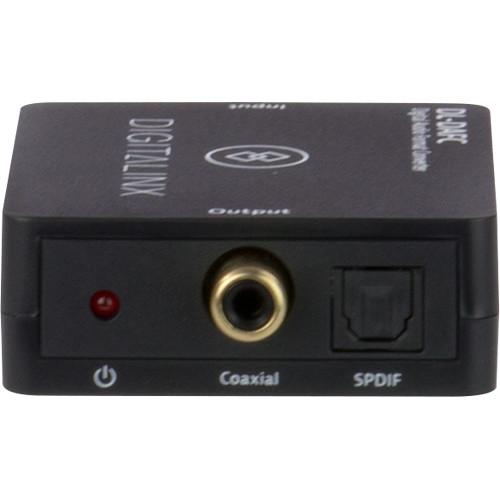

Technical parametersDigitalinx DL-DAFC Specs | I/O Connections | S/PDIF Input: 1 x EIAJ optical connector
Coaxial Input: 1 x RCA connector
S/PDIF Output: 1 x EIAJ optical connector
Coaxial Output: 1 x RCA connector
Power Input: 1 x barrel connector with 0.21" / 5.50 mm outside diameter, 0.09" / 2.50 mm inside diameter
USB Input: 1 x USB Mini-B connector (alternate power input) | | Digital-to-Analog Converter (DAC) | Supported PCM 6-Channel Audio (5.1): 16-, 20-, 24-bit at 32, 44.1, 48, 96 kHz
Supported Digital Audio: Dolby Digital, DTS Output Signal-to-Noise Ratio: 120 dB
Output Frequency Response: ±0.5 dB (20 Hz to 20 kHz) | | Power | Power Supply Input: 100-240 VAC, 50/60 Hz
Power Supply Output: 5 VDC, 1 A
Power Consumption: 2.5 W (maximum)
ESD Protection: ±8 kV (air-gap discharge), ± 4 kV (contact discharge)
Regulatory: FCC, CE, RoHS | | Enclosure | Black ABS plastic | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C | | Humidity | Operating: 20% to 90%, non-condensing
Storage: 20% to 90%, non-condensing | | Dimensions (H x W x D) | 0.79 x 2.83 x 2.12" / 20.00 x 72.00 x 54.00 mm (with connectors) |
