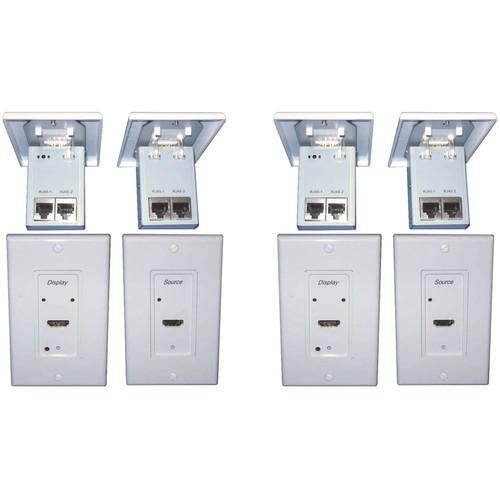

Product description The intelix DL-HDCAT-WP Digital Media Converter Set (Transmitter & Receiver Unit) is an externally powered digital HDMI and DVI Media Converter system to send HDMI and DVI over a standard category cable, unshielded or shielded. This unit uses the included 5 VDC power source. The device is compliant with DVI 1.0 and supports HDMI 1.3 signals. The device is fully compliant with the HDCP protocol. This device is certified HDMI 1.3b Category 1 through an ATC (Authorized Testing Center).
This Digital Media Converter set is ideal for installations where pre-wiring has been done using multiple category cables or where space constraints limit the installation of HDMI or DVI cables. The category cable solution is also good for retrofit applications. The compact design allows the devices to be unobtrusive at the time of final installation. It is recommended to test an application using the customer equipment as the signal from the source device varies among manufacturers.
The system can easily accommodate DVI-only inputs and outputs by using Liberty’s high quality HDMI to DVI interconnects. The DVI connector is routed to the sources and display units, while the HDMI connector plugs into the DigitaLinx Digital Media Converter. The digital audio signal is not transmitted when using DVI connectors. - Digitalinx HDMI 1.4 Wall Plate Transmitter Over CATx (165') Provided by third party: This converter is an externally powered digital HDMI and DVI media converter system to send HDMI and DVI over standard category cable, unshielded or shielded. This converter is ideal for installations where pre-wire has been done with multiple category cables or where space constraints limit installing HDMI or DVI cables.
UPC: 601446158104 - Digitalinx HDMI 1.4 Wall Plate Receiver Over CATx with Power Supply (165') Provided by third party: This converter is an externally powered digital HDMI and DVI media converter system to send HDMI and DVI over standard category cable, unshielded or shielded. This converter is ideal for installations where pre-wire has been done with multiple category cables or where space constraints limit installing HDMI or DVI cables.
UPC: 601446158098 In the Box - HDMI 1.4 Wall Plate Transmitter Over CATx (165') dqvbbavbyvvvttbatwfvfswwewwxewrcd
- HDMI 1.4 Wall Plate Receiver Over CATx with Power Supply (165')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx DL-HDCAT-WP Digital Media Converter Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Digitalinx HDMI 1.4 Wall Plate Transmitter Over CATx (165')
| | | Device Type | Video/audio extender | | Form Factor | Wall mountable | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI | | Max Resolution | 1080p @ 60 Hz | | Max Transfer Distance | 262 ft | | Features | HDCP compliant, 3D support, 1080p resolution support | | | | Interfaces | 1 x HDMI - Type A
2 x network - RJ-45 | | | | Width | 2.8 in | | Depth | 2.8 in | | Height | 4.5 in | | Weight | 5.08 oz | | | | Service & Support | Limited warranty - 1 year | | | | Min Operating Temperature | 50
