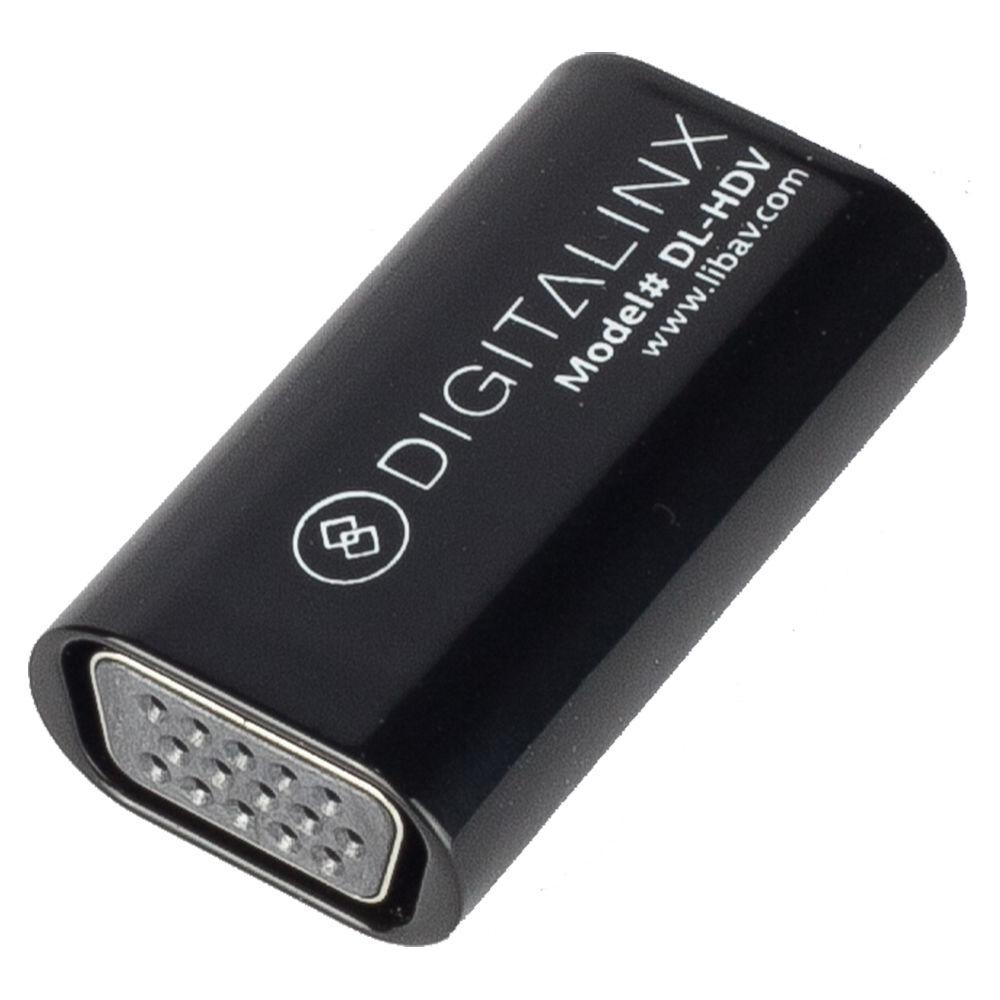

User Manual for Digitalinx DL-HDV HDMI to VGA Converter Click to enlarge the picture
Contents of the user manual for the Digitalinx DL-HDV HDMI to VGA Converter
- Product category: Signal Converters Digitalinx
- Brand: Digitalinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digitalinx Signal Converters
 |
User manual for the Digitalinx DL-HDV HDMI to VGA Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digitalinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digitalinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digitalinx product will considerably shorten its lifespan!
|

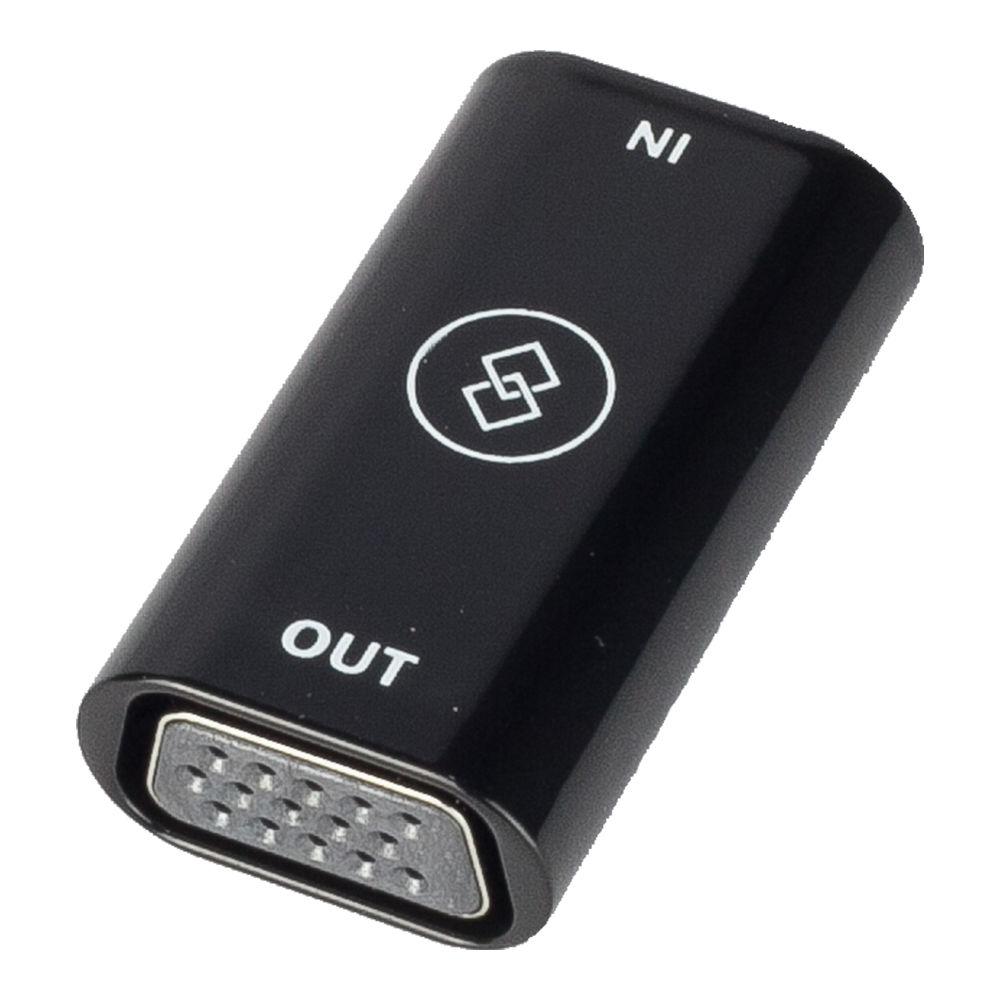

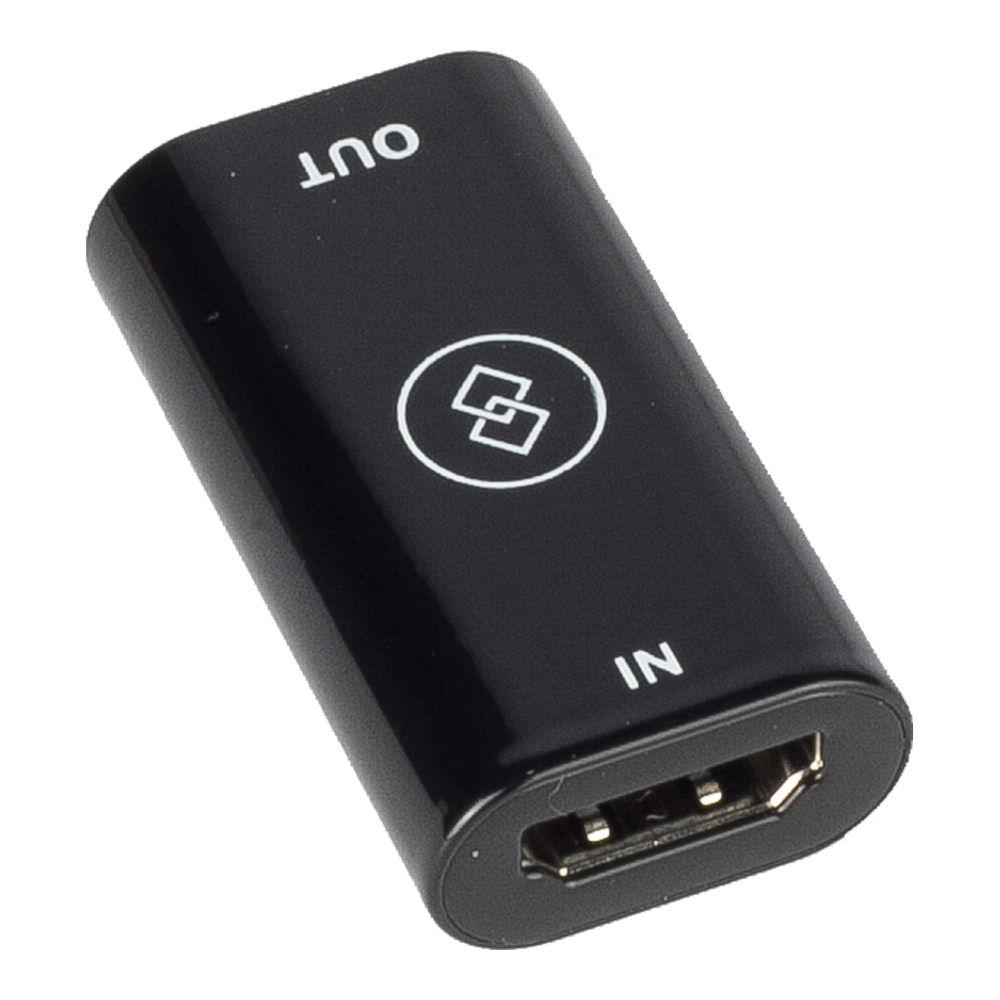

Product description The DL-HDV HDMI to VGA Converter from DigitaLinx is designed to connect digital video sources to an analog display or projector. It supports HDTV video resolutions up to 1080p and VESA video resolutions up to 1920 x 1200. The small form factor and lack of external power source makes DL-HDV suitable for use with mobile devices with an HDMI output. With help of this converter, you can connect your devices easily to any legacy video systems. - Features
-
- Complies with HDCP specifications
- Converts non-encrypted signals
- Maintains native resolution and aspect ratios
- Supports signals up to 1080p and 1920 x 1200
- No power required (powered from VGA 5V)
- Compact and durable metal housing
- Applications
-
- Adapt older displays to new sources
- Handy for presenters
In the Box Digitalinx DL-HDV HDMI to VGA Converter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx DL-HDV HDMI to VGA Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx DL-HDV Specs | | | HDMI Input | 1 x HDMI type A receptacle connector | | VGA Output | 1 x HD15 female type | | | | Resolutions | HDTV:
720p (1280 x 720), 1080p (1920 x 1080)
VESA:
800 x 600, 1024 x 768, 1152 x 864, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 900, 1680 x 1050, 1920 x 1200 | | Maximum Distance | 10' (3 m) via HDMI/VGA | | | | Power Source | 5 VDC via the connected VGA device | | Power Consumption | 5 W (maximum) | | | | ESD Protection | ±8 kV (air-gap discharge), ±4 kV (contact discharge) | | Regulatory | FCC, CE, RoHS | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, non-condensing | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Storage Humidity | 20 to 90%, non-condensing | | | | Material | Painted zinc alloy | | Dimensions | 0.90 x 0.46 x 1.63" (23.0 x 11.8 x 41.5 mm) | | Weight | Not specified by manufacturer |
