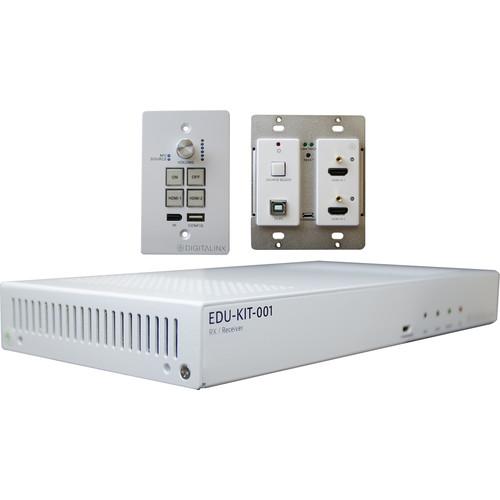

Product description Provided by third party: The Digitalinx EDU-KIT-001 is a multi-function AV distribution system designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit.
- Key Features
-

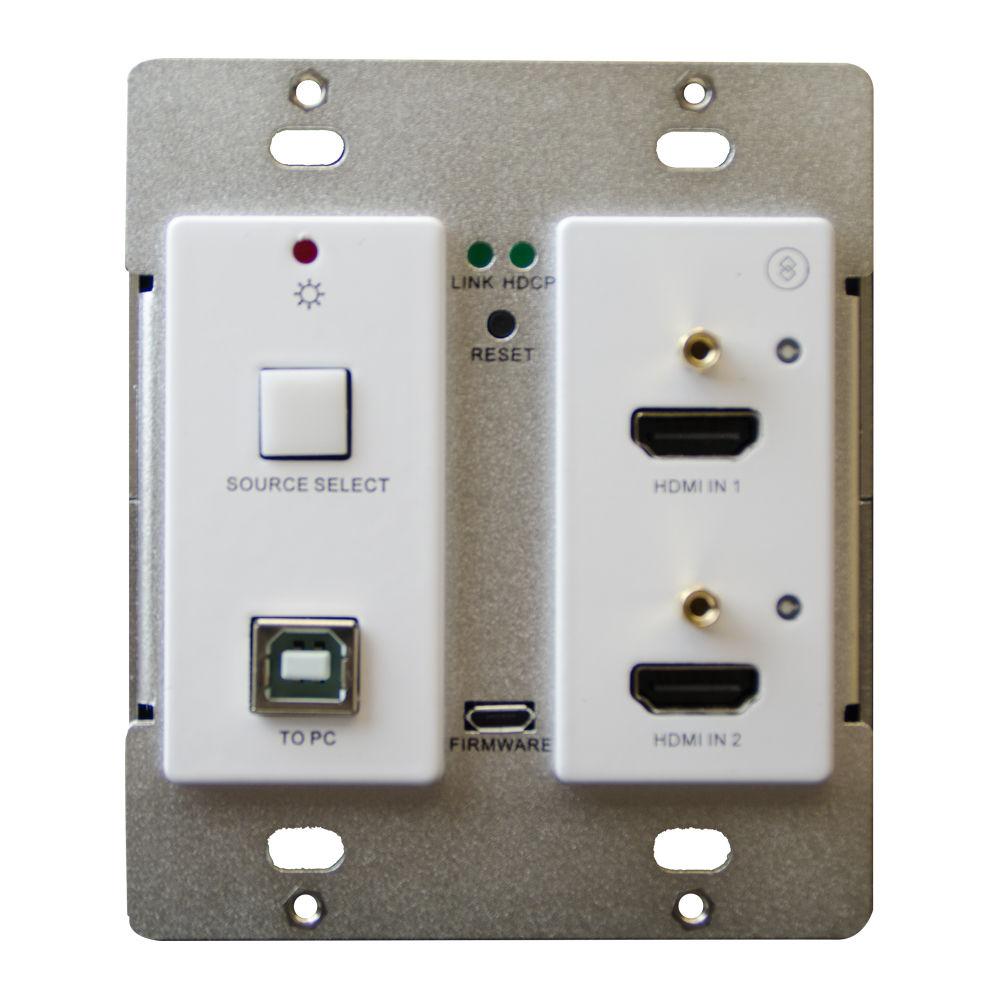

- WALLPLATE TRANSMITTER FEATURES:
- Two HDMI inputs with automatic or manual switching modes
- USB-B 2.0 connection for local PC and interactive whiteboard integration
- System uses HDBaseT 2.0 technology circuit for AV and USB 2.0 extension
- Single twisted pair for data and power

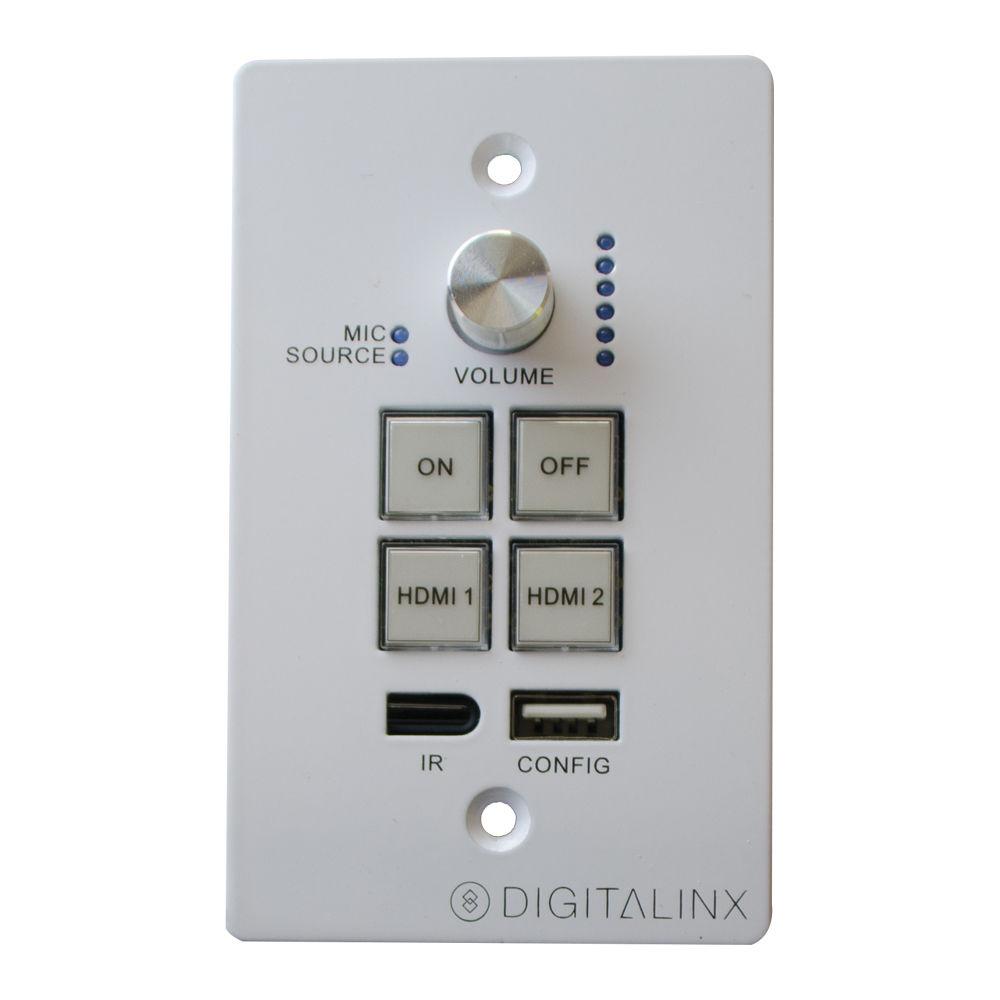

- WALLPLATE CONTROL PANEL FEATURES:
- System on/off
- Mic and source volume control
- IR learning for controlling connected devices
- Single twisted pair for data and power

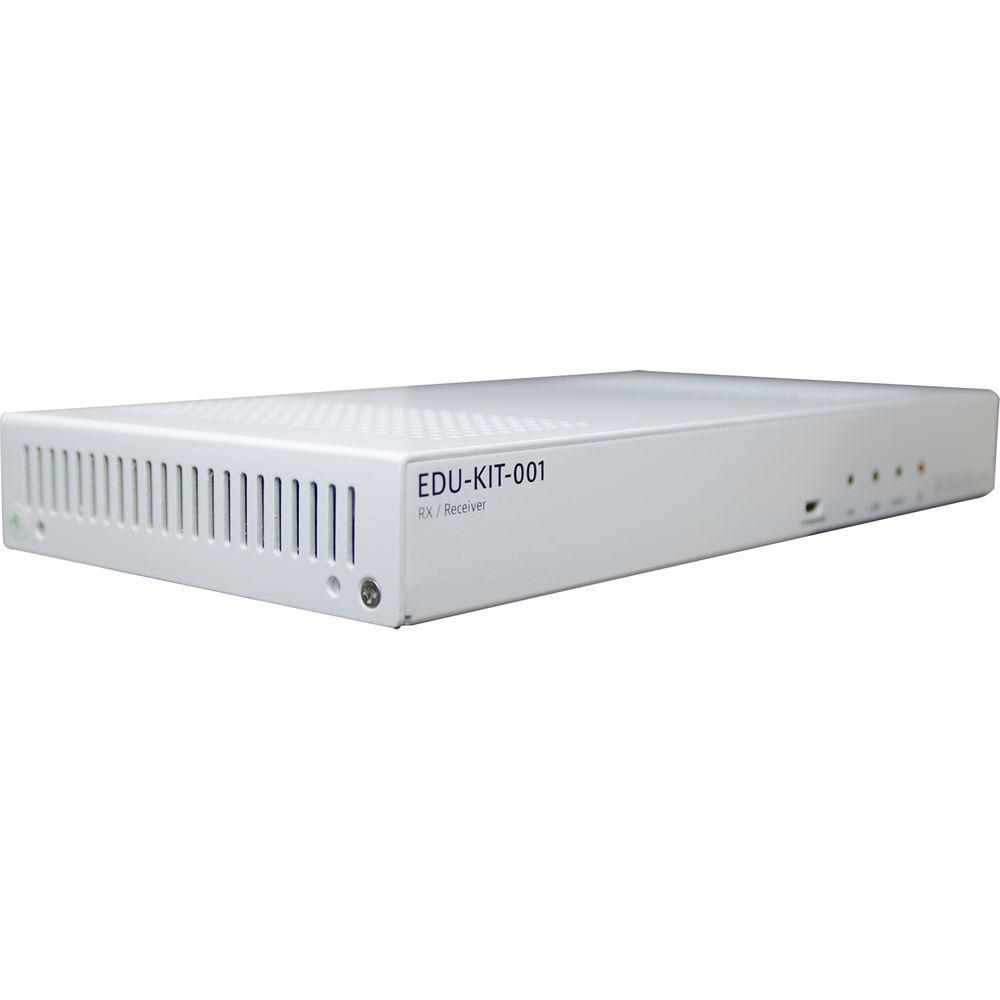

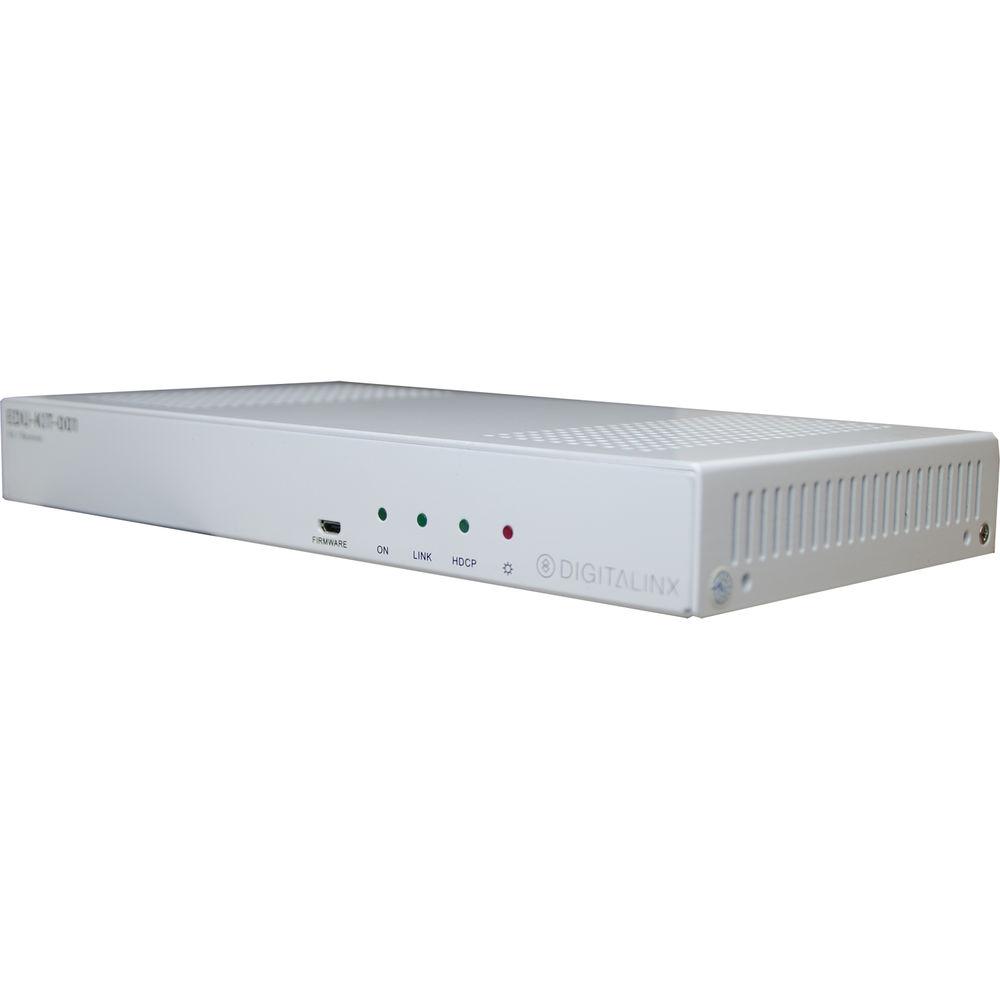

- RECEIVER/PROCESSOR FEATURES:
- Mic/line input
- HDMI output with audio de-embedding
- TCP/IP connectivity for system wide monitoring and diagnostics
- USB-A connection for local PC and interactive whiteboard integration
- Hardware for ceiling or wall mounting
UPC: 601446002049 Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx HDMI AV Distribution & Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx EDU-KIT-001 Specs | | | Type | Audio/video distribution system | | Width | 9.8 in | | Depth | 5.1 in | | Height | 1.2 in | | | | Features | Built-in 2 x 20 watts audio amplifier | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50/60 Hz | | Max Power Consumption | 60 W | | | | Kit Content | (1) x wallplate control panel
(1) x wallplate transmitter - 2 HDMI Input
(1) x USB cable
(1) x power adapter
(1) x IR transmitter
(1) x serial cable
(3) x 3-pole terminal block
(1) x 2-pole terminal block
(1) x 4-pole terminal block

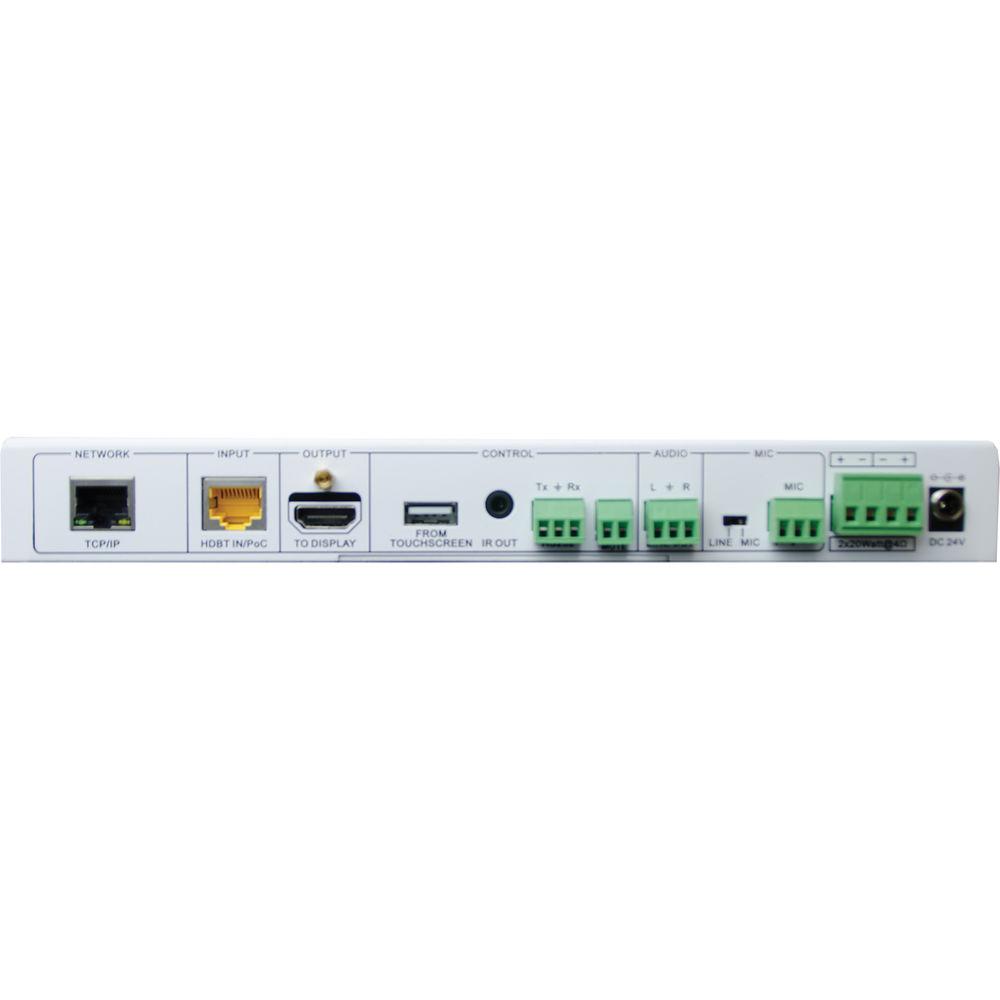

(1) x mounting hardware | | | | Terminals | (1) x network - RJ-45
(1) x HDBaseT input - RJ-45
(1) x HDMI output - 19 pin HDMI Type A
(1) x USB - 4 pin USB type A
(1) x infrared output - mini-phone 3.5 mm
(1) x serial - terminal block
(1) x remote control bus - terminal block
(1) x audio line-out - terminal block
(1) x audio line-in / microphone - terminal block
(2) x speakers output - terminal block
(1) x USB - Micro-USB Type B | | | | Min Operating Temperature | 32
