User Manual for Digitalinx HDMI Handheld Cable Continuity Tester Click to enlarge the picture
Contents of the user manual for the Digitalinx HDMI Handheld Cable Continuity Tester
- Product category: Cable Testers & Tone Generators Digitalinx
- Brand: Digitalinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digitalinx Cable Testers & Tone Generators
|
User manual for the Digitalinx HDMI Handheld Cable Continuity Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digitalinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digitalinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digitalinx product will considerably shorten its lifespan!
|

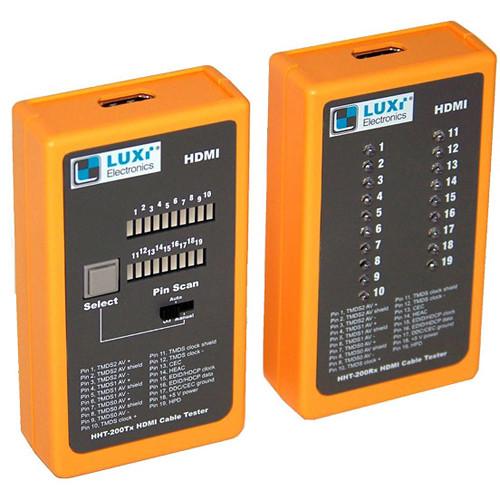

Product description The Luxi Electronics HDMI Continuity Tester from Digitalinx is a compact, handheld cable open/short tester that measures the continuity of each of the 19 wires in an HDMI 2.0 cable, including HDMI Ethernet/Return Audio wires. The status of all the wires is indicated individually across 19 LEDs.
The tester consists of a transmitter and receiver. The benefit of a dual unit system is that you can test cables installed inside of walls by plugging one end into the transmitter and the other into the receiver, whereas a single-unit system requires both ends to be plugged into one device.
Only a single 9V battery (not included) is required for powering both units. The battery installs into the transmitter and power is communicated over the HDMI cable. - Key Features
-
- Test continuity of all 19 wires of HDMI 2.0 cables
- 19 LED indicators
- Transmitter/receiver dual unit system allows for in-wall cable testing
- Test open/connect for all wires
- Test short circuit between wires or to ground
- Rugged plastic enclosures
- Powered by single 9V battery (not included)
UPC: 601446007266 In the Box Digitalinx HDMI Handheld Cable Continuity Tester Transmitter Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx HDMI Handheld Cable Continuity Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx 75-002-01 Specs | HDMI Support | HDMI 2.0 | | Connectors | Transmitter:
1 x HDMI type-A, female
Receiver:
1 x HDMI type-A, female | | Dimensions | Transmitter/Receiver:
4.1 x 2.3 x 1" (10 x 6 x 2.5 cm) | | Weight | Transmitter:
3.2 oz (92 g)
Receiver:
2.3 oz (66 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 11.05 x 9.7 x 3.85" |
