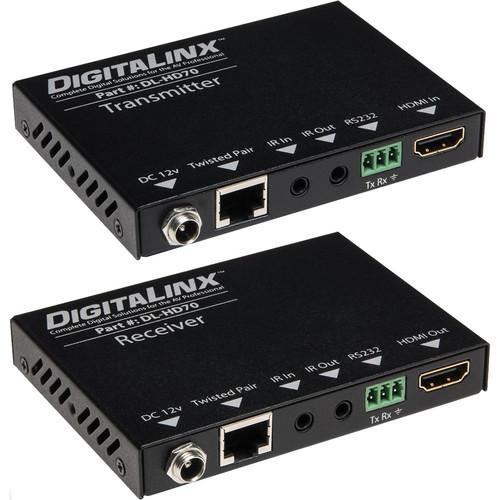

Product description The Intelix HDMI Over Twisted Pair Extender with Power and Control is a transmitter and receiver set that allows you to transmit a HDMI signal, bidirectional IR control, and RS-232 control up to 230 ft over a single Cat6 or greater cable. It supports resolutions up to 1080p and 4K, and 3D video. 4K can be transmitted up to 131 ft.
Only one power supply is required, connected at either the transmitter or receiver end, as one unit will transmit power to the other. An 18V power supply with a screw-on connector is included. Two IR emitters, two IR receivers, and two pairs of mounting brackets are also included. The individual transmitter and receiver units are not compatible with other HDBaseT devices due to proprietary PoE circuitry. - Key Features
-
- HDMI transmission up to 230 ft over Cat6 or greater cable
- Supports 1080p, 4K x 2K, and 3D video
- Bidirectional Wideband IR and RS232 pass-through
- Power supply required only on one end
- CEC supported
- Built-in surge protection

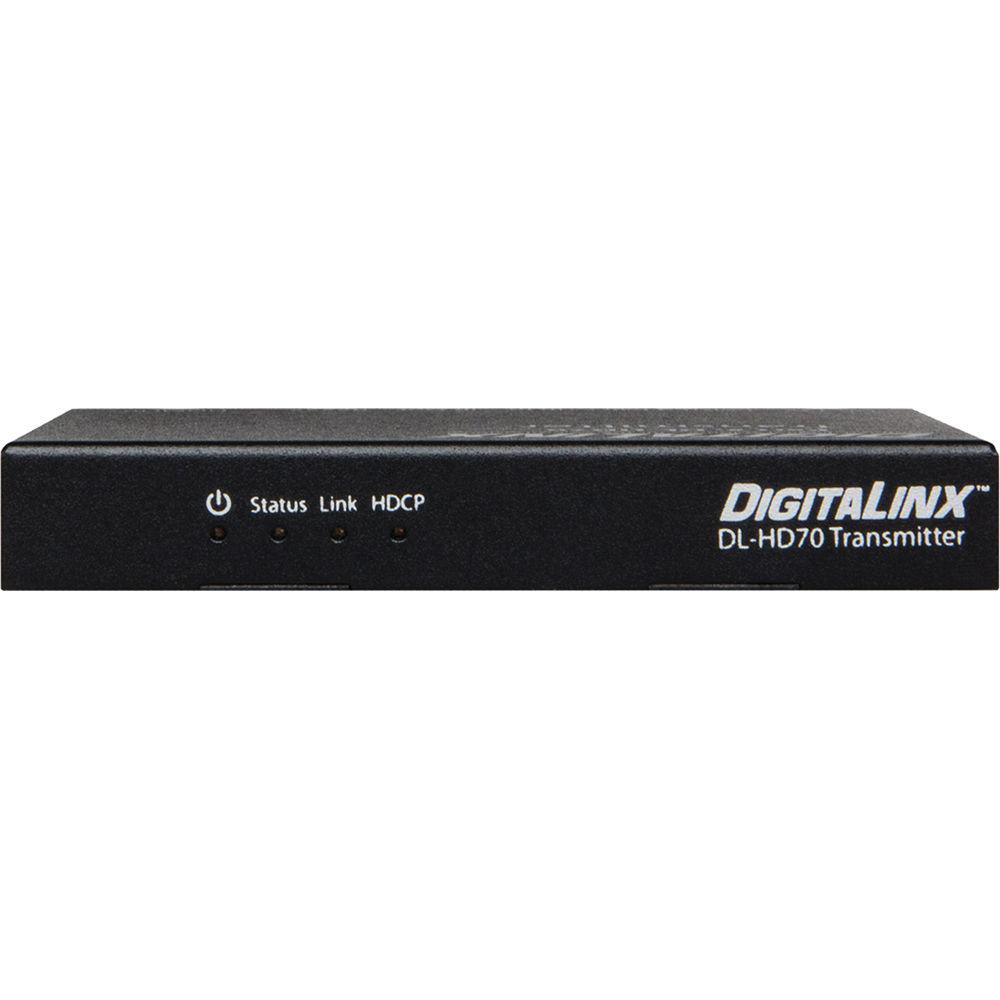

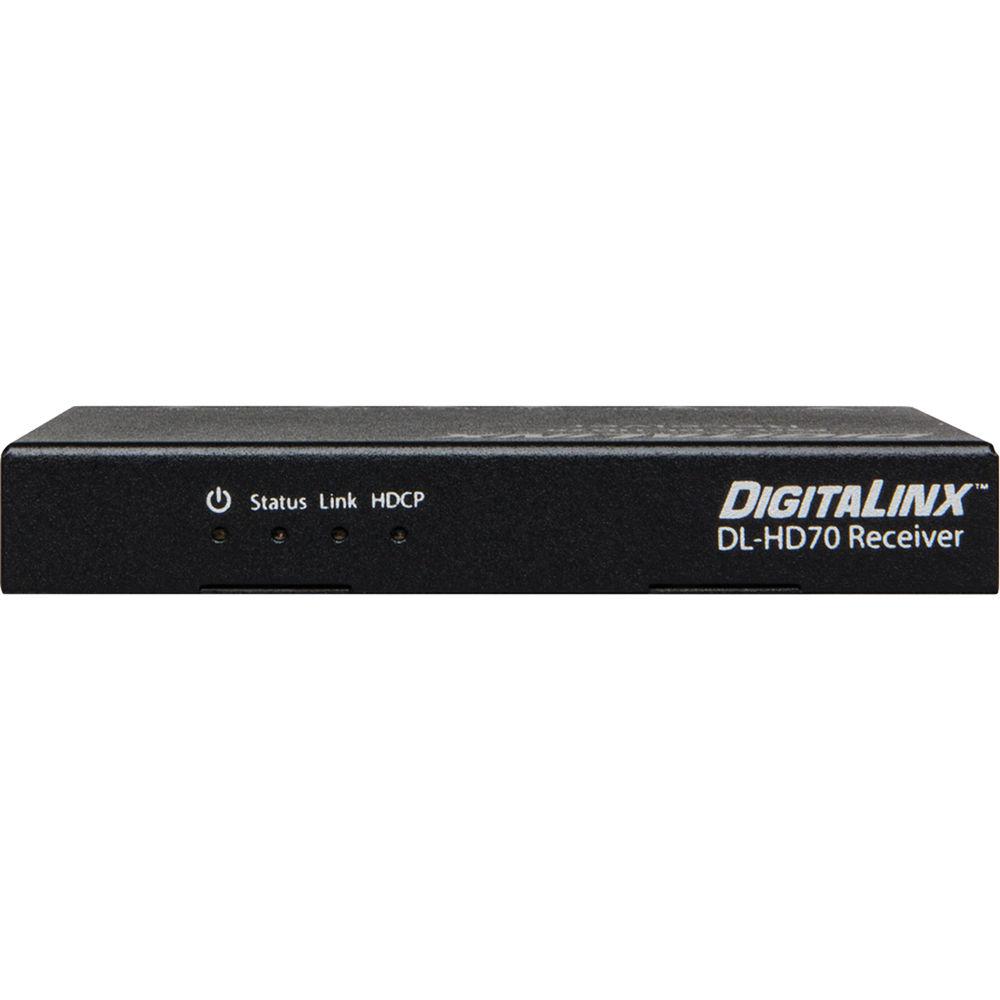

- Power, Status, Link, and HDCP diagnostic LEDs
- HDCP compliant
- Locking power connector included
- Also includes two IR emitters/receivers and two sets of mounting brackets
UPC: 601446000991 In the Box Digitalinx HDMI Over Twisted Pair Extender with Power and Control 18V Power Supply with Screw-On Connector (U.S. Power Cord) 2 x IR emitters 2 x IR Receivers 2 x Sets of L Mounting Brackets with Screws Installation Guide 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx HDMI Over Twisted Pair Extender with Power and Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

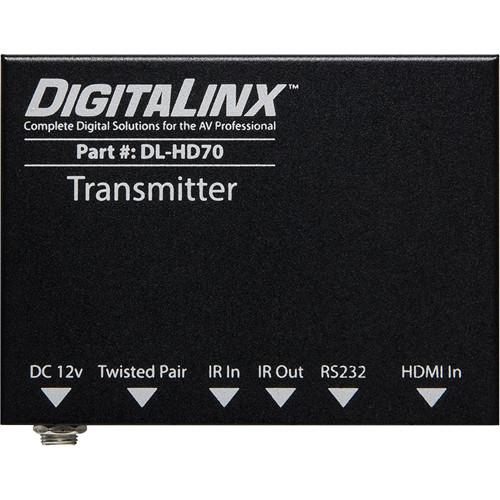

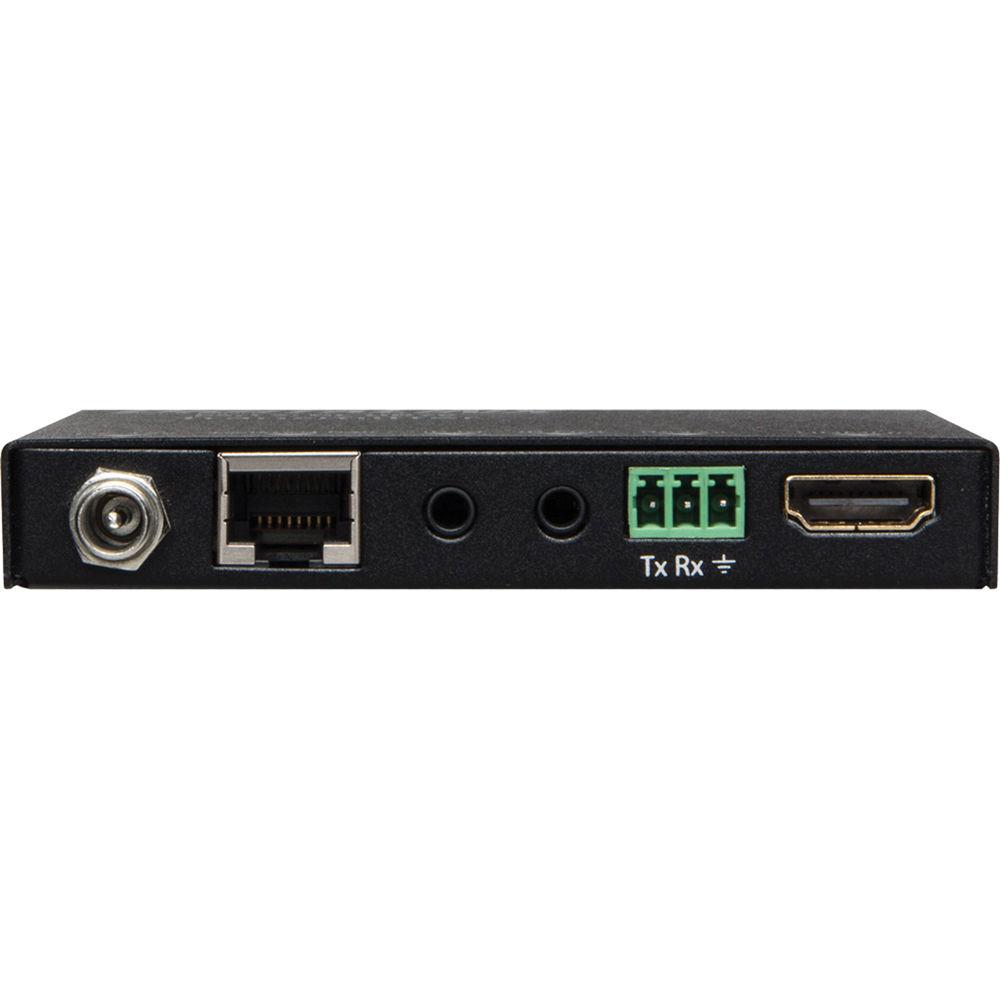

Technical parametersDigitalinx DL-HD70 Specs | Input / Output | Transmitter:
1x HDMI type A input
1x Shielded RJ45 output, 8P8C
1x IR emitter port, 3.5 mm TRS jack
1x IR receiver port, 3.5 mm TRS jack
1x RS-232 port, 3-Pole Euroblock connector
1x Locking DC power port, 5.5 mm outside diameter / 2.1 mm inside diameter

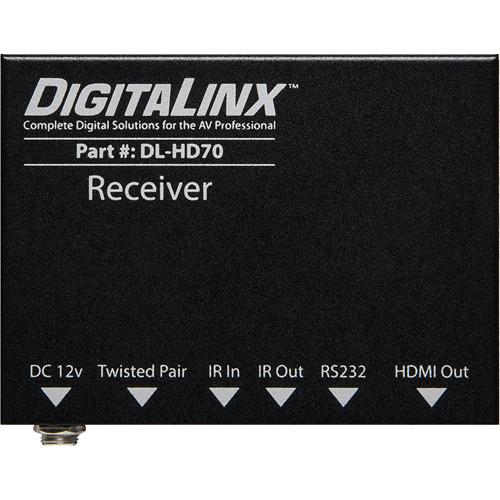

Receiver:
1x HDMI type A output
1x Shielded RJ45 input, 8P8C
1x IR emitter port, 3.5 mm TRS jack
1x IR receiver port, 3.5 mm TRS jack
1x RS-232 port, 3-Pole Euroblock connector
1x Locking DC power port, 5.5 mm outside diameter / 2.1 mm inside diameter | | Maximum Distance | Over Cat6:
197 ft (60 m): Deep Color 36/30/24 bit at 1080p
115 ft (35 m): Deep Color 48 bit at 1080p, 3D, and 4K x 2K
Over Cat6 or greater with shielded connectors:
230 ft (70 m): Deep Color 36/30/24 bit at 1080p
131 ft (40 m): Deep Color 48 bit at 1080p, 3D, and 4K x 2K
Maximum HDMI Distance:16 ft (5 m) | | Compliance | HDMI, HDCP, and CEC | | Embedded Audio | Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | Input DDC Signal | 5.0 V p-p (TTL) | | Input Video Signal | 0.5 - 1 V p-p | | IR Frequency Range | 33-55 kHz at 5 V | | RS-232 Baud Rate | Up to 115200 baud | | HDBaseT Signal Characteristics | Maximum Distance: 230 ft (70 m)
Cable Requirements: Solid core Cat6 or 6A with TIA/EIA-568B crimp pattern
Bandwidth: 10.2 Gbps
Gain: 0 dB - 10 dB at 100 MHz
Resolution Range: 800 x 600 - 1920 x 1200
Signal to Noise Ratio (SNR): > 70 dB at 100 MHz over 328 ft (100 m)
Return Loss: < -30 dB at 5 KHz
Total Harmonic Distortion (THD): < 0.005% at 1 KHz
Min-Max Signal Level: < 0.3 - 1.45 V p-p
Differential Phase Error: ±10° at 135 MHz over 328 ft (100 m) | | Housing | Painted steel | | Maximum Power Consumption | Transmitter: 3 W; Receiver: 6 W | | Power Supply | 18 V DC | | ESD Protection | 15 kV | | Regulatory | CE, RoHS | | Operating Temperature | Environment: 32 to 104°F (0 to 40°C)
Chassis: 88°F (31°C) (Transmitter); 100°F (38°C) (Receiver) | | Storage Temperature | Environment: 14 to 140°F (-10 to 60°C) | | Operating Humidity | Environment: 20 to 90%, non-condensing | | Storage Humidity | Environment: 20 to 90%, non-condensing | | Dimensions | 5.3 x 2.9 x 0.6" (13.5 x 7.4 x 1.5 cm) | | Weight | Approx.1 lb total (Approx. 0.45 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 7.795 x 5.512 x 3.858" |
