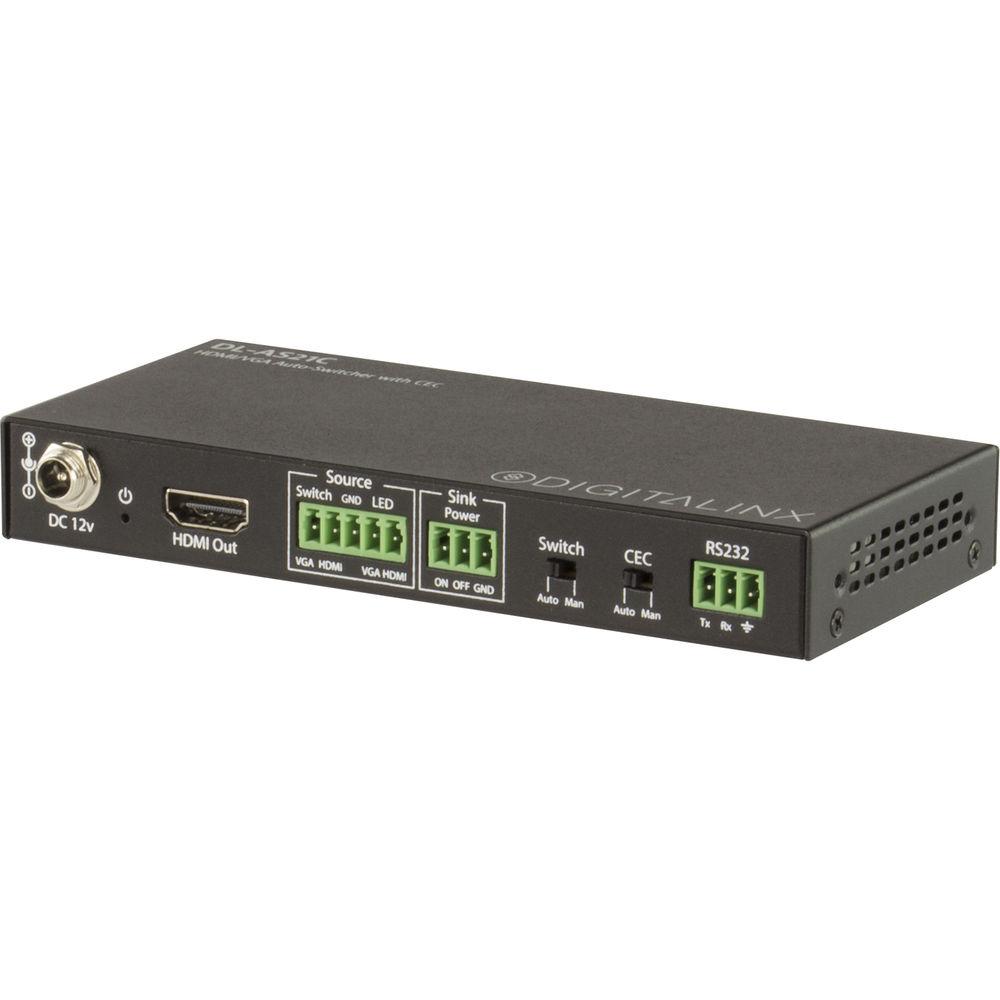

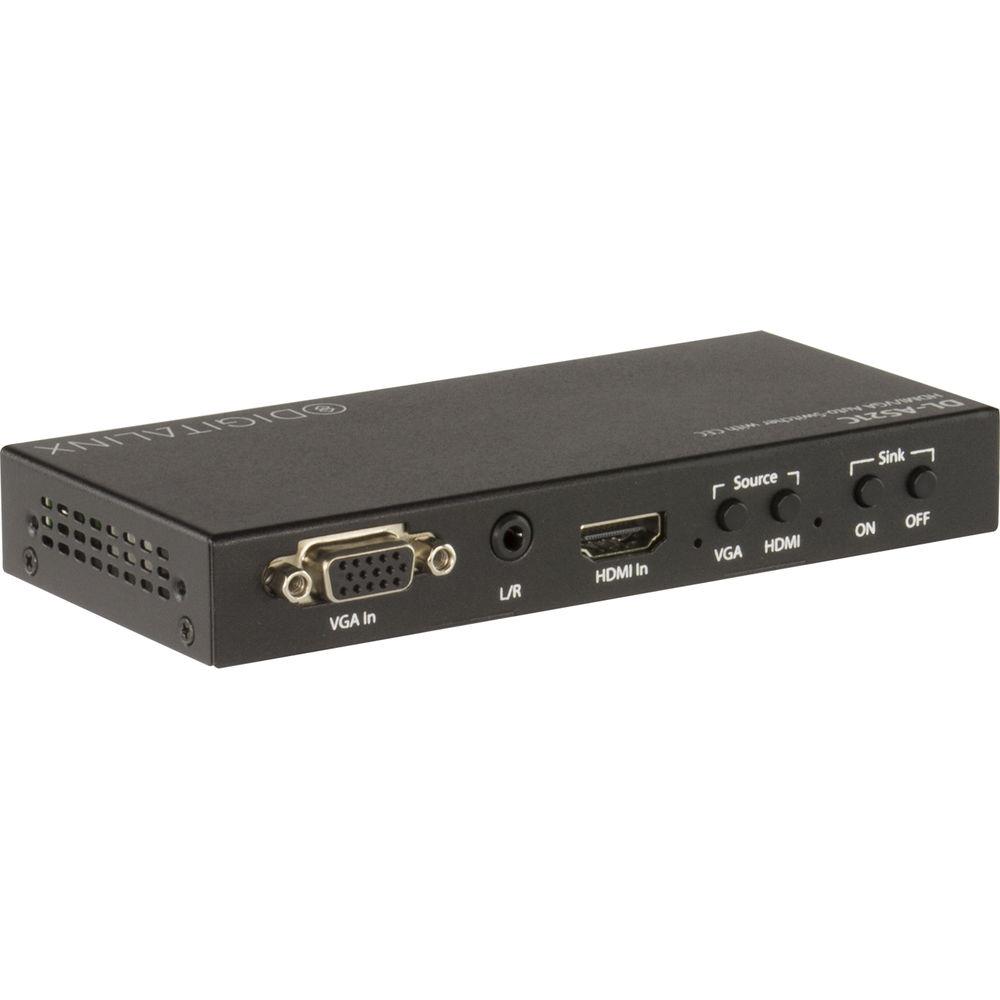

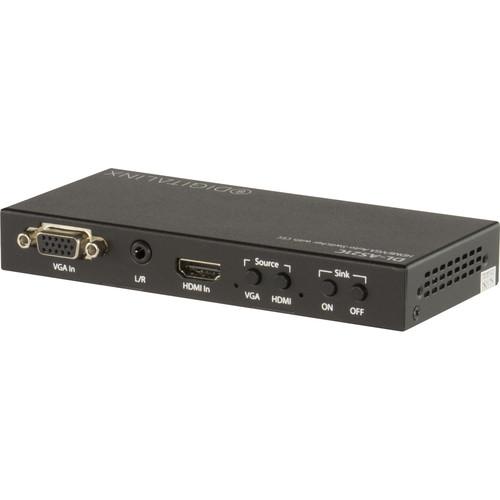

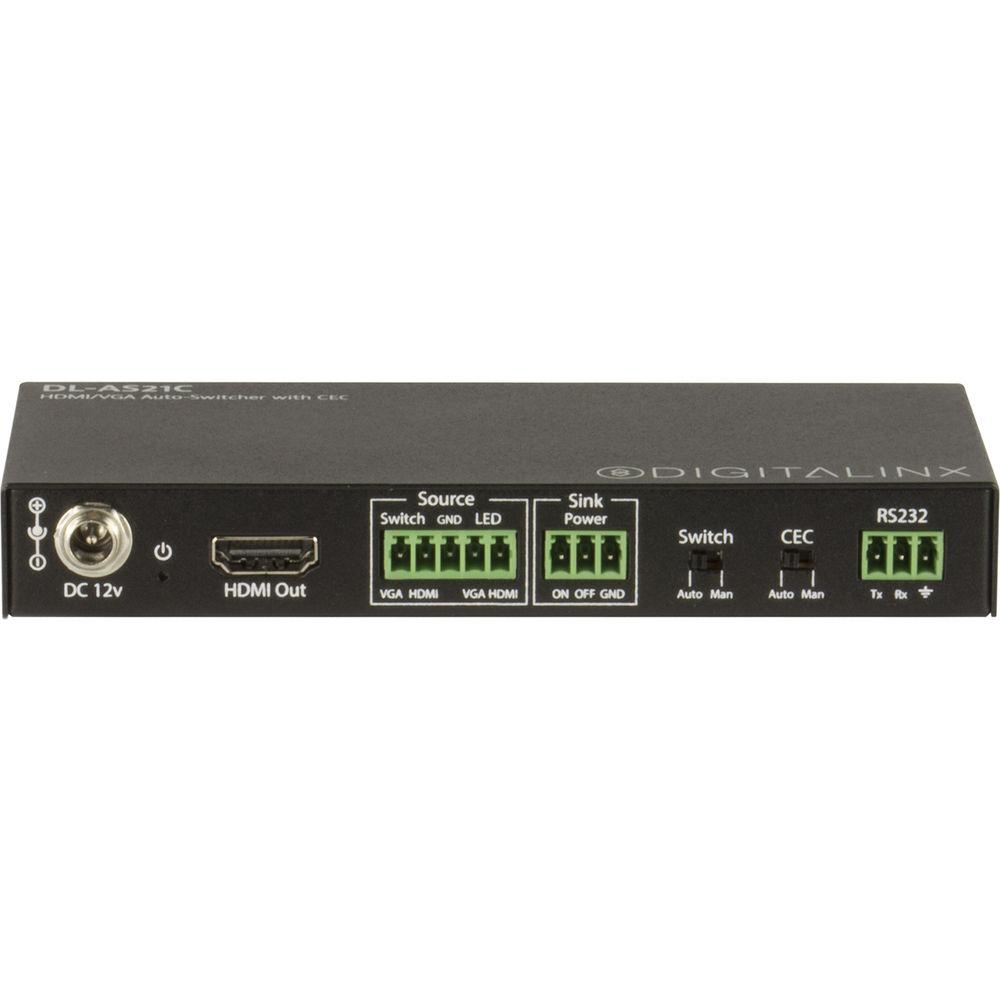

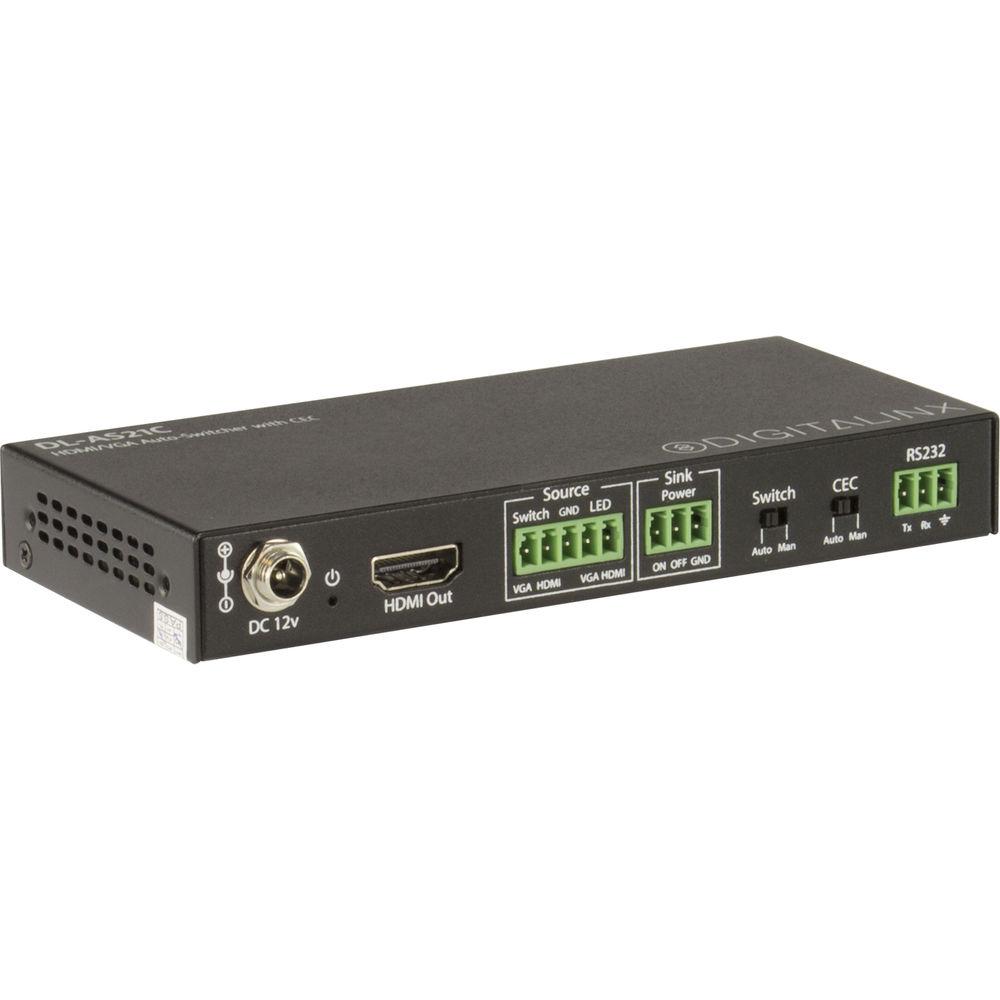

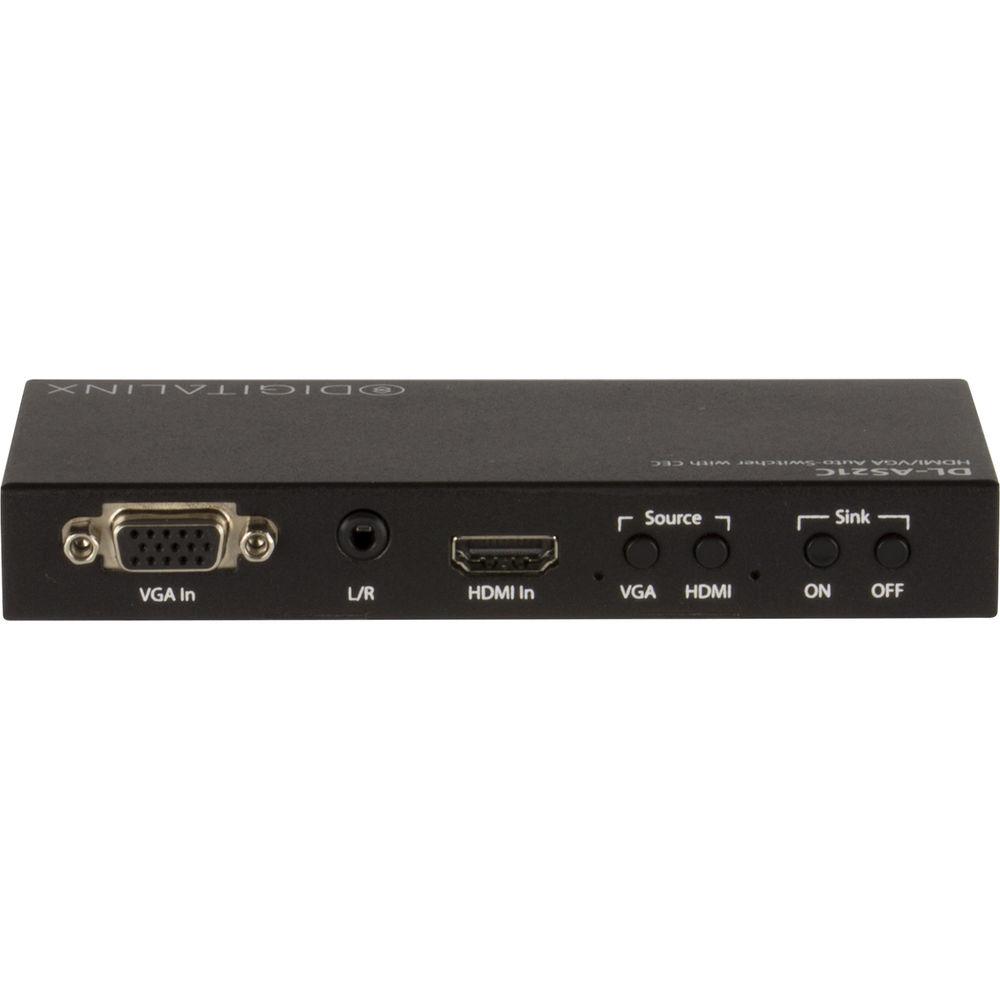

User Manual for Digitalinx HDMI VGA Auto-Switcher with CEC Control Click to enlarge the picture
Contents of the user manual for the Digitalinx HDMI VGA Auto-Switcher with CEC
- Product category: Routers & Switchers Digitalinx
- Brand: Digitalinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digitalinx Routers & Switchers
 |
User manual for the Digitalinx HDMI VGA Auto-Switcher with CEC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digitalinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digitalinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digitalinx product will considerably shorten its lifespan!
|
Product description The DigitaLinx HDMI/VGA Auto-Switcher is a compact multi-format switcher with support for video resolutions up to DCI 4K (4096 x 2160). Featuring one input each of HDMI and VGA with stereo audio, it automatically or manually switches either input to a single HDMI output. It offers multiple methods of control.When multiple sources are live simultaneously, the auto mode will allow the switcher to automatically switch to the newest source device, with VGA taking precedence. It can also be manually controlled via the front panel buttons, RS-232, or contact closure. The switcher features a built-in CEC controller that allows you to control the connected display by auto-selecting the source device's status. - HDMI supports 1080p, 3D, and 4K video with 2.0/5.1 audio
- VGA supports up to 1920 x 1200 with audio embedding
- Built-in EDID settings and EDID pass-through
- HDMI output with CEC control of display
- Manual, RS-232, contact closure, and automatic switching
Applications - Under-table switcher for conference tables
- Easy integration of legacy components into a digital environment
- Analog to digital conversion and scaling up to 1920 x 1200
- Suitable for corporate facilities, places of worship, schools, and conference centers
In the Box Digitalinx HDMI/VGA Auto-Switcher with CEC Control Power Supply with AC Adapter (US Plug) 2 x 3-Pole Terminal Block 5-Pole Terminal Block 2 x Mounting L-Bracket 4 x Mounting Screw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx HDMI VGA Auto-Switcher with CEC Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx DL-AS21C Specs | HDMI Input | 1 x HDMI Type A port | | VGA Input | 1 x Female HD15-F connector | | Analog Audio Input | 1 x 3.5 mm TRS jack | | HDMI Output | 1 x HDMI Type A port | | RS-232 | 1 x 3-pole / 3.5 mm Euroblock | | Contact Closure | CEC On/Off: 1 x 3-pole / 3.5 mm Euroblock
HDMI/VGA Select with LED: 1 x 5-pole / 3.5 mm Euroblock | | Switch | Auto Mode: 1 x Two-position switch
CEC On/Off: 1 x Two-position switch
Front Panel Control: 4 x Pushbutton | | Power Connector | 12 VDC: 1 x Threaded barrel (5.5 mm OD; 2.6 mm ID) | | Supported Input Resolutions | Via HDMI/DVI:
4096 x 2160 @ 24 / 25 / 30 Hz
3840 x 2160 @ 24 / 25 / 30 Hz
1920 x 1440 @ 60 Hz
1920 x 1200 @ 60 Hz
1920 x 1080 @ 60 Hz
1856 x 1392 @ 60 / 75 Hz
1792 x 1344 @ 60 Hz
1680 x 1050 @ 60 Hz
1600 x 1200 @ 60 / 65 / 70 / 75 / 85 Hz
1600 x 1024 @ 60 Hz
1365 x 1024 @ 60 Hz
1280 x 1024 @ 60 / 75 / 85 Hz
1280 x 960 @ 60 / 85 Hz
1280 x 768 @ 60 / 75 / 85 Hz
1152 x 864 @ 75 Hz
1024 x 768 @ 42 / 60 / 70 / 75 / 85 Hz
800 x 600 @ 60 / 72 / 75 Hz
Via VGA:
1920 x 1200 @ 60 Hz
1920 x 1080 @ 60 Hz
1792 x 1344 @ 60 Hz
1680 x 1050 @ 60 Hz
1600 x 1200 @ 60 / 65 / 70 / 75 Hz
1600 x 1024 @ 60 Hz
1365 x 1024 @ 60 / 75 Hz
1280 x 1024 @ 60 / 75 Hz
1280 x 960 @ 60 Hz
1280 x 768 @ 60 / 75 Hz
1024 x 768 @ 60 / 70 / 75 Hz
800 x 600 @ 60 / 72 / 75 Hz | | Video | Video Compliance: HDMI, HDCP | | EDID | HDMI EDID:
Pass-through from display
VGA EDID (Set via RS-232):
1920 x 1200
1920 x 1080
1600 x 1200
1280 x 800
1280 x 720
1024 x 768 | | Embedded Audio | Input: PCM 2-channel
Output: AAC 5.1 | | Frequency Response | Analog Audio: 20 Hz to 20 kHz | | Input Impedance | Analog Audio: >10 kOhms | | Output Impedance | Analog Audio: 50 Ohms | | Input DDC Signal | 5 Vpp (TTL) | | Input Video Signal | 0.5 to 1 Vpp | | HDMI Distance | Maximum Passive Distance: 16' (5 m) | | Baud Rate (RS-232) | 9600 baud | | Maximum Power Consumption | 3.8 W | | Power Supply | Input Voltage: 100 to 240 VAC, 50/60 Hz at 0.45 A
Output Rating: 5 VDC at 3 A | | ESD Protection | 15 kV | | Regulatory Approvals | CE, RoHS, UL, TUV, FCC | | Diagnostic Indicators | Power, selected input | | Enclosure | Painted steel | | Operating Temperature | Environment: 32 to 104°F (0 to 40°C)
Chassis: 88°F (31°C) (S); 100°F (38°C) (R) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Humidity | Operating & Storage: 20 to 90%, non-condensing | | Dimensions | 0.8 x 5.6 x 2.5" (20 x 142 x 64 mm) | | Weight | Not Specified by Manufacturer |
