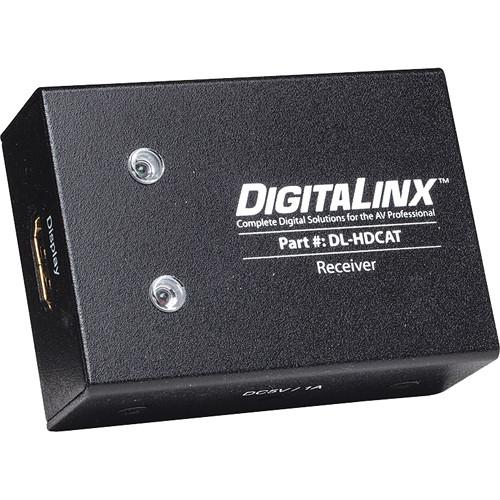

User Manual for Digitalinx Liberty DigitaLinx Twin Category Cable HDMI 1.4 Receiver Click to enlarge the picture
Contents of the user manual for the Digitalinx Liberty DigitaLinx Twin Category Cable
- Product category: Video Extenders & Repeaters Digitalinx
- Brand: Digitalinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digitalinx Video Extenders & Repeaters
|
User manual for the Digitalinx Liberty DigitaLinx Twin Category Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digitalinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digitalinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digitalinx product will considerably shorten its lifespan!
|
Product description The Intelix Liberty DigitaLinx Twin Category Cable HDMI 1.4 Receiver is the receiving end of the DigitaLinx Media Converter HDMI over category cable extension system. This system is applicable in large rooms and similar installations because it allows an HDMI signal to be transmitted over longer distances than traditional HDMI cables allow. This system can also accept and transmit DVI signals when a DVI to HDMI converter is used. As the receiver, this unit converts the transmitted signal back into a conventional HDMI signal for connecting to a display. Also on the receiver is a DC input for the power supply which powers the unit as well as the transmitter when connected via ethernet cable. Cat6 cables are recommended for best performance, especially when distances between the transmitter and receiver exceed 100'. UPC: 601446158302 In the Box Digitalinx Liberty DigitaLinx Twin Category Cable HDMI 1.4 Receiver DC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx Liberty DigitaLinx Twin Category Cable HDMI 1.4 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx DL-HDCAT-R Specs | Input | 2 x 8P8C Shielded Modular Jacks (RJ45) | | Output | 1 x HDMI type A | | Supported Resolutions | 480i, 480p, 720p, 1080i, 1080p in deep color or 3D | | HDCP Compatible | Yes | | Power Consumption | 5 VDC 1.0 Watt from supplied DC unit | | Maximum Transmission Distance | Recommended based on tests done by Intelix:
720p, 1080i: 165' / 50 m
1080p: 100' / 30 m | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 80% (non-condensing) | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Storage Humidity | 5 to 95% (non-condensing) | | Dimensions | 2.6 x 1.9 x 0.9" / 67 x 48 x 24 mm | | Weight | 4.4 oz / 126g |
