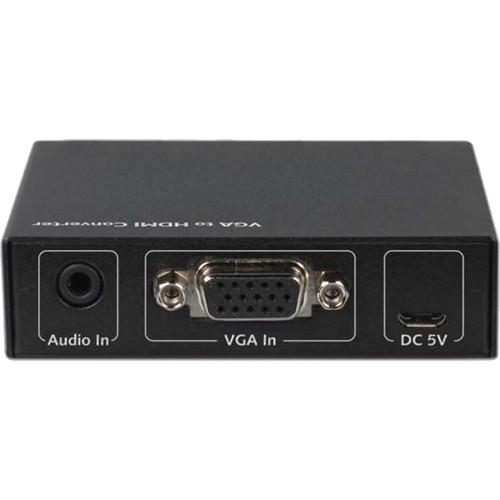

User Manual for Digitalinx VGA with Audio to HDMI Converter Click to enlarge the picture
Contents of the user manual for the Digitalinx VGA with Audio to HDMI
- Product category: Signal Converters Digitalinx
- Brand: Digitalinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digitalinx Signal Converters
|
User manual for the Digitalinx VGA with Audio to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digitalinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digitalinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digitalinx product will considerably shorten its lifespan!
|
Product description The VGA with Audio to HDMI Converter from DigitaLinx converts a VGA and stereo audio signal to HDMI output. It supports resolutions up to 1920 x 1200 (@ 60 Hz) and supports HDMI 1.4 standard. The converter features fixed the EDID mode and offers ESD protection. In addition, it supports plug and play operation. - Suitable for installation requirements
- Support stereo audio input
- Allows you to adapt older sources to newer displays and use legacy laptops with digital infrastructure
In the Box Digitalinx VGA with Audio to HDMI Converter USB to Micro USB Cable 2 x Mounting Ear 2 x Screw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digitalinx VGA with Audio to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigitalinx DL-VHD Specs | | | Video Input | 1 x VGA | | Audio Input | 1 x Stereo audio (3.5 mm) | | Power Input | 1 x Micro USB | | | | Outputs | 1 x HDMI | | Output Connector | 19-pin Type A female HDMI | | HDMI Standard | HDMI 1.4 | | | | VGA Input Resolution | 1920 x 1200 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1920 x 1080 @ 60 Hz, 1440 x 900 @ 60 Hz, 1600 x 1200 @ 60 Hz, 1366 x 768 @ 60 Hz, 1400 x 1050 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1360 x 768 @ 60 Hz, 1280 x 768 @ 60 Hz, 1280 x 800 @ 60 Hz, 1024 x 768 @ 60 Hz, 1280 x 720 @ 60 Hz, 640 x 480 @ 60 Hz, 800 x 600 @ 60 Hz | | | | Power Supply Output | 5 VDC / 0.5 A | | Power Consumption | 1.5 W | | | | Diagnostic Indicators | Power | | Operating Temperature | 32 to + 122°F (0 to 50°C) | | Storage Humidity | 10 to 90%, non-condensing | | Dimensions (W x H x D) | 0.74 x 3.03 x 2.51" (19 x 77 x 64 mm) | | Weight | 0.28 lb (0.13 kg) |
