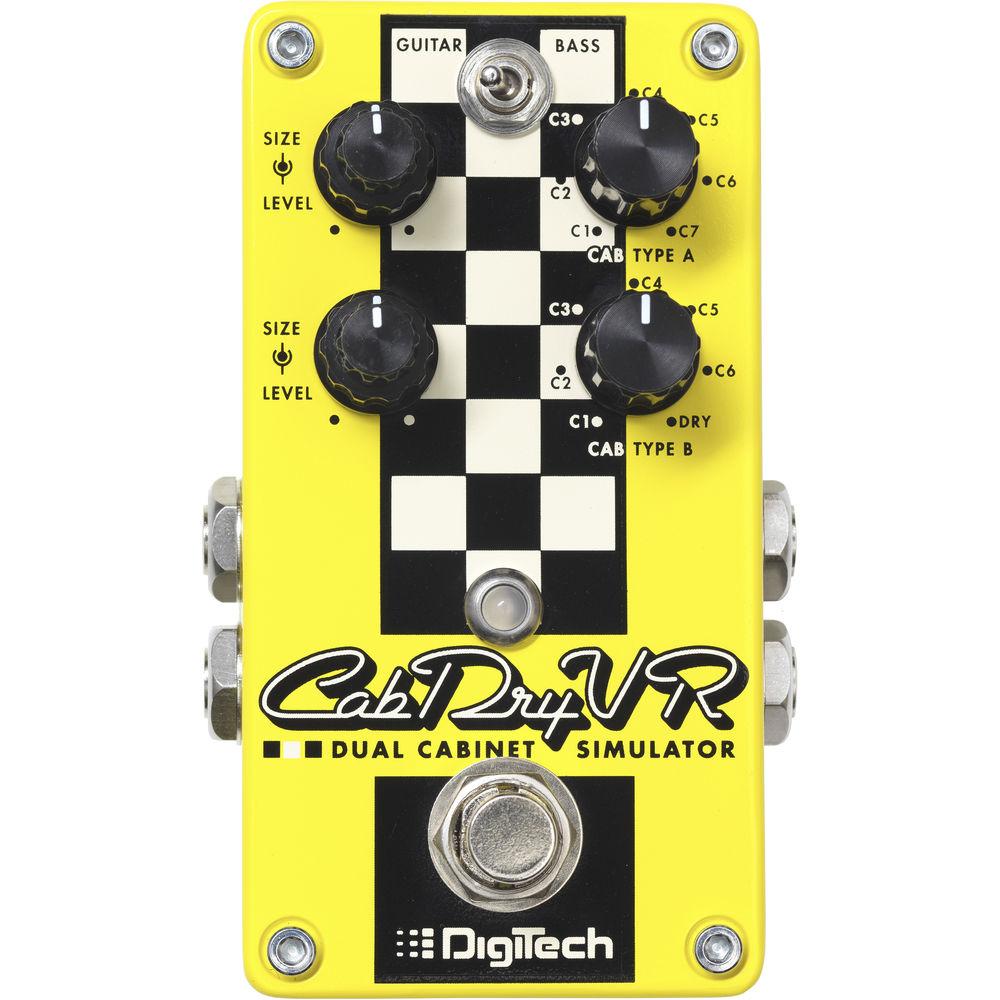

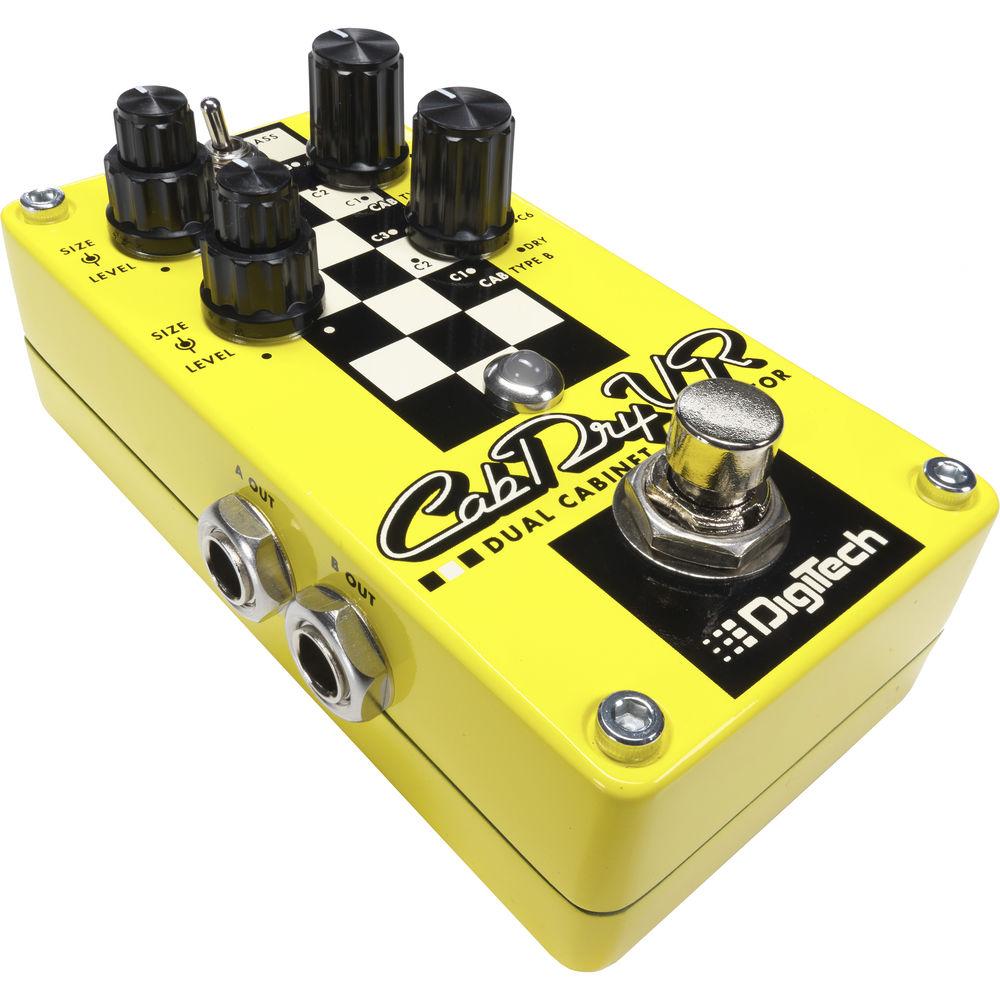

User Manual for DigiTech CabDryVR Dual Cabinet Simulator Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the DigiTech CabDryVR Dual Cabinet Simulator Pedal
- Product category: Effects Pedals DigiTech
- Brand: DigiTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DigiTech Effects Pedals
 |
User manual for the DigiTech CabDryVR Dual Cabinet Simulator Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DigiTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!
|
Product description Intended for use with electric guitar and bass, the CabDryVR Pedal from DigiTech is designed to enhance your tone with the characteristics of favored guitar and bass cabinets, enabling you to send a direct signal that incorporates the emulated sound of a speaker cabinet to a recording interface, DAW, mixing board, house’s PA, in-ear monitors, and more—without the need for an actual cabinet. It does this by providing 14 individual cabinet impulse responses, seven for guitar, and seven for bass. The pedal provides true-stereo operation, offering dual inputs and outputs. When you plug in one source, you can use the pedal to split the signal and route it to two different destinations, selecting the cab type, size of the emulated cab, and level of each output all the while. If you use two input sources, both will be fed separately through their respective emulated cabinet pathways, maintaining stereo separation. Output B also offers the ability to send a dry signal to your stage amplifier when playing live, if desired. The CabDryVR utilizes a separately available 9 VDC external power supply to integrate into any existing pedalboard. Purchase of the CabDryVR includes the following items: a StompLock to protect the pedal’s controls from being accidentally changed, and a die-cut hook-and-loop pedalboard pad for fastening the pedal onto your board. - Features at a Glance
-
- Guitar- and bass-cabinet impulse responses loaded into a pedal enclosure
- 7 guitar and 7 bass cabinets that can be mixed and tuned (14 cabinets total)
- Dual inputs and outputs with separate cabinets on each
- Cabinet B features an analog dry output for connecting directly to an amp
- Output clip indicator LED
- Mono in/dual cabinet out capabilities
- Soft-click vacuum-style footswitch
- True-bypass circuitry preserves your tone when the pedal is not in use
- High-voltage operation for pristine signal quality
- Guitar Cabinets Provided
-
- Cab 1: Vintage American 2x12
- Cab 2: Vintage British 2x12
- Cab 3: British Green Slant 4x12
- Cab 4: British Straight 4x12
- Cab 5: Heavy American 4x12
- Cab 6: Smooth Custom 4x12
- Cab 7: Small Combo 1x8
- Bass Cabinets Provided
-
- Cab 1: Flexy 1x15
- Cab 2: Basic 1x15
- Cab 3: Big Blue 1x18
- Cab 4: AmeriTweed 4x10
- Cab 5: Gold Diamond 4x10
- Cab 6: Vintage Fridge 8x10
- Cab 7: Blonde Basement 2x12
UPC: 691991006425 In the Box DigiTech CabDryVR Dual Cabinet Simulator Pedal for Electric Guitar StompLock Die-Cut Hook-and-Loop Pedalboard Pad Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech CabDryVR Dual Cabinet Simulator Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigiTech CABDRYVR-U Specs | Audio I/O | 2 x 1/4" TS input, unbalanced
2 x 1/4" TS output, unbalanced | | Input Impedance | Effect on: >1 MOhm (stereo), >500 kOhms (mono)
Effect off: True hardwire bypass | | Output Impedance | Effect on: 1 kOhm
Effect off: True hardwire bypass | | Controls | CAB TYPE A knob
CAB TYPE B knob
SIZE/LEVEL knobs (concentrically stacked, effecting Cab A)
SIZE/LEVEL knobs (concentrically stacked, effecting Cab B) | | Switches | 1 x GUITAR/BASS toggle switch
1 x Soft click, Vacuum-style footswitch | | Power Requirements | 9 VDC external power supply (required) | | Power Consumption | 675 mW (< 75 mA at 9 VDC) | | Current Draw | 75 mA (typical at 9 VDC) | | Power Supply | PS0913DC-01 (available separately) | | Power Supply Output | 9 VDC 1.3 A | | Dimensions (L x W x H) | 4.4 x 2.7 x 2.0" / 11.2 x 6.7 x 5.1 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 4.6 x 3.2 x 2.3" |
